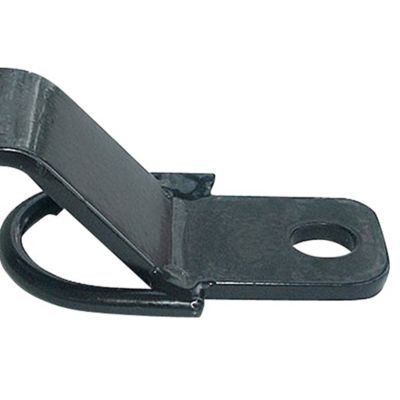

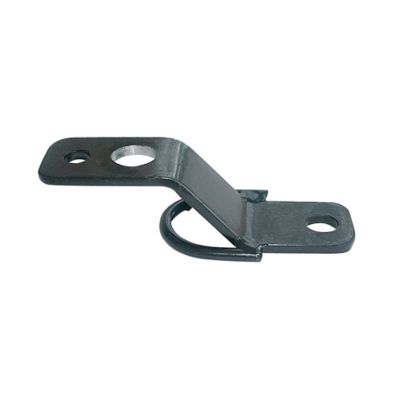

Ohio Steel 2 in. Receiver 3-Way ATV Hitch
Ohio Steel 2 in. Receiver 3-Way ATV Hitch
Item # 118335699
$39.99
Neighbor’s Club Members earn points with purchases.
$39.99
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.
This Ohio Steel 3-Way ATV Hitch attaches to any ATV, UTV or lawn tractor allowing three towing options - ball hitch, pin hitch or tow strap. This hitch can also raise or lower your hitch height by 2 in. by installing it upright or upside down on ATV's, zero turn mowers or lawn tractors equipped with a rear pin hitch receiver. Complete with a 2-year limited warranty.Trailer ball not included
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Three hitches in one: ball hitch (ball not included), pin hitch and tow strap
- Heavy-duty steel construction to provide a rugged ATV hitch for your towing needs
- Easy 1-bolt installation
- 2.5 in. x 2.75 in. x 8 in.
- ATV tow hitch has a 2-year limited warranty
- 2-Year limited warranty
| Brand | Ohio Steel |
|---|---|
| Country of Origin | Made in USA |
| Brand Compatibility | Universal |
| Features | Connects to hitch pin receiver hole |
| Hitch/Accessory Type | Hitches |
| Hitch Type | Other |
| Model Compatibility | Universal attachment to any product with a hitch pin receiver |
| Package Quantity | 1 |
| Primary Color | Black |
| Primary Material | Steel |
| Product Height | 3 in. |
| Product Length | 8 in. |
| Product Weight | 2 lb. |
| Product Width | 3 in. |
| Receiver Opening Size | |
| Warranty | 2 Year Limited |
| Manufacturer Part Number | 3W-HITCH |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 10 Questions
Newest questions
Q: What size is the hitch pin hole
2 months ago1 Answer
- A: Thank you for your question. The hitch pin hole is a standard 5/8 inch diameter.2 months agoHelpful?
Q: What is the actual height or width of the square part that goes into receiver.?
a year ago1 Answer
- A: This product attaches to a pin hitch with a bolt.a year agoHelpful?
Q: What is the diameter of the hole for the ball?
4 years ago1 Answer
- A: The diameter of this hole is .813 inches.4 years agoHelpful?
Q: Will this spin while backing up
4 years ago1 Answer
- A: This is a stationary hitch that attached to the back of an ATV. It does not spin.4 years agoHelpful?
Q: Will this work with a 2” ball.
4 years ago1 Answer
- A: Yes. A 2” ball can be connected to this product.4 years agoHelpful?
Q: How much weight can this hold at the hitch. I have your dump cart that I want to tow on my utv. The dump cart size is 20 cu ft.
5 years ago1 Answer
- A: While we do not have an actual tongue weight capacity for this hitch, it is designed to work with all Ohio Steel carts, including our 20 cu ft cart that has a weight capacity of 1500 lbs. This should hold true for any brand cart with a weight capacity up to 1500 lbs.5 years agoHelpful?
Q: what is diameter of bolt attaching to atv.
7 years ago1 Answer
- A: The size of this bolt is 3/4" diameter by 2" long.7 years agoHelpful?
Q: How thick is the steel plate where th ball mounts.? My garden cart cannot hook up to a regular truck hitch because of th thickness of a regular hitch,
8 years ago1 Answer
- A: The material of the hitch bracket is 3/8" thick with a 13/16" diameter hole for the threaded shank of a ball hitch. You will most likely need to purchase a ball hitch with a 3/4" threaded shank, which are sold at TSC stores.8 years agoHelpful?
Q: How many inches will it extend the tongue as I need more room since I have a drop rack on my atv. Also, is the tongue longer on the 12.5 cart vs the 10 cu. ft cart as it appears that it may be. Will the 12.5 cart multi hitch system fit a 1 7/8 ball?
9 years ago1 Answer
- A: Thanks for your question. The 3-Way ATV Hitch will extend the hitch by about 7 inches. The tongue on the 12.5 CF Hybrid Cart is longer than our standard hitch and the hitch will fit a 1-7/8" or 2" ball. If you have additional questions please call Ohio Steel customer service at (800) 652-2321 x212.9 years agoHelpful?
Q: How low will this make this hitch be? For Example I need to lower my hitch on my mower about 7 inches. Will this work. Thanks Chad
9 years ago1 Answer
- A: The 3WHITCH product lowers (or raises) the hitch by 2 inches.9 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 10 Questions
Newest questions
Q: What size is the hitch pin hole
2 months ago1 Answer
- A: Thank you for your question. The hitch pin hole is a standard 5/8 inch diameter.2 months agoHelpful?
Q: What is the actual height or width of the square part that goes into receiver.?
a year ago1 Answer
- A: This product attaches to a pin hitch with a bolt.a year agoHelpful?
Q: What is the diameter of the hole for the ball?
4 years ago1 Answer
- A: The diameter of this hole is .813 inches.4 years agoHelpful?
Q: Will this spin while backing up
4 years ago1 Answer
- A: This is a stationary hitch that attached to the back of an ATV. It does not spin.4 years agoHelpful?
Q: Will this work with a 2” ball.
4 years ago1 Answer
- A: Yes. A 2” ball can be connected to this product.4 years agoHelpful?
Q: How much weight can this hold at the hitch. I have your dump cart that I want to tow on my utv. The dump cart size is 20 cu ft.
5 years ago1 Answer
- A: While we do not have an actual tongue weight capacity for this hitch, it is designed to work with all Ohio Steel carts, including our 20 cu ft cart that has a weight capacity of 1500 lbs. This should hold true for any brand cart with a weight capacity up to 1500 lbs.5 years agoHelpful?
Q: what is diameter of bolt attaching to atv.
7 years ago1 Answer
- A: The size of this bolt is 3/4" diameter by 2" long.7 years agoHelpful?
Q: How thick is the steel plate where th ball mounts.? My garden cart cannot hook up to a regular truck hitch because of th thickness of a regular hitch,
8 years ago1 Answer
- A: The material of the hitch bracket is 3/8" thick with a 13/16" diameter hole for the threaded shank of a ball hitch. You will most likely need to purchase a ball hitch with a 3/4" threaded shank, which are sold at TSC stores.8 years agoHelpful?
Q: How many inches will it extend the tongue as I need more room since I have a drop rack on my atv. Also, is the tongue longer on the 12.5 cart vs the 10 cu. ft cart as it appears that it may be. Will the 12.5 cart multi hitch system fit a 1 7/8 ball?
9 years ago1 Answer
- A: Thanks for your question. The 3-Way ATV Hitch will extend the hitch by about 7 inches. The tongue on the 12.5 CF Hybrid Cart is longer than our standard hitch and the hitch will fit a 1-7/8" or 2" ball. If you have additional questions please call Ohio Steel customer service at (800) 652-2321 x212.9 years agoHelpful?
Q: How low will this make this hitch be? For Example I need to lower my hitch on my mower about 7 inches. Will this work. Thanks Chad
9 years ago1 Answer
- A: The 3WHITCH product lowers (or raises) the hitch by 2 inches.9 years agoHelpful?
