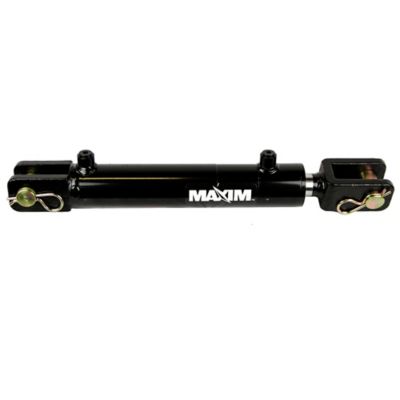

Maxim 4 in. Bore x 10 in. Stroke WC Welded Cylinder, 2 in. Rod Diameter
5.03 Reviews
Item # 1307755
$279.99
or
or
Neighbor’s Club Members earn points with purchases.
5.03 Reviews
Item # 1307755
$279.99
or
or
$47/mo.† suggested payments with 6 Months Financing or earn $13 in Rewards+ on this purchase.Apply now
This item is available online only
Delivery to
37027
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.
The Maxim 4 in. Bore x 10 in. Stroke WC Welded Cylinder is clevis-mounted and exceeds the highest standards. You can rely on this hydraulic cylinder; it's been designed for demanding applications and built to ensure maximum reliability and performance. This welded cylinder is intended to be used in double-acting applications, and it has cast female clevises with pins and clips included as end mounts.
- Welded hydraulic cylinder intended to be used in double-acting applications
- Piston: ductile iron ASTM A536 65-45-12 for excellent life
- Piston lock nut: grade 8, high-tensile zinc-plated
- Gland: ductile iron ASTM A536 65-45-12
- Tube: high-tensile cold drawn tube, precision-honed for extended seal life
- Tube seal: nitrile O-ring with polytemp hytrel back-up
- Rod: high-tensile ground and polished hard chrome-plated rod
- Rod seal: standard PolyPak with B-lip design (polyurethane U-cup with nitrile O-ring expander)
- Wiper: polyurethane

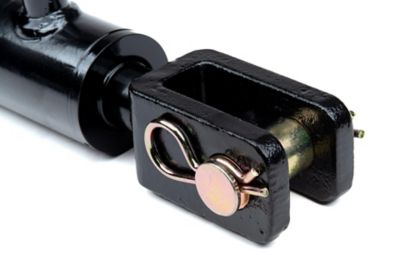

- End mounts: cast female clevises with pins and clips included
- Pin and pin clip: high-tensile zinc-plated steel
- Piston ID seal: O-ring
- Piston OD seal: Hallite 755 piston seal
- Ports: SAE O-rings
- Painted black for a simple and effective hydraulic cylinder design
- Measures 20.25 in. retracted and 30.25 in. extended
- Column load: 37,690 lb.
- Pin diameter of 1 in. and rod diameter of 2 in.
- 1 year warranty
- Maximum PSI: 3,000 PSI
| Brand | Maxim |
|---|---|
| Country of Origin | Imported |
| Bore Diameter | 4 in. |
| Brand Compatibility | Universal |
| Compatibility | Universal |
| Extended Length | 10 in. |
| Hydraulic Cylinder Type | Welded |
| Maximum Operating Pressure | 3,000 PSI |
| Maximum Weight Capacity | 37,690 lb. |
| Model Compatibility | Universal |
| Package Quantity | 1 |
| Pin Diameter | 1 in. |
| Port Size | SAE 8 |
| Primary Material | Steel |
| Product Height | 0 N/A |
| Product Length | 0 N/A |
| Product Weight | 47 lb. |
| Product Width | 0 N/A |
| Retracted Length | 20.25 in. |
| Rod Diameter | 2 in. |
| Single/Double Acting | Double acting |
| Stroke Distance | 10 in. |
| Warranty | 1 Year |
| Manufacturer Part Number | 288456 |
No questions have been asked about this product.
No questions have been asked about this product.
Similar Items
-
Top Rated
-
Top Rated
-
Top Rated
-
Top Rated
-
Top Rated
-
Top Rated
-
Top Rated
-
Top Rated
-
Top Rated
-
Top Rated
-
Top Rated
-
Top Rated
Items You May Like
-
Top Rated
-
-
-
Top Rated
-
-
Top Rated
-
-
-
Customers Also Bought
-
Top Rated
-
Top Rated
-
Top Rated
-
Top Rated
-
Top Rated
-
Top Rated
-
Top Rated
-
Top Rated
-
Top Rated
-
Top Rated
-
Top Rated
-
Top Rated
Reviews
- customer service
- returns
- width
1 to 2 of 3 Reviews .
1 – 2 of 3 Reviews
Most Recent

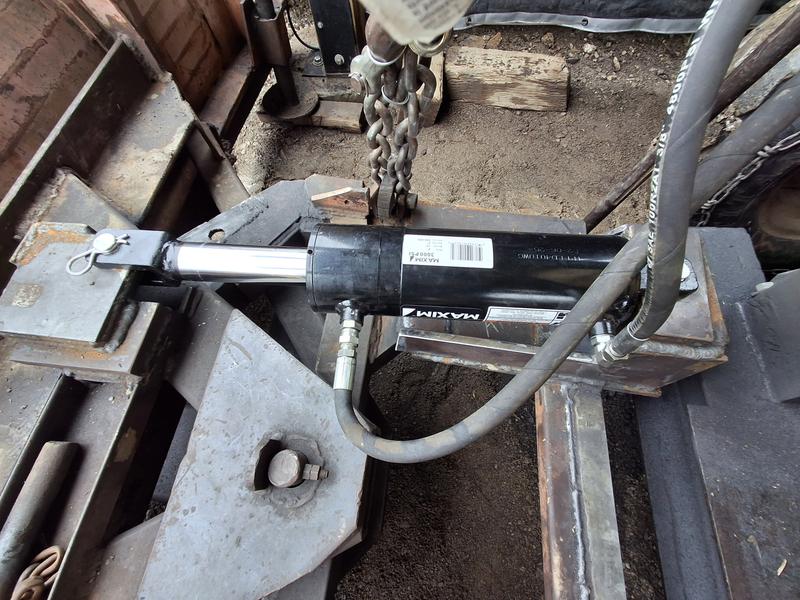

Review 1
5 out of 5 stars.
Excellent product
3 months ago
Exactly what i needed for the job it's required to do.
Yes, I recommend this product.
Alex
Alabama
Review 1
5 out of 5 stars.
Wide selection and good customer service
3 years ago
A wide variety of options to choose from. To double check I called the customer service line, and they were extremely helpful. I am a returning customer, and will be back again.
Yes, I recommend this product.
Originally posted on baileyhydraulics.com
