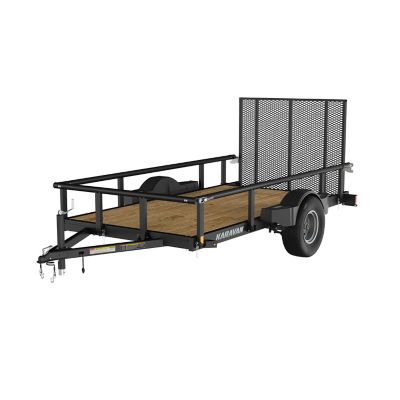

Karavan 5.5 ft. x 11 ft. Dovetail Utility Trailer, 2,120 lb. Max Capacity
Karavan 5.5 ft. x 11 ft. Dovetail Utility Trailer, 2,120 lb. Max Capacity
Item # 1645910
$2,999.99
or
or
Notice:
This Item cannot be shipped to CA, CO, ID, KS, LA, MD, NV, PA, UT.
Neighbor’s Club Members earn points with purchases.
Karavan 5.5 ft. x 11 ft. Dovetail Utility Trailer, 2,120 lb. Max Capacity
Item # 1645910
$2,999.99
or
or
$59/mo.† for 48 months at 0% APR or earn $139 in Rewards+ on this purchase.
Valid 9/21/2026 - 9/27/2026
Valid 9/21/2026 - 9/27/2026
Out of stock at or near
Grassland (franklin) TN
This is a Big & Bulky item.
This item is not available
Search Stores
Temporarily unavailable
Notice:
This Item cannot be shipped to CA, CO, ID, KS, LA, MD, NV, PA, UT.Neighbor’s Club Members earn points with purchases.
This Karavan 5.5 ft. x 11 ft. Dovetail Utility Trailer is suited for a large range of applications and equipped with patented fold-down rails that allow for loading via forklift. Our Dove Tail ramp prevents scraping while loading and unloading this utility trailer. Road performance is excellent via Karavan's SwayControl and QuietTow engineering. Reliability is built in to this utility trailer with smart lighting and wheel bearing systems. This trailer looks good too, with a powder coat finish as attractive as it is durable.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on trailer? Check out our tips for buying a trailer in the product documents section.
- Dovetail design on the trailer reduces the load angle
- Patented fold-down rails allows for loading via forklift
- 17 step powder coated finish offers long-lasting protection vs. spray technique used on most trailers
- QuietTow componentry means less noise via lockable tensioner latches, nylon bushing springs
- Expanded metal ramp to support the loading of heavy equipment
- Treated 2 x 6 in. deck boards protect against decay and termites
- Cables coil out of the way when not in use
- High reliability short free lighting system is fully grounded and all plug (no Scotchloks); wiring is concealed
- Sure lube wheel bearing grease system allows quick and clean greasing for easy maintenance
- Welded tubular steel frame and A-frame tongue for better handling
- Karavan Trailers, Inc. warrants each new Karavan Trailers trailer to be free from defects in materials and workmanship for a period of one (1) year from the date of purchase or two (2) years from date of manufacture
- Karavan Trailers shall repair or replace, without charge, any parts found to be defective because of imperfect workmanship or materials, within a reasonable time after the trailer is returned at purchaser's expense to any Karavan Trailers authorized distributor or dealer
| Brand | Karavan |
|---|---|
| Country of Origin | Made in USA |
| Approximate Trailer Size (W x L) ft. | 5.5 x 11 |
| Axle Size | 1 ea |
| Empty Weight | 875 lb |
| Frame Material | Steel |
| Gate Length | 11 ft |
| Gate Width | 49 in. |
| Gross Vehicle Weight Rating | 2,990 lb. |
| Hitch Type | 2-Ball |
| Trailer Load Capacity lb. | 2000 - 3999 |
| Number of Axles | 1 |
| Number Of Ramps | 1 |
| Tire Size | 215/75D14 |
| Tongue Length | 48 in. |
| Tongue Type | A-Frame |
| Trailer Bed Length | 11 ft |
| Trailer Bed Width | 5.5 ft |
| Trailer Features | Wood Floor, Powder Coated, Jack Included, Ramp Included |
| Trailer Max Load Capacity lb. (Carrying Capacity) | 2120 |
| Warranty | Karavan Trailers, Inc. warrants each new Karavan Trailers trailer to be free from defects in materials and workmanship for a period of one (1) year from the date of purchase or two (2) years from date of manufacture. |
| Manufacturer Part Number | 475-00001-BT-FA |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 18 Questions
Newest questions
Q: does the back gate come off easily?
3 months ago1 Answer
- A: Hi Richard! Yes, the ramp can easily be removed.3 months agoHelpful?
Q: How do I get one. To Aberdeen Md store
5 months ago1 Answer
- A: Hi Neighbor! This product is only available for purchase at store locations. You can order it on the website for pickup if the Aberdeen, MD store has it in stock, or purchase it directly in-store. Note that this item cannot be shipped to Maryland.5 months agoHelpful?
Q: How can I order one of these new? My local TSC wasn’t very helpful, other than telling me they typically ship trailers once a week. If I wanted one delivered instead of buying one of the ones already at the store, how would I do that?
6 months ago1 Answer
- A: Hi Bailey! At this time this product is only available for purchase from one of our store locations. They may be ordered on our website for pickup if the store has one in stock, or purchased directly in store.6 months agoHelpful?
Q: what is the electrical hook up type
a year ago1 Answer
- A: Hi Neighbor! This trailer has a 2-prong flat (or 3-prong) connector for the electrical hookup.a year agoHelpful?
Q: I live in Indiana and this trailer is not in stock at any of the stores. How can I order one?
a year ago1 Answer
- A: Please reach out to your local TSC store to see if they are able to place a Raincheck order for this item.a year agoHelpful?
Q: Where is this trailer available at… can’t locate one anywhere near me… can they ship it to TSC in Everett, Pa?
2 years ago1 Answer
- A: This Item cannot be shipped to AL, AZ, AR, CA, CO, DE, HI, IL, KS, LA, ME, MD, MS, MO, MT, NV, NJ, NM, OK, OR, PA, SD, TX, UT, WV, WY2 years agoHelpful?
Q: What is the length from the coupler to the wheel axle? What is the length of the A Frame between coupler and front rail of trailer?
2 years ago1 Answer
- A: Please see the manufacture's page for a full diagram of measurements: https://www.karavantrailers.com/product/5-5x11ft-steel-utility-trailer2 years agoHelpful?
Q: Where can i find this trailer in florida
2 years ago1 Answer
- A: The best way to find this product near you is by going to the product page and entering your zip code to find your nearest store where this is in stock. For further assistance, please reach out to our Customer Solutions team at 1-877-718-6750.2 years agoHelpful?
Q: 6x10 utility trailer
2 years ago1 Answer
- A: Please click the "Shop all Karavan" link for a selection of all of our available trailers.2 years agoHelpful?
Q: Is this trailer available in the north east?
2 years ago1 Answer
- A: The best way to check on product availability in your area is to enter your zip code into the "Check Stores" section of the product page.2 years agoHelpful?
1 - 10 of 18 Questions
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 18 Questions
Newest questions
Q: does the back gate come off easily?
3 months ago1 Answer
- A: Hi Richard! Yes, the ramp can easily be removed.3 months agoHelpful?
Q: How do I get one. To Aberdeen Md store
5 months ago1 Answer
- A: Hi Neighbor! This product is only available for purchase at store locations. You can order it on the website for pickup if the Aberdeen, MD store has it in stock, or purchase it directly in-store. Note that this item cannot be shipped to Maryland.5 months agoHelpful?
Q: How can I order one of these new? My local TSC wasn’t very helpful, other than telling me they typically ship trailers once a week. If I wanted one delivered instead of buying one of the ones already at the store, how would I do that?
6 months ago1 Answer
- A: Hi Bailey! At this time this product is only available for purchase from one of our store locations. They may be ordered on our website for pickup if the store has one in stock, or purchased directly in store.6 months agoHelpful?
Q: what is the electrical hook up type
a year ago1 Answer
- A: Hi Neighbor! This trailer has a 2-prong flat (or 3-prong) connector for the electrical hookup.a year agoHelpful?
Q: I live in Indiana and this trailer is not in stock at any of the stores. How can I order one?
a year ago1 Answer
- A: Please reach out to your local TSC store to see if they are able to place a Raincheck order for this item.a year agoHelpful?
Q: Where is this trailer available at… can’t locate one anywhere near me… can they ship it to TSC in Everett, Pa?
2 years ago1 Answer
- A: This Item cannot be shipped to AL, AZ, AR, CA, CO, DE, HI, IL, KS, LA, ME, MD, MS, MO, MT, NV, NJ, NM, OK, OR, PA, SD, TX, UT, WV, WY2 years agoHelpful?
Q: What is the length from the coupler to the wheel axle? What is the length of the A Frame between coupler and front rail of trailer?
2 years ago1 Answer
- A: Please see the manufacture's page for a full diagram of measurements: https://www.karavantrailers.com/product/5-5x11ft-steel-utility-trailer2 years agoHelpful?
Q: Where can i find this trailer in florida
2 years ago1 Answer
- A: The best way to find this product near you is by going to the product page and entering your zip code to find your nearest store where this is in stock. For further assistance, please reach out to our Customer Solutions team at 1-877-718-6750.2 years agoHelpful?
Q: 6x10 utility trailer
2 years ago1 Answer
- A: Please click the "Shop all Karavan" link for a selection of all of our available trailers.2 years agoHelpful?
Q: Is this trailer available in the north east?
2 years ago1 Answer
- A: The best way to check on product availability in your area is to enter your zip code into the "Check Stores" section of the product page.2 years agoHelpful?
1 - 10 of 18 Questions
Similar Items
-
Top Rated
-
-
-
-
-
-
-
-
Top Rated
-
-
-
Items You May Like
Reviews
- price
- satisfaction
- purchase
- quality
- sturdy
- pockets
- size
- durability
1 to 4 of 81 Reviews .
1 – 4 of 81 Reviews
Most Recent
Atlanta, GA
Review 1
5 out of 5 stars.
Karavan 5,5’ x 11 Utility Traiker
2 years ago
Great trailer! Tows well. The fold down sides provide excellent versatility. Well built, welds are solid. Pre drilled holes allowed for addition of “D” rings to create more tie down locations. Great size as it is not too wide and has proper length for two ATVs or a UTV. 2,990 GVTW is perfect behind most vehicles. Glad we found this one!
Yes, I recommend this product.
saegertown pa
Reviews 2
4 out of 5 stars.
did what I needed and very well built
2 years ago
this is a great trailer. if i have any complaint it would be the pines for the sides can be difficult and the lack of tie down points. but overall a nice sturdy trailer
Yes, I recommend this product.
Kingston TN
Reviews 2
4 out of 5 stars.
10’ trailer
2 years ago
Trailer was great and people at store were really helpful but TS does not carry a spare the same size as is on the trailer.
Yes, I recommend this product.
Arkansas City, Ks
Review 1
4 out of 5 stars.
Great customer service
2 years ago
Couldn't find this trailer locally so I had to travel 1 hr away. Before I headed to the West Wichita TSC, I called and spoke with both Mike and Clayton on two separate occasions to confirm a few things and they were patient and answered all my questions. When I arrived I knew there were two trailers of the specific size I was looking for along with build date. It was up to me to choose the cream of the crop. During this time Hayden was there to help me jockey around trailers so I could get a better look. One trailer was banged up pretty good from shipping I'd assume and the other had pretty big gaps in the decking. When checking out Anita was very helpful on all my questions and Natalee had the title ready to go by the time I was checked out! Alley also assisted during this time and it was a seamless transaction with excellent customer service. Major thanks to Hayden for helping me in the parking lot in getting the trailer ready to haul home.
Overall the trailer is a well built unit. Welds are on point and gate is a weak for its wt rating. Karavan could have used more deck boards and need to figure out a better way to ship their product. Nearly all the trailers had some form of scratching or dents and bends. For the $ I feel this trailer will serve it's purpose and will recommend them to anyone looking for a quality utility trailer.
Yes, I recommend this product.
