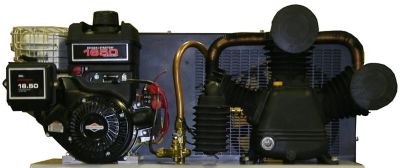

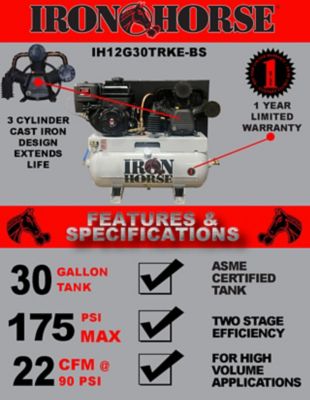

The Iron Horse 2-Stage Truck Mount Air Compressor has a 30 gal. ASME registered tank and a 12 HP Briggs & Stratton electric start motor. The engine idle control allows the air compressor to reduce operating cost and wear to extend its life. The V-style design of the truck mount air compressor helps limit vibration and improve cooling.
Specification | Description |
---|---|
Brand | Iron Horse |
Country of Origin | Made in USA |
Air Delivery SCFM At 90 PSI | 22 CFM |
Airflow Volume | 22 CFM @ 90 PSI |
Air Outlet Size | 3/4 in. |
Compressor Horsepower | 12 HP |
Compressor Maximum PSI | 175 PSI |
Compressor Tank Capacity | 30 gal |
Compressor Type | Horizontal |
Compressor Voltage | 12V |
Drain System | Manual |
Drive Type | Belt |
Features | 14HP B&S Electric Start Motor, ASME Registered tank, Easy view oil sight gauge, Sturdy metal belt guard, Heavy duty 3/4 in. ball valve included |
Number Of Power Speeds | Single |
Number Of Wheels | 0 |
Power Type | Gas |
Primary Color | Gray |
Primary Material | Steel |

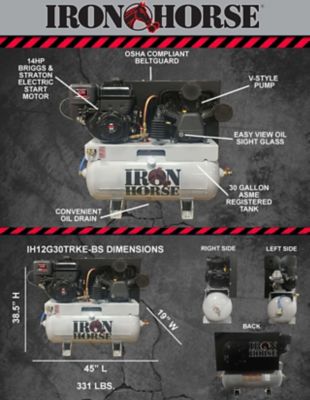

Product Height | 38.5 in. |
Product Length | 45 in. |
Product Weight | 331 lb. |
Product Width | 19 in. |
Pump Material | Cast iron |
Tank Fill Time | 108 seconds 90 PSI |
Tank Orientation | Horizontal |
Warranty | 1 Year |
Manufacturer Part Number | IH12G30TRKE-BS |
