Grizzly G0544 20 in. 5 HP Pro Spiral Cutterhead Pl
Item # 229395199
Neighbor’s Club Members earn points with purchases.
This item is available online only
Delivering to
37027
Neighbor’s Club Members earn points with purchases.

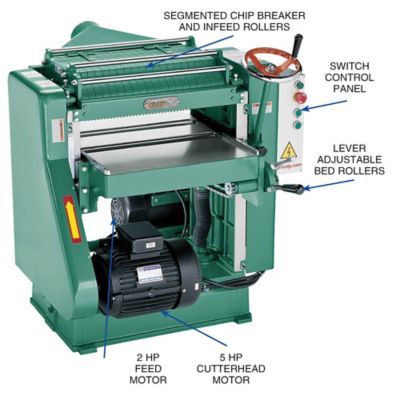

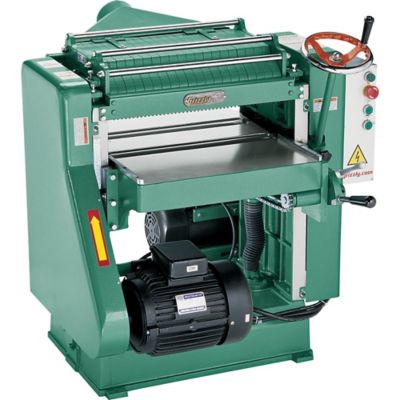

G0544 20" 5 HP Spiral Cutterhead PlanerFor maximum power and performance in a 20" planer, our heavy-duty professional planer can't be beat. Features like a segmented chip breaker, variable feed speed and lever-adjustable bed rollers are expensive options on most planers of this size. Not with Grizzly!
Adjustable bed rollers and 5" dust port are standard on this already deluxe machine. From the precision-ground cast-iron table to the hefty handwheels and conveniently located, magnetic switch with thermal overload protection, you know you're dealing with the best when you get your hands on a planer like this.
Truly an industrial machine!Like all Grizzly planers, the G0544 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects. (Consumables are not covered by the warranty.)
The manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your machine. The Customer Service and Technical Support Teams are also U.S.-based. Parts for this machine may be available online and shipped from the parts warehouse in Springfield, MO.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on tools? Check out our guide on essential woodworking power tools in the product documents section.
- Main motor: 5 HP, 220-Volt, single-phase, 25 Amp
- Feed motor: 2 HP, 12 Amp
- Maximum stock width: 20 in.
- Maximum stock thickness: 7 in.
- Minimum stock thickness: 1/4 in.
- Minimum stock length: 8 in.
- Maximum cutting depth: 1/8 in.
- Cutterhead diameter: 3-1/8 in.

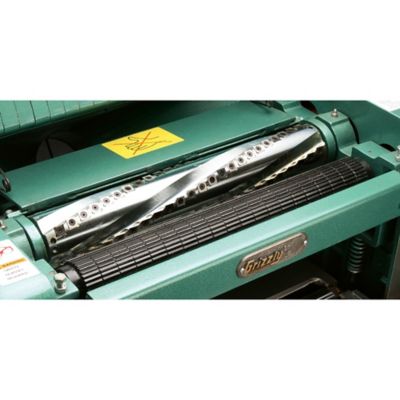

- Cutterhead type: 4-row spiral with 96 inserts
- Insert size and type: 14 mm x 14 mm x 2 mm, indexable carbide
