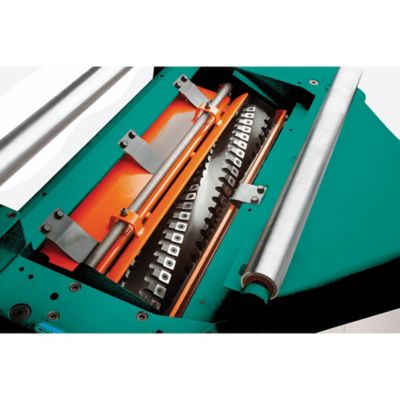

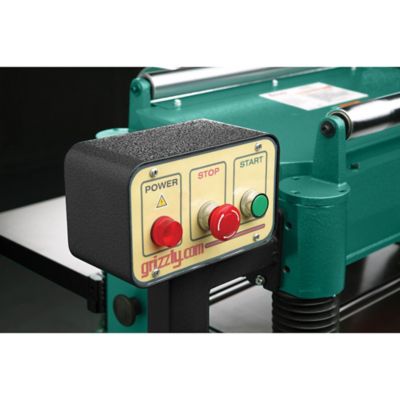

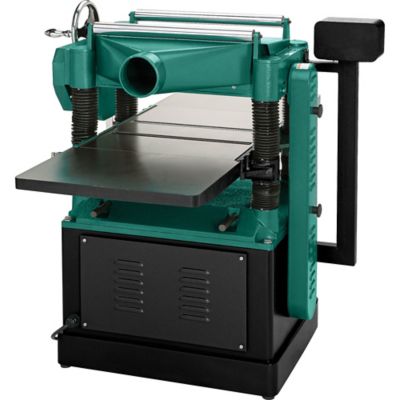

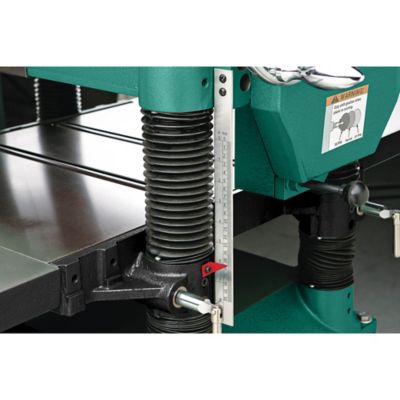

This planer is designed for heavy-duty use and can process large volumes of wood quickly and accurately. The inserts on the 4-row helical cutterhead sit at a slight angle to the workpiece for smooth shearing cuts, minimized tearout, a smoother finish, and operating at lower noise levels. The 92 indexable carbide inserts can each be rotated three times to expose new, sharp cutting edges. The solid cast-iron, extension tables make the total planer bed length just short of 5' long! They are precision-ground to a mirror-like finish for ultra-smooth lumber feeding. The adjustable bed rollers keep the planer feeding smoothly. The feed rollers are driven by a two-speed gearbox at 16 FPM or 28 FPM. The G1033X incorporates a safety magnetic switch for overload and power failure protection. The power controls are mounted on an attached pedestal for easy access. The power is transferred from the 5 HP motor to the cutterhead by a triple v-belt design. This ensures maximum power connection between the cutterhead and the feed drive. The G1033X manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. Note on replacement inserts: For models manufactured July 2007 and later, use H9893 (92) 15mm x 15mm x 2.5mm replacement inserts. For models manufactured June 2007 and earlier, use H7319 (96) 14mm x 14mm x 2.0mm replacement inserts.The manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your machine. The Customer Service and Technical Support Teams are also U.S.-based. Parts for this machine may be available online and shipped from the parts warehouse in Springfield, MO.

For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.

Looking for more information on tools? Check out our guide on essential woodworking power tools in the product documents section.
