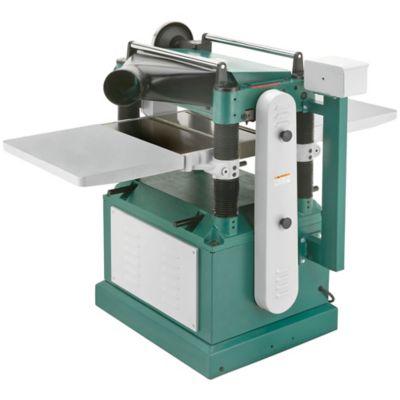

Grizzly G0454Z-20 in. 5 HP Planer with Spiral Cutter, G0454Z
Grizzly G0454Z-20 in. 5 HP Planer with Spiral Cutter, G0454Z
Item # 229392999
$3399.99
or
or
Neighbor’s Club Members earn points with purchases.
$3399.99
or
or
$101/mo.† for 36 months totaling $3636 at 3.99% APR or earn $169 in Rewards+ on this purchase.
This item is available online only
Delivery to
For delivery, this item requires a Big & Bulky handling fee.Learn more
Neighbor’s Club Members earn points with purchases.
Solid cast iron and steel construction and large planning capacity make this planer a true heavy-weight. However, with a foot-operated caster system, you won't need to manhandle this planer around your shop. You'll also appreciate the 55 in. to 1/2 in. L The manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your machine. The Customer Service and Technical Support Teams are also U.S.-based. Parts for this machine may be available online and shipped from the parts warehouse in Springfield, MO.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on tools? Check out our guide on essential woodworking power tools in the product documents section.

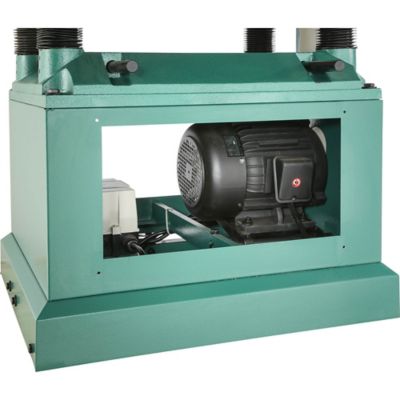

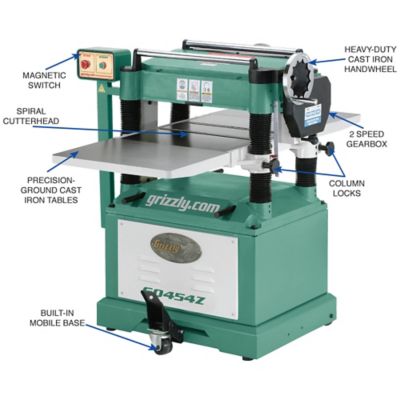

- Built-in mobile base
- Precision-ground cast-iron table and extension wings
- Board return rollers
- Rubber-coated outfeed roller
- Adjustable bed rollers
- Magnetic switch with thermal overload protection
- 4-column support with table locks
- 2-speed feed rate
| Brand | Grizzly |
|---|---|
| Country of Origin | Imported |
| Amperage | 25 A |
| Cut Through | Wood |
| Features | No additional features |
| Horsepower | 5 hp |
| Housing Material | Cast iron |
| Maximum Board Thickness | 8 in. |
| Maximum Cut Depth | 0.125 in. |
| Maximum Cuts Per Minute | 20000 CPM |
| Maximum Cut Width | 20 in. |
| Maximum Speed | 3450 RPM |
| Minimum Board Thickness | 0.1875 in. |
| Minimum Cut Depth | 0.1875 in. |
| Minimum Speed | 3450 RPM |
| Number Of Blades | 98 |
| Number of Speeds | 1 |
| Product Type | Planer |
| Portable or Stationary | Stationary |
| Power Type | Electric |
| Product Height | 45 in. |
| Product Length | 55 in. |
| Product Weight | 783 lb. |
| Product Width | 20 in. |
| Table Length | 25.75 in. |
| Table Width | 20 in. |
| Variable Speed | Single Speed |
| Voltage | 240 V |
| Warranty | 1 |
| Manufacturer Part Number | G0454Z |
No questions have been asked about this product.
No questions have been asked about this product.
Q&As
No questions have been asked about this product.
No questions have been asked about this product.
Similar Items
-
Top Rated
-
Top Rated
-
Top Rated
-
-
-
-
-
-
-
Top Rated
-
-
Items You May Like
-
-
-
Top Rated
-
-
-
-
Top Rated
-
Top Rated
-
Top Rated
-
Top Rated
-
-
Top Rated
Customers Also Bought
-
Top Rated
-
-
Top Rated
-
Top Rated
-
-
-
Top Rated
-
-
-
-
-
Reviews
Summary of Reviews

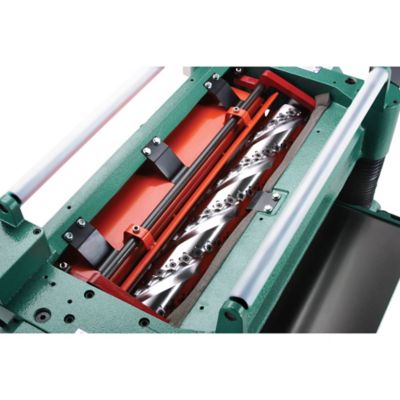

This planer delivers excellent performance, with users praising its smooth, quiet operation, superior dust collection, and ability to handle a wide range of materials without issues. The spiral cutterhead provides a superior finish compared to straight-blade planers. However, some users reported iss...
- English
- German
- French
- Spanish
- Portuguese
- Italian
- Korean
- Chinese
- Japanese
- Arabic
Customer Images and Videos
- satisfaction
- noise level
- purchase
- wait time
- price
- setup
- performance
- ripping
1 to 4 of 57 Reviews .
1 – 4 of 57 Reviews
Most Recent
Ironman56
Indiana
Review 1
5 out of 5 stars.
Perfect
a month ago
I bought this in March and only had time to use it a few times, but i put it together and did very little adjusting on it and it put out perfect lumber. Once you get used to it I don't think I could have made a better decision. I will add that the first machine they sent was damaged in shipment , took pictures called Grizzly and with no hassel it was replaced.
Yes, I recommend this product.
Originally posted on grizzly.com
Response from grizzly.com:
a month ago
Customer Experience Team
Thank you for the 5-star review of your G0454Z planer! We’re glad to hear it’s delivering excellent results and was easy to set up with minimal adjustments. We also appreciate you recognizing our team’s quick support in resolving the shipping issue. Thanks for sharing your experience!
LckyWlf
Phoenix AZ
Review 1
1 out of 5 stars.
Read before purchase
4 months ago
All I’m saying is be cautious. I saw a lot of great reviews so I went for this planer. Straight out of the box it was tripping the breaker. Went “under the hood” and noticed the start capacitor was bad. They sent me a new one and still the same issue. As it approached full power it would trip. I tried to check the centrifugal switch but the fan is mounted so tight to the motor I can’t access it. Now they want me to pull the motor off, pay or spend the time building a crate to crate it, and send it back. I’ve already spent countless hours trying to trouble shoot fixing their faulty machine, now I need to spend even more time getting the motor out so they can see what’s going on. My time is very valuable to me and this seems to be a case of “me paying them so that I can wash the car”. They sent me a faulty machine and want me to do the work fixing it. I was initially told that if there was something wrong with the machine, they would come pick it up and repair or replace. But this all just means more time that my shop doesn’t have a planer. I’m mostly happy with my other grizzly products but this one has been an absolute nightmare (especially due to the size of it). So it’s more a matter of luck when choosing this machine apparently so again I’d be cautious.
No, I do not recommend this product.
Originally posted on grizzly.com
Response from grizzly.com:
4 months ago
Customer Experience Team
We’re sorry to hear about your experience. While our Product Support team works hard to resolve issues as efficiently as possible, we understand how disappointing it is when a repair process becomes time‑consuming and impacts your ability to work. Your feedback is important, and we recognize that your time is valuable. We appreciate your continued support of Grizzly products and regret that this particular machine did not meet expectations. We would like the opportunity to review your case further and see if there’s a better path forward to minimize additional downtime. Please reach out to our Product Support team directly so we can assist you further. Thank you for taking the time to share your experience, and we look forward to getting this resolved as quickly as possible.
Thecabman
Madras, Oregon
Review 1
5 out of 5 stars.
Amazing machine!
5 months ago
I have a smaller cabinet shop and only had a 15'' Grizzly Planer before moving up to the 20". You cannot go wrong buying either the 15" or the 20" with the spiral cutterheads! The 20" Grizzly planer w/ spiral cutterhead is a workhorse and will make Hickory seem like you are cutting butter! Great value for your money!
Yes, I recommend this product.
Originally posted on grizzly.com
Response from grizzly.com:
5 months ago
Customer Experience Team
We’re thrilled to hear that upgrading planers has been a great move for your shop. Both models are solid choices, and it’s great the spiral cutterhead is giving you smooth performance. Thank you for sharing your experience, and we look forward to serving you again!
Anonymous
Review 1
4 out of 5 stars.
Allen Artisan Design
6 months ago
planer works well but the roller with the foot pedal slam's down out of no where a lot when you are pushing it, also one of the knobs were broke from the factories. machine functions very well. I am happy with it.
Yes, I recommend this product.
Originally posted on grizzly.com
Response from grizzly.com:
6 months ago
Customer Experience Team
We're glad to hear that the planer is performing well and you’re happy with it, but we’re sorry to hear about the issue with the roller and the knob. Please feel free to reach out to our Customer Service team, we’d be happy to assist you further. Thank you for taking the time to share your feedback, and we appreciate your support!
