Grizzly G9860Zx-12 in. x 80 in. Z Series Jointer with

4.73 Reviews

Item # 229413799

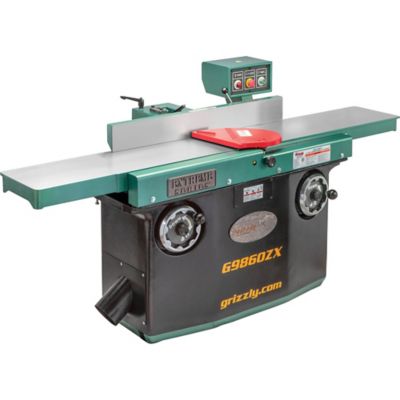

Image showing  G9860Zx-12 in. x 80 in. Z Series Jointer with

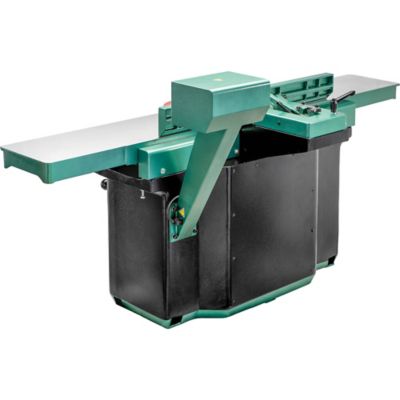

Image showing  G9860Zx-12 in. x 80 in. Z Series Jointer with
Image showing  G9860Zx-12 in. x 80 in. Z Series Jointer with
Image showing  G9860Zx-12 in. x 80 in. Z Series Jointer with
$7,025.00
See Price at Checkout

Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

Grizzly G9860Zx-12 in. x 80 in. Z Series Jointer with

4.73 Reviews

Item # 229413799

Image showing  G9860Zx-12 in. x 80 in. Z Series Jointer with
Image showing  G9860Zx-12 in. x 80 in. Z Series Jointer with
Image showing  G9860Zx-12 in. x 80 in. Z Series Jointer with
Image showing  G9860Zx-12 in. x 80 in. Z Series Jointer with
$7025.00
See Price at Checkout

This item is available online only

Delivering to

37027


Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

If you're looking to spend a little more on a high-end jointer, you'll certainly get your money's worth with the G9860ZX 12" x 80" Z Series Jointer. This professional jointer is loaded with industrial features, such as precision-ground cast-iron parallelogram table adjustment, twin V-belt drive and a heavy-duty cast-iron base with noise dampening system. For the ultimate in precise table height adjustments, the close tolerance, precision-ground cast-iron infeed and outfeed tables are effortless adjusted through the handwheel controls. The G9860ZX combines a powerful 3 HP motor with a spiral cutterhead for unmatched finish and long-lasting cutting-edge durability compared to a machine with straight knives. No need to sharpen the blades every time they get dull or nicked. The 84 indexable carbide inserts can be rotated up to 3 times for a new sharp edge. Lastly, a jointer this size can save additional time and money by transforming unusable "cupped" lumber into perfectly flat stock.The manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your machine. The Customer Service and Technical Support Teams are also U.S.-based. Parts for this machine may be available online and shipped from the parts warehouse in Springfield, MO.

For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.

  • Motor: 3 HP, 220V, single-phase, 16A
  • Maximum width of cut: 11-13/16"
  • Maximum depth of cut: 5/16"
  • Cutterhead diameter: 4"

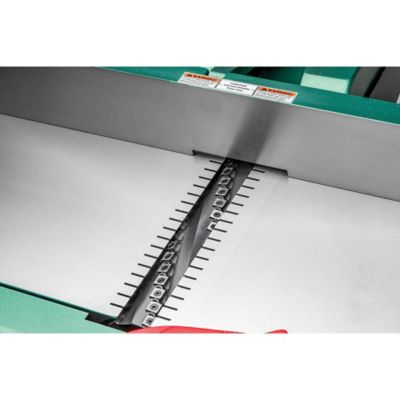

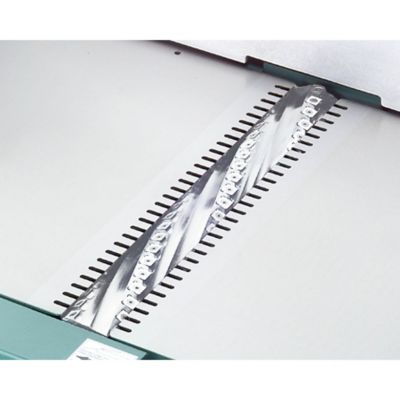

  • Cutterhead type: 6-row spiral with 84 inserts
  • Insert size and type: 14 x 14 x 2mm indexable carbide
  • Cutterhead speed: 5900 RPM
  • Table size: 12-1/2" x 80"
  • Fence size: 39-1/4" L x 4-3/4" H
  • Minimum stock length: 14"

Similar Items

  1. Top Rated
  2. Top Rated
  3. Top Rated
  4. Top Rated
  5. Top Rated
  6. Top Rated

Items You May Like

Customers Also Bought

  1. Top Rated
  2. Top Rated
  3. Top Rated
  4. Top Rated
  5. Top Rated
  6. Top Rated
  7. Top Rated
  8. Top Rated

Reviews

Rating Snapshot

Select a row below to filter reviews.
2 reviews with 5 stars.
1 review with 4 stars.
0 reviews with 3 stars.
0 reviews with 2 stars.
0 reviews with 1 star.

Overall Rating

4.7

Review this Product

Select to rate the item with 1 star. This action will open submission form.
Select to rate the item with 2 stars. This action will open submission form.
Select to rate the item with 3 stars. This action will open submission form.
Select to rate the item with 4 stars. This action will open submission form.
Select to rate the item with 5 stars. This action will open submission form.
Adding a review will require a valid email for verification
    • cutting
    • purchase
    • noise level
    • design
    • guards
    • heavy-duty
    • installation
    • light
    Review 1

    Almost a great jointer!

    4 years ago
    Bought the G9860ZX in April of 2021 and it finally arrived on the last working day of May 2021. 12" jointer has been on my wishlist for a long time and it is a much needed upgrade from the older 8" jointer. Lifted it off pallet and onto two heavy duty furniture movers. This bad boy is extermely heavy and one really should have several buddies help. Nonetheless, my ignorance and pride are impatient creatures and I was able accomplished the task solo. The fence installation was extermely easy. Except for replacing the electrical cord, everything on the setup was smooth. The short cord is the one low point for this machine considering the amount paid. Grizzly should have included a 5 to 6 foot cord. The factory installed cord as it utterly unusable. It is so short, that it wouldn't even reach the shop floor. Not even Tyrion Lannister would have mercy for this wee little thing. With the electrical cord issue solved, I plugged it in for first cuts. It is considerable quieter that the old 8" jointer it replaced. Started by face planing a 11" wide blank of English Walnut. What a beautiful job it did! Then edge jointed Beech, Maple, Lyptus, and Thermo-Treated Poplar. Each board came out perfect and smooth! Two minor issues I discovered when jointing my test timbers. 1st, the cutterhead guard needed to be raised up 1/16" of an inch. The carbide knifes sliced off a little snipe, about 1/64" from the guard, It's alumium and shaved it off effortlessly with no damage to the carbide inserts. I had to drop in two shims for the fix. 2nd issue with the cutterhead guard, is that I had to help it out swing out of the way when edge jointing two of the boards. I moved the fence over at different test positions along the 12" cutterhead. It pinched and bound the material agianist the fence when more of the cutterhead is exposed. The greater cutterhead span somehow prevents the cutterhead guard from pivoting out of the way and allowing the board to traverse. Other than those issues, it is a good machine and borderlining on great! If you are looking for a jointer, then get one with spiral cutterhead. It is the best way to go. Not sure why anyone would settle for anything less and can't imagine someone buying the "outdated" knife style machine. Spiral carbide cutterheads are the bee's knees! Other than those three noted issues, this is a mighty fine 12" jointer.

    Originally posted on grizzly.com

    Review 1

    The centerpiece of my shop

    5 years ago
    I bought one of these over 10 years ago and it is the centerpiece of my shop. Every piece of wood I use starts first on this beast of a machine, where one side and an adjacent edge are left dead-flat and perpendicular to each other. My previous jointer was an old 6" unit with conventional knives, and it was great to move up to a machine that can take just about anything I can throw at it, with minimal fussy adjustments. The parallelogram design is stays aligned much better and is easier to adjust. One other reviewer commented on the power tripping out when doing anything other than light cuts. One thing to check on is the connections from the wiring to the overload relay. If they are loose, they can heat up which will cause the relay to trip. I had this issue on mine and re-did the connections, and it's been running flawlessly ever since. Another thing to remember is that dust collection is essential with this machine.

    Originally posted on grizzly.com

    Review 1

    Top notch

    8 years ago
    I've had this jointer for over a couple of months now and it's a great machine. Flat, true, and quiet... all you'd expect for a machine of this size. Tearout on boards is very, very minimal or all together non existent. Great machine thanks Grizzly!

    Originally posted on grizzly.com
