ECO-FLO Products Inc. 4 in. Submersible Deep Well Pump, 1 HP, 3 Wire
$479.99
ECO-FLO Products Inc. 4 in. Submersible Deep Well Pump, 1 HP, 3 Wire
ECO-FLO Products Inc. 4 in. Submersible Deep Well Pump, 1 HP, 3 Wire
Item # 116837799
$479.99
or
or
Neighbor’s Club Members earn points with purchases.
ECO-FLO Products Inc. 4 in. Submersible Deep Well Pump, 1 HP, 3 Wire
Item # 116837799
$479.99
or
or
$40/mo.† suggested payments with 12 Months Financing or earn $23 in Rewards+ on this purchase.
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.

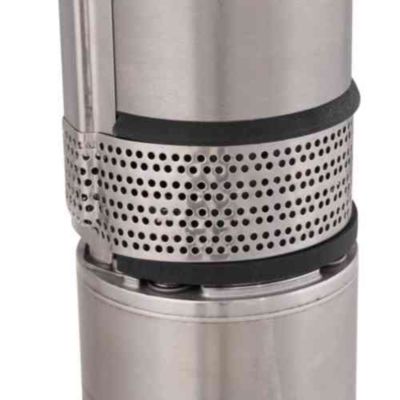

The ECO-FLO Products Inc. 4 in. Submersible Deep Well Pump features a 1-1/4 in. FNPT discharge connection and includes a built-in check valve that provides smooth water passage for maximum efficiency. The submersible well pump offers a self-healing resin system and hermetically sealed windings. The stainless-steel pump housing offers maximum protection against corrosion.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Stainless Steel pump shaft is precision ground for exact bearing fit and straightness
- Precision-molded impellers and diffusers
- Stainless-steel pump housing for maximum protection against corrosion
- Stainless-steel splined shaft
- Submersible well pump offers hermetically sealed windings
- Self-healing resin system
- Integrated check valve
- Kingsbury-type thrust bearing
- Pressure equalizing diaphragm
- Removable water-bloc lead connector
| Brand | ECO-FLO Products Inc. |
|---|---|
| Country of Origin | Imported |
| Amperage | 8.6 Amp |
| Body Material | Stainless steel |
| Compatible Pipe Material | PVC |
| Compatible Well Diameter | 4 in. |
| Discharge Connection | Threaded Female |
| Discharge Diameter | 1-1/4 in. |
| Discharge Rate at 0 ft. | 0 N/A |
| Discharge Rate at 25 ft. | 0 N/A |
| Discharge Rate at 50 ft. | 0 N/A |
| Features | 1 HP, 230V - 10 GPM Provides Smooth Water Passages for Maximum Efficiency 11/4 in. FNPT Discharge Cast Iron Discharge Connection, includes Built-in Check ValveStainless Steel Splined Shaft Self-healing Resin System |
| Horsepower | 1hp |
| Inlet Connection | None |
| Inlet Diameter | 0 N/A |
| Maximum Flow Rate | 11.1 GPM |
| Maximum Head Lift | 250 ft. |
| Maximum Operating Depth | 250 ft. |
| Maximum Operating Temperature | 104 deg. F |
| Minimum Operating Temperature | 33 deg. F |
| Power Type | Electric |
| Product Height | 29.3 in. |
| Product Length | 29.3 in. |
| Product Weight | 27.6 lb. |
| Product Width | 3.54 in. |
| Motor Type | Faradyne |
| Voltage | 230v |
| Warranty | 1 Year |
| Manufacturer Part Number | EFSUB10-123 |
Start typing your question and we'll check if it was already asked and answered.
1 - 8 of 8 Questions
Newest questions
Q: will this pump work with a goulds control box
2 years ago1 Answer
- A: Hi there, For this specific inquiry please contact the manufacturer: ECO-FLO Products Inc. customerservice@ashlandwatergroup.com CALL US (877) 326-35612 years agoHelpful?
Q: Why do these individual listings not include horsepower, gallons per minute or 2wire or 3wire?
3 years ago2 Answers
- A: Hi drown, Here is the information we received back from the vendor. The EFSUB10-103 is a 1 HP pump with 3 wires (plus a ground wire)3 years agoHelpful?
Q: Will this pump, from a slave tank, pump to 200 psi head? Thank you...
5 years ago1 Answer
- A: I do not think that will work, but Please contact the manufacturer for more information.5 years agoHelpful?
Q: Can this pump be run on solar? What would that require?
5 years ago1 Answer
- A: No our 4” single phase motor. Customer will need a inverter and requires a 3 phase motor.5 years agoHelpful?
Q: Is this pump 4 wire
6 years ago1 Answer
- A: Wrench59, This pump is a 3 wire design WITH a ground. So it has 4 wires and requires a control box to operate correctly.6 years agoHelpful?
Q: What is the GPM at 40ft? How far can this be from my house? My well is 150 meters from the 2 homes it will be servicing. Well surface is at 29 ft bottom at 40. Current 1/2 horse isn’t cutting it. Overworked for 2 homes and the distance.
7 years ago1 Answer
- A: The GPM would be 11 GPM. The problem may be the size of the piping to the houses. Causing to much restriction. Thanks Customer Service7 years agoHelpful?
Q: What is the GPM @ 120 ft
8 years ago1 Answer
- A: MCT This pump will deliver 12 gpm at 120 ft. Please call 419-281-6571 if you have any questions Customer Service8 years agoHelpful?
Q: how deep will this pump work at for depth
9 years ago1 Answer
- A: 250 feet9 years agoHelpful?
