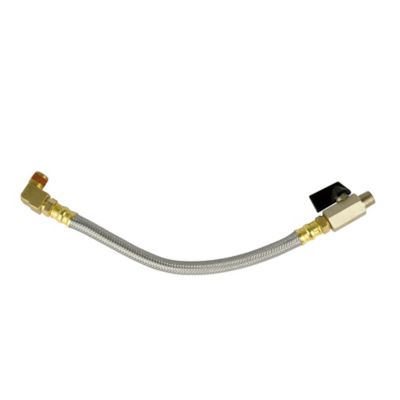

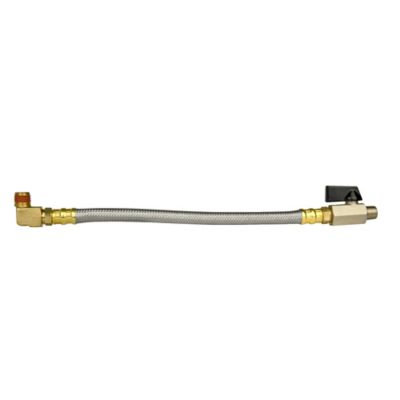

To make daily maintenance tasks easy to perform, install the DEWALT Extended Tank Drain Valve Assembly. The key to a long lasting air compressor is regular maintenance. Each time your compressor runs, the moisture in the air condenses in the tank. This moisture must be drained daily from the tank to prevent water buildup. The tank drain valve assembly includes an elbow with pre-applied thread sealant, 10 in. flexible braided steel hose, and a quarter turn drain valve.
- Replacement tank drain valve assembly for your current drain valve for ease in draining moisture from the compressor tank
- Extended tank drain valve assembly works on air compressors with 1/4 in. NPT drain valve

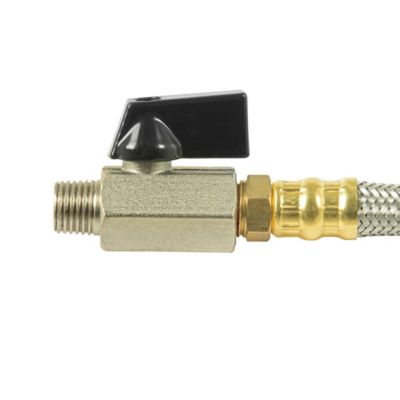

- Tank drain valve assembly includes elbow with pre-applied thread sealant, 10 in. flexible braided steel hose, and a quarter turn drain valve
- Maximum working pressure of tank drain valve assembly: 175 PSI
| Brand | DEWALT |
|---|---|
| Country of Origin | Imported |
| Compressor Valve Type | Air-admittance valve |
| Maximum Operating Pressure | 175 PSI |
| Operating Pressure Range | 175 PSI |
| Package Quantity | 1 |
| Primary Material | Steel |
| Product Height | 10.59 in. |
| Product Length | 4.88 in. |
| Product Weight | 0.54 lb. |
| Product Width | 1.22 in. |
| Valve Inlet Diameter | 1/4 in. |
| Valve Inlet Type | Tank drain valve |
| Valve Outlet Diameter | 1/4 in. |
| Warranty | Refer to manufacturer documentation for warranty information |
| Manufacturer Part Number | DXCM072-0023 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 7 of 7 Questions
Newest questions
Q: Does this work in an unheated shop that freezes? Do the fittings stand up to freezing?
3 months ago1 Answer
- A: The operating temperature range is 32-104 degrees.3 months agoHelpful?
Q: Will it fit the Dewalt D55168 Type 3 compressor? 200 psi
3 years ago1 Answer
- A: Hi there, Thanks for the question. This drain valve has a 175psi maximum working pressure, therefore it would not work with the type 3 compressor with 200psi.3 years agoHelpful?
Q: Are the fittings Brass?
3 years ago1 Answer
- A: Yes, they are brass.3 years agoHelpful?
Q: I cannot verify the size of my drain valve, is this compatible with DXCMLA1683066? or do all Dewalt compressors have 1/4 in NPT drain valves?
3 years ago1 Answer
- A: Yes, the DXCM072-0023 extended tank drain valve assembly will certainly work on the 30 gallon DXCMLA1683066 compressor. Both the tank drain port on the compressor and the extended drain assembly are 1/4" NPT in size.3 years agoHelpful?
Q: Will the dewalt drain valve assembly dxcmo72-0023 fit a dewalt dxcmla 19830a54 compressor
4 years ago2 Answers
- A: Yes, this drain valve assembly should work with the DXCMLA19830A54, as it works with air compressors with a 1/4 in. NPT drain valve.4 years agoHelpful?
Q: Will this work on Dewalt DXCM601 Compressor?
5 years ago2 Answers
- A: Yes, this tank drain valve assembly has a 1/4" NPT threaded end and this would work on your DXCM601 60 gallon compressor.5 years agoHelpful?
Q: I noticed on the package a "hook" that attaches to one of the feet of the compressor, where can I find purchase the holder for the hose.
5 years ago2 Answers
- A: Please contact Product Services at 888-895-4549 for further assistance.5 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 7 of 7 Questions
Newest questions
Q: Does this work in an unheated shop that freezes? Do the fittings stand up to freezing?
3 months ago1 Answer
- A: The operating temperature range is 32-104 degrees.3 months agoHelpful?
Q: Will it fit the Dewalt D55168 Type 3 compressor? 200 psi
3 years ago1 Answer
- A: Hi there, Thanks for the question. This drain valve has a 175psi maximum working pressure, therefore it would not work with the type 3 compressor with 200psi.3 years agoHelpful?
Q: Are the fittings Brass?
3 years ago1 Answer
- A: Yes, they are brass.3 years agoHelpful?
Q: I cannot verify the size of my drain valve, is this compatible with DXCMLA1683066? or do all Dewalt compressors have 1/4 in NPT drain valves?
3 years ago1 Answer
- A: Yes, the DXCM072-0023 extended tank drain valve assembly will certainly work on the 30 gallon DXCMLA1683066 compressor. Both the tank drain port on the compressor and the extended drain assembly are 1/4" NPT in size.3 years agoHelpful?
Q: Will the dewalt drain valve assembly dxcmo72-0023 fit a dewalt dxcmla 19830a54 compressor
4 years ago2 Answers
- A: Yes, this drain valve assembly should work with the DXCMLA19830A54, as it works with air compressors with a 1/4 in. NPT drain valve.4 years agoHelpful?
Q: Will this work on Dewalt DXCM601 Compressor?
5 years ago2 Answers
- A: Yes, this tank drain valve assembly has a 1/4" NPT threaded end and this would work on your DXCM601 60 gallon compressor.5 years agoHelpful?
Q: I noticed on the package a "hook" that attaches to one of the feet of the compressor, where can I find purchase the holder for the hose.
5 years ago2 Answers
- A: Please contact Product Services at 888-895-4549 for further assistance.5 years agoHelpful?
Similar Items
-
-
-
Top Rated
-
-
-
Top Rated
-
Top Rated
-
-
-
-
-
Items You May Like
-
Top Rated
-
-
-
-
-
Top Rated
-
-
-
-
-
-
Reviews
- draining
- ease of use
- large
- moisture
- price
- purchase
- corrosion
- setup
1 to 4 of 9 Reviews .
1 – 4 of 9 Reviews
Most Recent
New hampshire
Review 1
5 out of 5 stars.
Perfect fit for FS-Curtis 80 gallon air compres
4 months ago
No more oil change mess! Perfect fit for my FS-Curtis 80 gallon air compressor! Well built part!
Yes, I recommend this product.
Upstate NY
Review 1
5 out of 5 stars.
Quicker and more convenient than stock bleed screw
a year ago
Replaced screw type bleed with this item, as I was not as diligent about draining the tank as I should have been. 1/4 turn, plus being waaay more accessible is a huge improvement.
SweepstakesYes
Yes, I recommend this product.
TN
Review 1
5 out of 5 stars.
This extended drain valve should be std equipment
4 years ago
If you are planning to buy a 60-gallon DeWalt compressor (or probably most of the other DeWalt larger compressors), BUY THIS ITEM AT THE SAME TIME!! I thought the original drain valve was cheesy, and sure enough, it was always hard to use, and it failed for good about 6 months after purchasing my compressor new. In addition, my original drain valve always had a slow leak in it, and this extended tank drain valve assembly COMPLETELY solved this problem. Furthermore, the new valve is MUCH EASIER to use this MUCH MORE ROBUST valve, so it is extremely easy to drain the tank every single day the compressor is used vs. maybe once a week with the old, leaky valve. And now there's no puddle of rust on the floor. Don't put too much analysis into replacing the original valve with such a low price, JUST DO IT!!!
Yes, I recommend this product.
Hammonton NJ
Reviews 2
5 out of 5 stars.
Much Better Than Original Drain
4 years ago
This drain is so much better than the original DeWalt drain. I no longer have to try to fit my hand under the compressor to drain it, and the air flow is much better with the ball valve. I now have superior moisture draining that is much easier to do.
Yes, I recommend this product.
