DEWALT 3/8 in. Filter
DEWALT 3/8 in. Filter
Item # 133422799
$74.99
Buy Air Compressor Get 20% Off Air Compressor accessorie
Get everything you need
Neighbor’s Club Members earn points with purchases.
DEWALT 3/8 in. Filter
Item # 133422799
Buy Air Compressor Get 20% Off Air Compressor accessorie
$74.99
Shopping at
Grassland (franklin) TN
Delivery to
Pickup Nearby at FRANKLIN TN(6.7) miles Free
Pickup Later at Franklin TN
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.

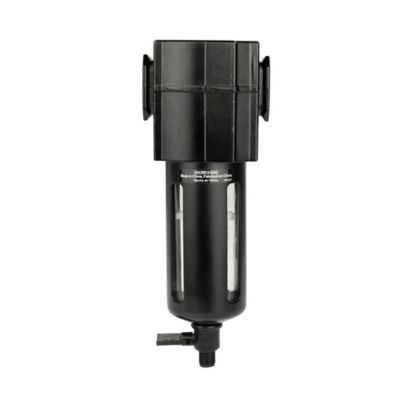

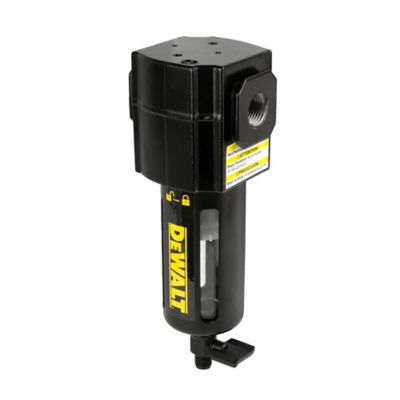

The DEWALT 3/8 in. Filter removes dirt and condensed water to protect and extend air tool life. A sintered brass filter element captures contaminants and delivers outstanding filtration. The filter includes a metal bowl guard that protects against impacts and has a quick-release bowl and quarter-turn drain for ease of use. The DEWALT 3/8 in. NPT standard air filter works great in any compressor, air tank or air system.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Filter element removes moisture and contaminants improving tool life
- Manual drain to remove solid contaminants and bulk liquids
- Body and metal bowl of the filter are corrosion-resistant
- 3/8 in. filter installs in-line
- Use with DEWALT 3/8 NPT regulator (Model# DXCM019-0343)
- 2 year limited warranty
- Quick-release bowl and quarter-turn drain allow for easy use of the DEWALT filter
| Brand | DEWALT |
|---|---|
| Country of Origin | Imported |
| Compatibility | Works with any compressor, air tank or air system |
| Filtration Material | Metal |
| Inlet Size | 3/8 in. |
| Package Quantity | 1 |
| Product Height | 7.2 in. |
| Product Length | 2.8 in. |
| Product Weight | 1.08 lb. |
| Product Width | 2.4 in. |
| Manufacturer Part Number | DXCM019-0342 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 5 of 5 Questions
Newest questions
Q: It still lets water through, do I need a filter for it because nothing is specific. If so which filter do I need?
a year ago1 Answer
- A: Hey, Sorry to hear your having an issue. Please reach out to the technical support team using the information below. ***DEWALT*** https://support.dewalt.com/hc/en-us/requests/new OR CALL 800-433-9258 Monday - Friday, 8:00 A.M. - 6:00 P.M. Eastern Time.a year agoHelpful?
Q: I have a DeWALT 25 gal / 200 psi ( DXCM251 ), Will this work with it ???
4 years ago1 Answer
- A: This filter will work with this compressor. However, you will need to make sure the regulator is set to 150 PSI maximum because the filter max pressure rating is 150 PSI. If you want to mount the filter directly to the compressor instead of mounting to the wall due to this compressor being a portable compressor, you will need to remove the quick coupler from the regulator and get an approximately 6” long nipple that has ¼” NPT threads on one end and 3/8” NPT threads on the other (or they could have the same threads on both ends and use a ¼” NPT female to 3/8” NPT male adapter). This nipple would go between the regulator and the filter. The nipple needs to be this long so the filter is outside the compressor where the filter can be rotated to screw it onto the nipple. You will then need a 3/8” NPT male to ¼” NPT female adapter that is assembled to the output side of the filter and then the quick coupler that was removed from the regulator at the start can be assembled into the adapter.4 years agoHelpful?
Q: Is this filter good for painting aswell
5 years ago2 Answers
- A: This filter will work well for painting but if you want to make sure no moisture goes through I would recommend a desiccant dryer put on the air hose prior to the spray gun to get any moisture that may condensate in the hose.5 years agoHelpful?
Q: Where do you get new filter elements
5 years ago1 Answer
- A: Please call 888.895.4549.5 years agoHelpful?
Q: Is there a mounting bracket available for this filter? If not how is it mounted?
6 years ago1 Answer
- A: No, there is no mounting bracket. We recommend attaching to your shut off valve that comes out of your compressor or into your hard piping system on your wall.6 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 5 of 5 Questions
Newest questions
Q: It still lets water through, do I need a filter for it because nothing is specific. If so which filter do I need?
a year ago1 Answer
- A: Hey, Sorry to hear your having an issue. Please reach out to the technical support team using the information below. ***DEWALT*** https://support.dewalt.com/hc/en-us/requests/new OR CALL 800-433-9258 Monday - Friday, 8:00 A.M. - 6:00 P.M. Eastern Time.a year agoHelpful?
Q: I have a DeWALT 25 gal / 200 psi ( DXCM251 ), Will this work with it ???
4 years ago1 Answer
- A: This filter will work with this compressor. However, you will need to make sure the regulator is set to 150 PSI maximum because the filter max pressure rating is 150 PSI. If you want to mount the filter directly to the compressor instead of mounting to the wall due to this compressor being a portable compressor, you will need to remove the quick coupler from the regulator and get an approximately 6” long nipple that has ¼” NPT threads on one end and 3/8” NPT threads on the other (or they could have the same threads on both ends and use a ¼” NPT female to 3/8” NPT male adapter). This nipple would go between the regulator and the filter. The nipple needs to be this long so the filter is outside the compressor where the filter can be rotated to screw it onto the nipple. You will then need a 3/8” NPT male to ¼” NPT female adapter that is assembled to the output side of the filter and then the quick coupler that was removed from the regulator at the start can be assembled into the adapter.4 years agoHelpful?
Q: Is this filter good for painting aswell
5 years ago2 Answers
- A: This filter will work well for painting but if you want to make sure no moisture goes through I would recommend a desiccant dryer put on the air hose prior to the spray gun to get any moisture that may condensate in the hose.5 years agoHelpful?
Q: Where do you get new filter elements
5 years ago1 Answer
- A: Please call 888.895.4549.5 years agoHelpful?
Q: Is there a mounting bracket available for this filter? If not how is it mounted?
6 years ago1 Answer
- A: No, there is no mounting bracket. We recommend attaching to your shut off valve that comes out of your compressor or into your hard piping system on your wall.6 years agoHelpful?
