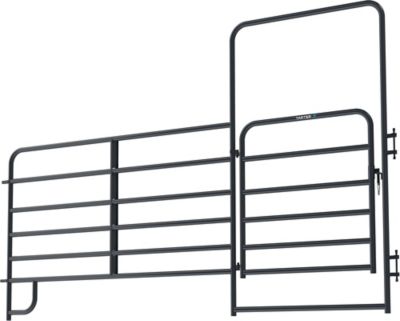

Corral with 4 ft. Walk-Through & 8 ft. Panel, 12 ft. Total Width, EWB84

SKU # 360398899
Enter Zip Code for price
Product price

Save Up To
See price at checkout Why?
Product Rating is 5.0
5.0
(3)
Write a review

Financing Available! Click here for more details...

Shipping Information

Quantity

Autoship

Delivery Options for

This item will ship within 4 days.

Item Information

4' Walk - Thru Arch Gate with 8' Panel - Blue.

  • Built to stand rigid for ease of opening and closing when handling livestock
  • All panel-attached Walk-Thru Arch Gates stand 8 high for easy clearance and are available in 6' or 8' length
  • Superior continuous-welded saddle joints
  • Quick-pin latch system makes for easy hookup
Features our superior E-Coat finish to ensure longer life in the field.

Specification Description
Closure Type: Single hand sliding lockable gate latch
Maximum Head Opening Width: 4 ft.
Thickness: 1 3/4 in.
Product Height: Panel is 62 in. high, walk thru is 8 ft. tall
Number of Hinges and Hinge Pins Included: 2
Number of Legs: 2
Product Length: 12 ft. total, panel is 8 ft. gate is 4 ft.
Material: Steel
Opening Height: 8 ft.
Number of Vertical Braces: 1
CountryofOrigin: Made in USA
Corner Design: Round
Hookup Type: Quick-pin latch system
Tubing Diameter: 1 3/4 in.
Minimum Head Opening Width: 4 ft.
Animal Compatibility: Cattle, Horses
Product Width: 1 3/4 in.
Compatibility: Recommended for light - to - medium confinement
Release Control: Lockable gate latch
Number of Bars: 6
Part Number: EWB84
Type: Walk-thru arch gate with panel
Leg Design: Custom loop legs to prevent sinking
Product Weight: 86 lb.
Special Feature(s): Features our superior E-coat finish to ensure longer life in the field
Finish: E-coat finish
Single or Dual Access Doors: Single
Manufacturer Part Number EWB84
Corral with 4 ft. Walk-Through & 8 ft. Panel, 12 ft. Total Width, EWB84 is rated 5.0 out of 5 by 2.
Rated 5 out of 5 by from Combo gate and panel used as stall closures Got them in a fairly good time, do not know where they shipped from.
Date published: 2019-08-07
  • y_2019, m_8, d_19, h_19
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.13
  • cp_1, bvpage1
  • co_hasreviews, tv_1, tr_1
  • loc_en_US, sid_360398899, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_tractorsupply

What gauge steel is this?

Asked by: Kdbug49
This is a 19 gauge steel.
Answered by: MatthewL
Date published: 2019-07-08

Does this arch / panel come with the gate?

Asked by: CowgirlTough
Yes, everything in the picture is included.
Answered by: MitchellW
Date published: 2019-03-12

Is this product available in green

Asked by: Gwen11
This exact style of panel is not available in green. If you search "green gate" it will bring up our complete selection of green tube panels. Here are the SKU's for all of the green gate panels we have. CountyLine Tube Gate, 14 ft., Green - SKU #3604667, CountyLine Tube Gate, 12 ft., Green - SKU #3604675, CountyLine Tube Gate, 10 ft., Green - SKU #3604683, CountyLine Tube Gate, 16 ft., Green - SKU #3604722, Tarter 7 Bar Heavy Duty Standard Bull Gate 4 ft., Green, RGB4T - SKU #1362662, Tarter 7 Bar Heavy Duty Standard Bull Gate 8 ft., Green, RGB8T - SKU #1362664, Tarter 7-Bar Heavy Duty Standard Bull Gate, 16 ft., Green, RGB16T - SKU #1362668, Tarter 7-Bar Heavy Duty Standard Bull Gate, 14 ft., Green, RGB14T - SKU #1362667, Tarter 4 ft. Wire Gate, 2 in. x 4 in. Grid Spacing, Green, WFGG4 - SKU #1355394, Tarter 6 ft. Wire Gate, 2 in. x 4 in. Grid Spacing, Green, WFGG6 - SKU #1355395, Tarter 8 ft. Wire Gate, 2 in. x 4 in. Grid Spacing, Green, WFGG8 - SKU #1355396, Tarter 10 ft. Wire Gate, 2 in. x 4 in. Grid Spacing, Green, WFGG10 - SKU #1355397, Tarter 12 ft. Wire Gate, 2 in. x 4 in. Grid Spacing, Green, WFGG12 - SKU #1355398, Tarter 14 ft. Wire Gate, 2 in. x 4 in. Grid Spacing, Green, WFGG14 - SKU #1355399, Tarter 16 ft. Wire Gate, 2 in. x 4 in. Grid Spacing, Green, WFGG16 - SKU #1355400
Answered by: NRoberts
Date published: 2019-03-25

Where can I get the hardware (hinge) for the car gate? Does it come with it? I want to use the gate as a car gate and a man gate.

Asked by: Thomas Chau

Can this panel be attached to a 10' panel (CountyLine) that is marked as 5' tall?

Asked by: Beth1990
Yes this panel will work with that application.
Answered by: CodyP
Date published: 2019-06-19

Is it possible to set this up on a right angle? Can it be bent between gate and panel to make an "L"?

Asked by: Cal63
Yes this gate can be bent in a L shape or setup as a right angle.
Answered by: CodyP
Date published: 2019-06-19
