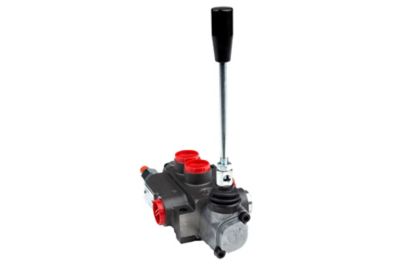

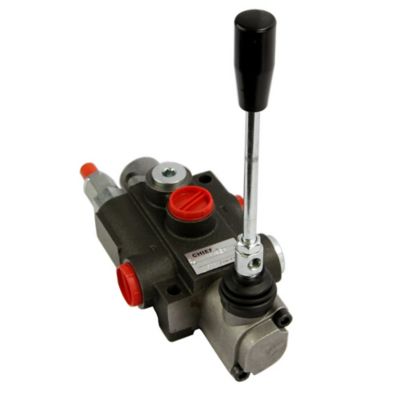

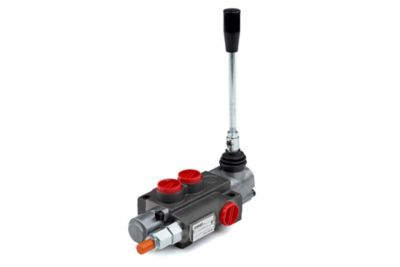

Chief 2,500 PSI G Series Directional Control Valve, 21 GPM, 1 Spool, SAE 10 Inlet/12 Outlet
Online Only
Chief 2,500 PSI G Series Directional Control Valve, 21 GPM, 1 Spool, SAE 10 Inlet/12 Outlet
Item # 1119381
$183.38
Neighbor’s Club Members earn points with purchases.
Online Only
Chief 2,500 PSI G Series Directional Control Valve, 21 GPM, 1 Spool, SAE 10 Inlet/12 Outlet
Item # 1119381
$183.38
New Cardmembers earn a $20 Reward‡ with qualifying purchase of $20 or more plus earn 5% in Rewards+ on this purchase. Valid through 8/9/26.
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.
The Chief 2,500 PSI G Series Directional Control Valve is made of durable cast iron for lasting use. This hydraulic control valve features adjustable relief up to 3,625 PSI, and it has an anti-drop load check on each spool for safe operation. This Chief hydraulic directional control valve is equipped with a single spool. Create the perfect equipment setup with help from a Chief hydraulic valve today.Note: This product may require up to 2 additional days for order processing prior to shipping
- Directional control valve features cast iron construction for durability
- Anti-drop load check on each spool for safe operation
- This hydraulic control valve features 3,625 PSI with a 2,500 relief setting
- Complete handle assembly included with the hydraulic valve
- Power beyond or closed center available
- See accessories for power beyond plug or closed center conversion plug
- This Chief hydraulic directional control valve is equipped with a single spool
- European design with SAE 10 inlet, SAE 12 outlet, and SAE 10 work ports
- Flow rate: 21 GPM
- Valving: 4-way, 3-position tandem center
- Action: 3-position spring center
- Max. operating temperature of the directional control valve: 176 degrees F
| Brand | Chief |
|---|---|
| Country of Origin | Made in USA |
| Brand Compatibility | Universal |
| Compatibility | Most applications |
| Inlet Size | 10 SAE |
| Inlet Type | Female |
| Maximum Flow Rate | 21 GPM |
| Maximum PSI | 2,500 PSI |
| Model Compatibility | Universal |
| Number Of Directional Control Positions | 3 |
| OEM Replacement | Control valve |
| Outlet Size | 12 SAE |
| Outlet Type | Female |
| Primary Material | Cast Iron |
| Product Height | 0 N/A |
| Product Length | 0 N/A |
| Product Weight | 8.58 lb. |
| Product Width | 0 N/A |
| Warranty | 1 Year |
| Work Port Size | SAE 10 |
| Manufacturer Part Number | 220994 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 1 of 1 Question
Newest questions
Q: Is this an open or closed valve center?
6 years ago1 Answer
- A: These are motor center valves that can be made into closed center with a closed center plug (part # 220914).6 years agoHelpful?
