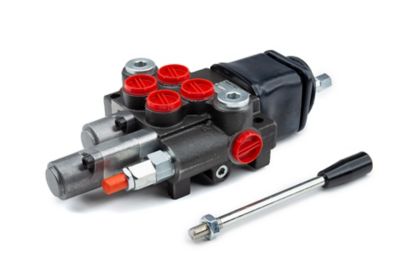

Chief 3,625 PSI G Series Directional Control Valve with Joystick, 21 GPM, 2 Spool, SAE 10 Inlet/12 Outlet
Chief 3,625 PSI G Series Directional Control Valve with Joystick, 21 GPM, 2 Spool, SAE 10 Inlet/12 Outlet
Item # 1307339
$309.18
Chief 3,625 PSI G Series Directional Control Valve with Joystick, 21 GPM, 2 Spool, SAE 10 Inlet/12 Outlet
Item # 1307339
$309.18
The Chief 3,625 PSI G Series Directional Control Valve with Joystick is made of durable cast iron for lasting use. This hydraulic control valve features adjustable relief up to 3,625 PSI, and it has an anti-drop load check on each spool for safe operation. This Chief hydraulic directional control valve is equipped with a joystick handle. Create the perfect equipment setup with help from a Chief hydraulic valve today.Note: This product may require up to 2 additional days for order processing prior to shipping
- Directional control valve features cast iron construction for durability
- Anti-drop load check on each spool for safe operation
- This hydraulic control valve features adjustable relief up to 3,625 PSI
- Complete handle assembly included with the hydraulic valve
- Power beyond or closed center available
- See accessories for power beyond plug or closed center conversion plug
- This Chief hydraulic directional control valve is equipped with a joystick handle
- European design with SAE 10 inlet, SAE 12 outlet, and SAE 10 work ports
- Flow rate: 21 GPM
- Valving: 4-way, 3-position tandem center
- Action: 3-position spring center
- Max. operating temperature of the directional control valve: 176 degrees F
| Brand | Chief |
|---|---|
| Country of Origin | Imported |
| Brand Compatibility | Universal |
| Compatibility | Most applications |
| Inlet Size | SAE 10 |
| Inlet Type | Male |
| Maximum Flow Rate | 21 GPM |
| Maximum PSI | 3,625 PSI |
| Model Compatibility | Most applications |
| Number Of Directional Control Positions | 3 |
| OEM Replacement | Control valve |
| Outlet Size | SAE 12 |
| Outlet Type | N/A |
| Primary Material | Cast Iron |
| Product Height | 0 N/A |
| Product Length | 0 N/A |
| Product Weight | 16.4 lb. |
| Product Width | 0 N/A |
| Warranty | 1 Year |
| Work Port Size | SAE 10 |
| Manufacturer Part Number | 220905 |
