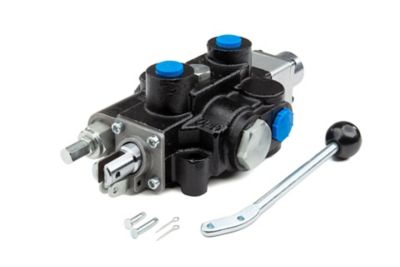

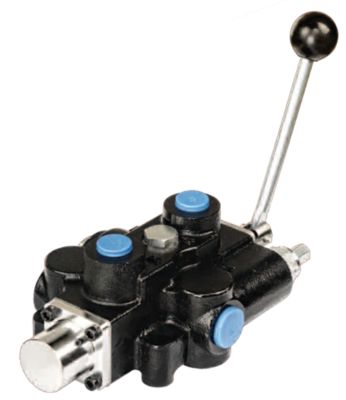

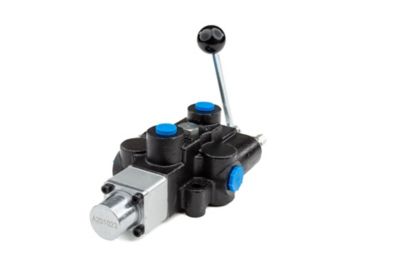

Chief 3,000 PSI RLD Series Directional Control Valve, 25 GPM, 1 Spool
Chief 3,000 PSI RLD Series Directional Control Valve, 25 GPM, 1 Spool
Item # 130732299
$239.99
or
or
Neighbor’s Club Members earn points with purchases.
$239.99
or
or
$40/mo.† suggested payments with 6 Months Financing or earn $11 in Rewards+ on this purchase.
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.
The Chief 3,000 PSI RLD Series Directional Control Valve is made of durable cast iron. The spool valve offers 1/2 in. NPT work ports and a 4-way, 3-position spring center. This hydraulic valve offers a flow rate of 25 GPM and a 1,500 - 3,000 PSI relief setting.Note: This product may require up to 2 additional days for order processing prior to shipping
- Directional control valve offers 25 GPM
- 1,500 - 3,000 PSI relief setting
- One 4-way, 3-position spool and a handle
- 3/4 in. NPT inlet and outlet ports
- Spool valve with 1/2 in. NPT work ports
- Spring center to neutral from either work position
- Durable cast-iron hydraulic valve is made to last
| Brand | Chief |
|---|---|
| Country of Origin | Imported |
| Brand Compatibility | Universal |
| Compatibility | Most applications |
| Inlet Size | 0 N/A |
| Inlet Type | Male |
| Maximum Flow Rate | 25 GPM |
| Maximum PSI | 3,000 PSI |
| Model Compatibility | Most applications |
| Number Of Directional Control Positions | 3 |
| Outlet Size | 3/4 in. |
| Outlet Type | NPT |
| Primary Material | Cast Iron |
| Product Height | 0 N/A |
| Product Length | 0 N/A |
| Product Weight | 16 lb. |
| Product Width | 0 N/A |
| Warranty | 1 Year |
| Work Port Size | 1/2 in. |
| Manufacturer Part Number | 220573 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 2 of 2 Questions
Newest questions
Q: Is this open center or closed center? Need closed center. Any recommendations?
3 years ago1 Answer
- A: Please contact tech support at 1-800-800-1810 for further assistance with this inquiry.3 years agoHelpful?
Q: Will this work for top link control?
6 years ago1 Answer
- A: Please contact tech support at 1-800-800-1810 for further assistance with this inquiry.6 years agoHelpful?
