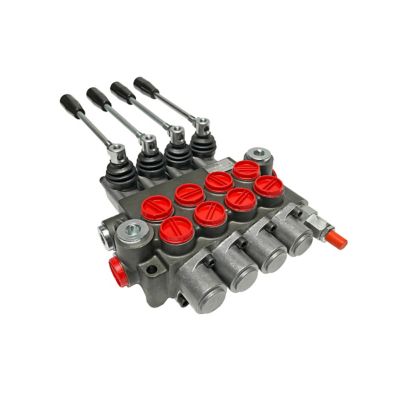

Magister Hydraulics 4 Spool x 13 GPM Hydraulic Control Valve

Gain reliable control over your equipment with the 4 Spool, 13 GPM Hydraulic Control Valve. Engineered with a heavy-duty cast iron body, this valve directs hydraulic oil between pumps, cylinders, and motors under pressures up to 3600 PSI ( 4600 PSI max ). Crafted in Europe to stringent American standards, it's a dependable solution for demanding applications in temperatures from -40°F to 140°F .
Built for Demanding Performance
- Robust Construction: Durable, leak-resistant cast iron monoblock body designed for harsh operating environments.
- High-Pressure Operation: Standard operating pressure 3600 PSI ; maximum pressure rating 4600 PSI.
- Extreme Temperature Resilience: Reliable performance from -40°F to 140°F for year-round use.
Designed for Versatility & Ease
- Broad Compatibility: Excellent direct replacement for systems in small tractors , tractor loaders , log splitters , forklifts , and tow trucks.
- Flexible Configuration: Includes handles installable vertically or horizontally to match your setup.
- Secure Mounting: Uses 2 M8 mounting bolts for stable installation.
- Advanced Option (Power Beyond): Power Beyond capability available for daisy-chaining multiple valves (requires plug installation into the "N" Port ).
Perfect For
Ideal replacement or upgrade for: Small Tractors , Tractor Loaders , Log Splitters , Forklifts , and Tow Trucks .
Note: Power beyond option is available ; plug must be installed into the "N" Port .
POWER BEYOND PLUG
PB-HCV-13
Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).
OPEN MANUAL
Free Ground Continental US Shipping
Made in Europe. 1 Year Warranty.
If you need assistance to choose a proper hydraulic valve, do not hesitate to contact us:
973-344-5313Engineered for heavy-duty performance, this 4-way, 4-spool directional control valve features a 3-position spring-return-to-center mechanism. It delivers 13 GPM flow at 3600 PSI, with SAE 8 (work ports) and SAE 10 (inlet/outlet) ports. Built with a durable cast iron body for operations from -40°F to 140°F. Ideal for log splitters, tractors, and forklifts. Handle allows vertical or horizontal installation. Made in Europe. 1-year warranty.
