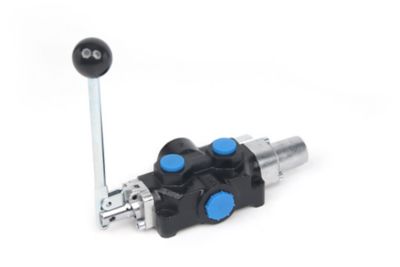

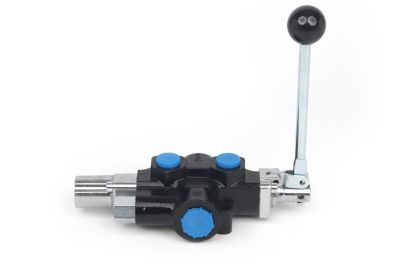

Chief 3,000 PSI Compact Log Splitter Valve, 18 GPM, 1 Spool, 3/4 in. NPT Inlet/Outlet
$169.99
Chief 3,000 PSI Compact Log Splitter Valve, 18 GPM, 1 Spool, 3/4 in. NPT Inlet/Outlet
Exclusive
Chief 3,000 PSI Compact Log Splitter Valve, 18 GPM, 1 Spool, 3/4 in. NPT Inlet/Outlet
Item # 117082099
Stocked & Ready
$169.99
Get everything you need
Neighbor’s Club Members earn points with purchases.
Exclusive
Chief 3,000 PSI Compact Log Splitter Valve, 18 GPM, 1 Spool, 3/4 in. NPT Inlet/Outlet
Item # 117082099
Stocked & Ready
$169.99
New Cardmembers earn a $20 Reward‡ with qualifying purchase of $20 or more plus earn 5% in Rewards+ on this purchase. Valid through 8/9/26.
Shopping at
Grassland (franklin) TN
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.
The Chief Compact Log Splitter Valve is compatible with most log splitters with 8-10 HP motors. The valve features an adjustable detent and handle design along with a 4-way, 3-position tandem center with a 4th position float. Made from cast-iron, this quality log splitter valve provides reliable operation rated for 25 GPM. Rated for 3,000 PSI operating pressure and 221 degrees Fahrenheit operating temperature. Satisfaction guaranteed.
- Single-spool valve offers 25 GPM, a 3/4 in. NPT inlet/outlet, and 1/2 in. NPT work ports
- Compact valve with adjustable detent and handle design
- Compatible with most log splitters with 8-10 HP motors
- Single spool log splitter valve with adjustable kick out detent
- Made of a rugged cast-iron body
- 4-way, 3-position tandem center with a 4th position float
- Max operating temperature: 221 degrees Fahrenheit
- Operating pressure: 3,000 PSI
- Complete handle assembly included with the valve
- Dimensions of the log splitter valve: 9.06 in. x 4.33 in. x 2.56 in.
- Satisfaction guaranteed
| Brand | Chief |
|---|---|
| Country of Origin | Imported |
| Brand Compatibility | Universal |
| Compatibility | Most applications |
| Inlet Size | 3/4 in. |
| Inlet Type | Female |
| Maximum Flow Rate | 18 GPM |
| Maximum PSI | 3,000 PSI |
| Model Compatibility | Most applications |
| Number Of Directional Control Positions | 4 |
| Outlet Size | 3/4 in. NPT |
| Outlet Type | N/A |
| Primary Material | Cast Iron |
| Product Height | 3.68 in. |
| Product Length | 10.43 in. |
| Product Weight | 5 lb. |
| Product Width | 8.93 in. |
| Warranty | 1 Year |
| Work Port Size | 1/2 in. |
| Manufacturer Part Number | 310997 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 23 Questions
Newest questions
Q: Is the valve open or closed system?
4 days ago1 Answer
- A: This valve is an open center system.4 days agoHelpful?
Q: What is the GPM on this valve? Package says 25 spec says 18
2 months ago1 Answer
- AI-generated, Human-approvedA: This log splitter valve is rated for 18 GPM. While some descriptions may mention 25 GPM, the manufacturer's specifications for this specific model confirm a maximum flow rate of 18 GPM.2 months agoHelpful?
Q: I bought this and put it on my 25 ton countline splitter. It goes forward on its own when lever is pushed forward but should automatically retract not be auto forward. Need help
a year ago1 Answer
- A: Try swapping the hose connections at the valve. If the valve is not operating as expected, this could be the cause. The way this valve should work is this: push the handle during extension to split the log. Once the log is split, pull the handle back into the retract detent, once the cylinder fully retracts the pressure builds up to the point the release detent "Pops" the handle back to the centered position, and the cylinder is ready to split the next log. Hope this helps.a year agoHelpful?
Q: will this valve work on a 27 ton troy built splitter
a year ago1 Answer
- A: Hello, thank you for your question. The Chief Compact Log Splitter Valve is compatible with most log splitters with 8-10 HP motors, but the manufacturer has not confirmed compatibility with specific models. Please see the below specifications for this valve and see if they match what you need. Bolt Size: .27" Type: 4 way 3 position Tandem center Gallons Per Minute: 18 Max PSI: 3625 No Of Spools: 1 Action: Spring center one way-pressure release detent (Detent PSI is non-adjustable) Work Port: 1/2” NPT Outlet Port: 3/4” NPT Manufacturer Part No: C353418 Brand: Chiefa year agoHelpful?
Q: Will it work on a 20 ton duerr log splitter
a year ago1 Answer
- A: Your log splitter has 5 HP The vendor specifies this as being for 8-10HPa year agoHelpful?
Q: What hydraulic Valve can I use for country line log splitter 25 tone
a year ago1 Answer
- A: The valve listed below will work with the 25 ton County Line Log Splitter. (SKU:117082099) https://www.tractorsupply.com/tsc/product/chief-compact-log-splitter-valve-18-gpm-3-4-npt-inlet-outlet-3625-psi-1-2-npt-work-portsa year agoHelpful?
Q: Will this valve fit the County Line 25 ton splitter? If not what valve will work?
3 years ago1 Answer
- A: We cannot say for certain. Please see the below specifications for this valve and see if they match what you need. Bolt Size: .27" Type: 4 way 3 position Tandem center Gallons Per Minute: 18 Max PSI: 3625 No Of Spools: 1 Action: Spring center one way-pressure release detent (Detent PSI is non-adjustable) Work Port: 1/2” NPT Outlet Port: 3/4” NPT Manufacturer Part No: C353418 Brand: Chief3 years agoHelpful?
Q: When you push down on valve handle does it make rod go down and split wood or is it down brings rod back up.
3 years ago1 Answer
- A: It depends on how you plumb the valve in. When you install the valve, if you do not like the direction the cylinder moves with the handle direction, you can reverse the hoses.3 years agoHelpful?
Q: Compatible with 11pm pump?
3 years ago1 Answer
- A: We cannot say for certain. Please see the below specifications for this valve and see if they match what you need. Bolt Size: .27" Type: 4 way 3 position Tandem center Gallons Per Minute: 18 Max PSI: 3625 No Of Spools: 1 Action: Spring center one way-pressure release detent (Detent PSI is non-adjustable) Work Port: 1/2” NPT Outlet Port: 3/4” NPT Manufacturer Part No: C353418 Brand: Chief3 years agoHelpful?
Q: Will this work on spreeco 22 ton 11gpm model LS401221 (also 28 , 34 ton models)
4 years ago1 Answer
- A: We cannot say for certain. Please see the below specifications for this valve and see if they match what you need. Bolt Size: .27" Type: 4 way 3 position Tandem center Gallons Per Minute: 18 Max PSI: 3625 No Of Spools: 1 Action: Spring center one way-pressure release detent (Detent PSI is non-adjustable) Work Port: 1/2” NPT Outlet Port: 3/4” NPT Manufacturer Part No: C353418 Brand: Chief4 years agoHelpful?
1 - 10 of 23 Questions
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 23 Questions
Newest questions
Q: Is the valve open or closed system?
4 days ago1 Answer
- A: This valve is an open center system.4 days agoHelpful?
Q: What is the GPM on this valve? Package says 25 spec says 18
2 months ago1 Answer
- AI-generated, Human-approvedA: This log splitter valve is rated for 18 GPM. While some descriptions may mention 25 GPM, the manufacturer's specifications for this specific model confirm a maximum flow rate of 18 GPM.2 months agoHelpful?
Q: I bought this and put it on my 25 ton countline splitter. It goes forward on its own when lever is pushed forward but should automatically retract not be auto forward. Need help
a year ago1 Answer
- A: Try swapping the hose connections at the valve. If the valve is not operating as expected, this could be the cause. The way this valve should work is this: push the handle during extension to split the log. Once the log is split, pull the handle back into the retract detent, once the cylinder fully retracts the pressure builds up to the point the release detent "Pops" the handle back to the centered position, and the cylinder is ready to split the next log. Hope this helps.a year agoHelpful?
Q: will this valve work on a 27 ton troy built splitter
a year ago1 Answer
- A: Hello, thank you for your question. The Chief Compact Log Splitter Valve is compatible with most log splitters with 8-10 HP motors, but the manufacturer has not confirmed compatibility with specific models. Please see the below specifications for this valve and see if they match what you need. Bolt Size: .27" Type: 4 way 3 position Tandem center Gallons Per Minute: 18 Max PSI: 3625 No Of Spools: 1 Action: Spring center one way-pressure release detent (Detent PSI is non-adjustable) Work Port: 1/2” NPT Outlet Port: 3/4” NPT Manufacturer Part No: C353418 Brand: Chiefa year agoHelpful?
Q: Will it work on a 20 ton duerr log splitter
a year ago1 Answer
- A: Your log splitter has 5 HP The vendor specifies this as being for 8-10HPa year agoHelpful?
Q: What hydraulic Valve can I use for country line log splitter 25 tone
a year ago1 Answer
- A: The valve listed below will work with the 25 ton County Line Log Splitter. (SKU:117082099) https://www.tractorsupply.com/tsc/product/chief-compact-log-splitter-valve-18-gpm-3-4-npt-inlet-outlet-3625-psi-1-2-npt-work-portsa year agoHelpful?
Q: Will this valve fit the County Line 25 ton splitter? If not what valve will work?
3 years ago1 Answer
- A: We cannot say for certain. Please see the below specifications for this valve and see if they match what you need. Bolt Size: .27" Type: 4 way 3 position Tandem center Gallons Per Minute: 18 Max PSI: 3625 No Of Spools: 1 Action: Spring center one way-pressure release detent (Detent PSI is non-adjustable) Work Port: 1/2” NPT Outlet Port: 3/4” NPT Manufacturer Part No: C353418 Brand: Chief3 years agoHelpful?
Q: When you push down on valve handle does it make rod go down and split wood or is it down brings rod back up.
3 years ago1 Answer
- A: It depends on how you plumb the valve in. When you install the valve, if you do not like the direction the cylinder moves with the handle direction, you can reverse the hoses.3 years agoHelpful?
Q: Compatible with 11pm pump?
3 years ago1 Answer
- A: We cannot say for certain. Please see the below specifications for this valve and see if they match what you need. Bolt Size: .27" Type: 4 way 3 position Tandem center Gallons Per Minute: 18 Max PSI: 3625 No Of Spools: 1 Action: Spring center one way-pressure release detent (Detent PSI is non-adjustable) Work Port: 1/2” NPT Outlet Port: 3/4” NPT Manufacturer Part No: C353418 Brand: Chief3 years agoHelpful?
Q: Will this work on spreeco 22 ton 11gpm model LS401221 (also 28 , 34 ton models)
4 years ago1 Answer
- A: We cannot say for certain. Please see the below specifications for this valve and see if they match what you need. Bolt Size: .27" Type: 4 way 3 position Tandem center Gallons Per Minute: 18 Max PSI: 3625 No Of Spools: 1 Action: Spring center one way-pressure release detent (Detent PSI is non-adjustable) Work Port: 1/2” NPT Outlet Port: 3/4” NPT Manufacturer Part No: C353418 Brand: Chief4 years agoHelpful?
