Chapin 15 gal. Mixes Exit At Sprayer
Chapin 15 gal. Mixes Exit At Sprayer
Item # 137832299
$289.99
Neighbor’s Club Members earn points with purchases.
Use the Chapin Exit ATV Sprayer and stop wasting water, chemical concentrate and time. This ATV sprayer's separate water and concentrate tanks mean no more messy and wasteful premixing of chemicals - and your water stays clean! The Mixes on Exit ATV sprayer tank system is designed around 2 tanks. And with additional concentrate tanks available (sold separately), you can swap your chemicals out on the fly when you're on the job. A simple Mix Valve control with this ATV sprayer pump allows you to adjust the concentrate from 1 to 15 oz. per gallon. This 15 gallon ATV sprayer includes a lockable poly shut-off and wand to provide versatile, adjustable spraying on the go, with optional boom spray kits available (sold separately).
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- This ATV sprayer's dual tank design keeps your water and concentrate separate until they're sprayed so there's no more messy and wasteful premixing
- This ATV diaphragm sprayer pump has a 15 gal. water tank and 1.33 gal. concentrate tank for your spray needs

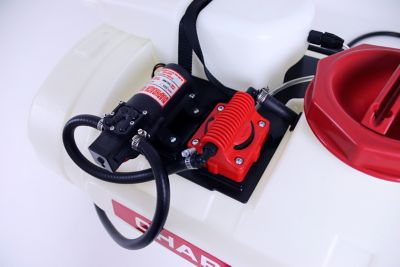

- This 15 gallon ATV sprayer has a 2.2 GPM pump that connects to your ATV/UTV/Lawn Tractor battery for easy power connections
- Adjustable mix valve gives you control by allowing 1-15 oz. of concentrate per gal. of water
- The Quick Connect fitting of this ATV sprayer tank makes it easy to swap concentrate tanks (additional concentrate tanks sold separately)
- Poly nozzle adjusts from tight stream to fine cone mist for the right spray

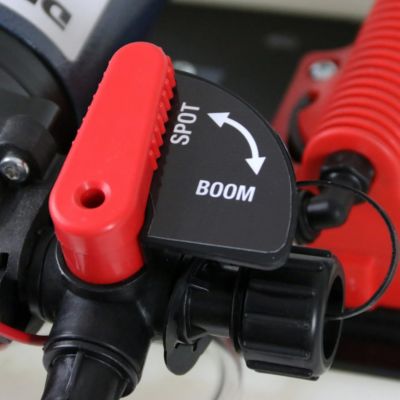

- Switchable boom and spot spray functions (boom spray kits sold separately) for better control
- Drain cap to quickly empty the water tank
- Requires Chapin 6430 or 6330 mounting kit (Sold Separately) for proper mounting of Chapin boom kits to standard ATV/UTV racks
- The included lockable poly shut-off and wand provide versatile, adjustable spraying on the go, with optional boom spray kits available (sold separately)
- Keep and store those concentrate tanks for later use
- In-tank filters prevent clogging
- Compatible for use with most ATVs, UTVs and lawn tractors
- Install on an ATV easily - ratchet straps are included
- Applications: fertilizers, weed & feed, fungicides, herbicides, pesticides
| Brand | Chapin |
|---|---|
| Country of Origin | Made in USA |
| Boom Nozzle Count | 1 |
| Chemical Compatibility | Fertilizer |
| Features | Mixes chemicals on exit |
| Hose Diameter | N/A |
| Hose Length | 180 in. |
| Maximum Operating Pressure | 60 PSI |
| Power Type | 12 Volt |
| Product Height | 17.5 in. |
| Product Length | 37.5 in. |
| Product Weight | 17 lb. |
| Product Width | 14 in. |
| Tank Capacity | 15 gal. |
| Tank Material | Plastic |
| Warranty | 1 Year Limited |
| Manufacturer Part Number | 97361 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 6 of 6 Questions
Newest questions
Q: does this come with all parts or do we need extras like motor
11 months ago1 Answer
- A: Hello, thank you for your question. The Chapin 97361 sprayer comes fully equipped with all necessary components, including the motor.11 months agoHelpful?
Q: Does the chemical delusion gauge let you set for specific ounces per gallon?
5 years ago2 Answers
- A: Hi. Yes, the Chapin 15 gal. Mixes Exit Atv Sprayer, 97361 offers a mixing dial that allows you to adjust the ounces of product sprayed per gallon of water. If you contact our Product Support team directly at 800-444-3140 option 1, they will be able to provide a copy of the setting guide for this mixing ratio. We appreciate your question and your business.5 years agoHelpful?
Q: I understand from a review that you must prime the pump before using. Must that be done each time and how do you do that?
5 years ago1 Answer
- A: Hi, the 97361 15 Gal. Mixes on Exit ATV does not need to be primed each time the sprayer is used. For more information on the 97361 and priming the pump, please call Chapin Customer Service at 800-444-3140 and they will be happy to assist you. Thank you for your question and for your business, we appreciate it.5 years agoHelpful?
Q: How does chemical mix with water
6 years ago1 Answer
- A: The 97361 Chapin 15 Gal. Mixes on Exit Sprayer pulls the chemical from the chemical tank and water from the water tank and mixes on the way out when spraying. You would use the dial setting on the large water tank to determine your chemical flow rate in ounces per gallon. If we can help with any further questions, please feel free to call our Technical Customer Service Team at 800-444-3140 and they will be happy to assist you. Thank you for your question and for your business, we appreciate it.6 years agoHelpful?
Q: How long of a hose for the spray wand does this come with?
6 years ago1 Answer
- A: Includes a 15ft hose for the spray wand.6 years agoHelpful?
Q: what the vertical and horizontal spray distance?
7 years ago1 Answer
- A: This product has a max spray of 23 feet horizontally and a max spray of 25 feet vertically7 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 6 of 6 Questions
Newest questions
Q: does this come with all parts or do we need extras like motor
11 months ago1 Answer
- A: Hello, thank you for your question. The Chapin 97361 sprayer comes fully equipped with all necessary components, including the motor.11 months agoHelpful?
Q: Does the chemical delusion gauge let you set for specific ounces per gallon?
5 years ago2 Answers
- A: Hi. Yes, the Chapin 15 gal. Mixes Exit Atv Sprayer, 97361 offers a mixing dial that allows you to adjust the ounces of product sprayed per gallon of water. If you contact our Product Support team directly at 800-444-3140 option 1, they will be able to provide a copy of the setting guide for this mixing ratio. We appreciate your question and your business.5 years agoHelpful?
Q: I understand from a review that you must prime the pump before using. Must that be done each time and how do you do that?
5 years ago1 Answer
- A: Hi, the 97361 15 Gal. Mixes on Exit ATV does not need to be primed each time the sprayer is used. For more information on the 97361 and priming the pump, please call Chapin Customer Service at 800-444-3140 and they will be happy to assist you. Thank you for your question and for your business, we appreciate it.5 years agoHelpful?
Q: How does chemical mix with water
6 years ago1 Answer
- A: The 97361 Chapin 15 Gal. Mixes on Exit Sprayer pulls the chemical from the chemical tank and water from the water tank and mixes on the way out when spraying. You would use the dial setting on the large water tank to determine your chemical flow rate in ounces per gallon. If we can help with any further questions, please feel free to call our Technical Customer Service Team at 800-444-3140 and they will be happy to assist you. Thank you for your question and for your business, we appreciate it.6 years agoHelpful?
Q: How long of a hose for the spray wand does this come with?
6 years ago1 Answer
- A: Includes a 15ft hose for the spray wand.6 years agoHelpful?
Q: what the vertical and horizontal spray distance?
7 years ago1 Answer
- A: This product has a max spray of 23 feet horizontally and a max spray of 25 feet vertically7 years agoHelpful?
Similar Items
-
-
-
-
-
-
-
-
-
-
-
Top Rated
-
Items You May Like
-
-
-
-
-
Top Rated
-
-
Top Rated
-
-
-
-
Top Rated
-
Customers Also Bought
-
-
-
-
-
-
Top Rated
-
-
-
Top Rated
-
-
-
Reviews
1 to 4 of 16 Reviews .
1 – 4 of 16 Reviews
Most Recent
Anonymous
Springfield Tn.
Reviews 2
2 out of 5 stars.
Missing many parts
a year ago
Missing several pieces of unit. The spray wand with tips. The hold down straps and the cap for draining the main tank.
Had to contact customer support to order missing pieces. Waiting to hopefully get parts.
Yes, I recommend this product.
Response from Chapin International:
a year ago
Chapin International
Hi Clark, we're sorry you experienced this. Please reach out if you need more assistance or don't receive the parts. Thank you.
Nebraska
Review 1
5 out of 5 stars.
Happy customer
2 years ago
Won't get to use it until spring so I measured 10 gallons of water in the tank, 10- gallon mark was only 1/2 gallon off. No big deal. I measured 16 oz in the mixer tank and set it on 4 oz and tested it, came out perfect. No leaks and. worked good .
2023 Q4 SweepstakesYes
Yes, I recommend this product.
Michigan
Review 1
3 out of 5 stars.
Good concept with issues
3 years ago
The concept is a good one. There was a problem trying to get the pump to prime. The large strainer basket pinches the hose so it couldn’t be used. After tightening all hoses the pump worked
Review 1
1 out of 5 stars.
Issues primping every time
3 years ago
I have had nothing but grief with this sprayer , I have trouble getting it to prime every time I use it , I have spent more time trying to get it to work than I would if I had used a two gallon hand pump up sprayer. I have used it about ten times and now it will not work at all and yes it is out of warranty and I’m not going to spend money repairing something that did not work right from the beginning. It’s a great ideal for a product but it need so work.
Sweepstakes EntryNo
No, I do not recommend this product.
