Champion Power Equipment 3000-lb. ATV/UTV Winch Kit

SKU # 103770599
Product price

Save Up To
See price at checkout Why?
Product Rating is 4.5

Financing Available! Click here for more details...



Delivery Options

Protect Your Purchase

We'll fix it, replace it, or reimburse you for it. Learn More

power plus

Item Information

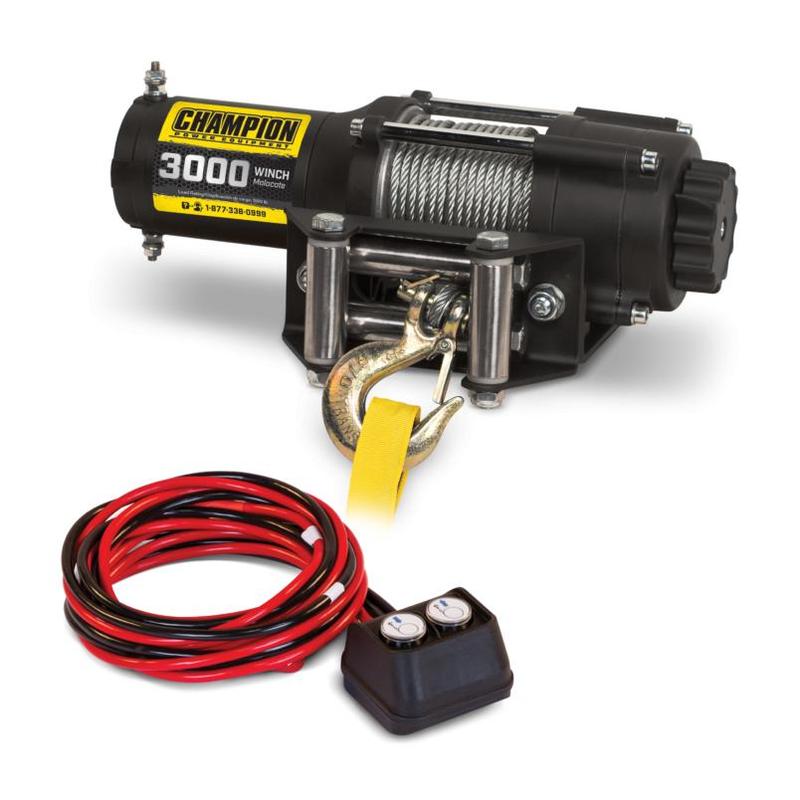

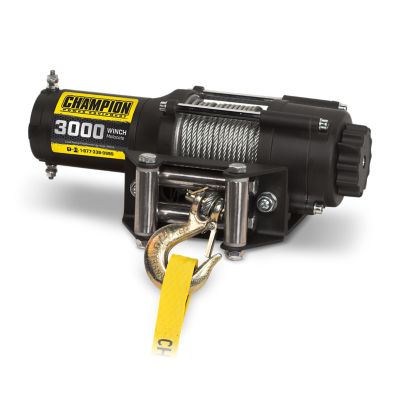

The Champion Power Equipment 13004 3000 lb. ATV/UTV Winch Kit is designed for powerful and reliable winching with your ATV or UTV. This winch kit has a 3000 lb. max rated line pull. It has efficient planetary gear and mechanical braking systems with a 171:1 gear reduction ratio, 1.3 HP (12V DC) permanent magnet motor and comes with a convenient, ergonomic handle bar mounted remote control for powering the line in and out. Other standard features include a free spooling clutch, rugged, latched clevis hook and 45.9 ft. x 3/16 in. galvanized super duty aircraft cable. It also comes with a roller fairlead and mounting channel - everything you need to start winching.

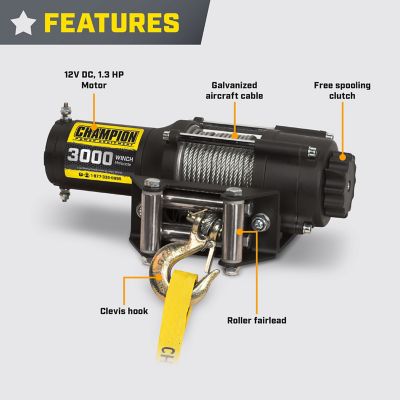

  • Powerful - 3000 lb. max rated line pull and 1.3 HP permanent magnet motor
  • Bonus Accessories - roller fairlead, mounting channel, handle bar mounted remote control
  • 45.9 ft. super duty aircraft cable with rugged, latched clevis hook
  • Efficient planetary gear and dynamic braking systems
  • Champion Support - 2 year limited warranty with FREE lifetime technical support

Specification Description
Brake Type: Mechanical
Brand: Champion Power Equipment
Clutch: Freespooling
Drum Capacity - Strap: 49 ft.
Drum Capacity - Wire Rope: 49 ft. of 5/32 in.
Fairlead Included: Yes
Fairlead Type: Roller
Gear Ratio: 179:01:00
Horsepower: 1.3 HP
Line Pull: 3,000 lb.
Line Speed: 4.3 FPM
Mounting Bolt Pattern (W x L): 4-6-5/8 in. x 3 in.
Mounting Hardware Included: Yes
Number of Speeds: 1
Product Height: 4-1/8 in.
Product Length: 12-7/8 in.
Product Weight: 19.8 lb.
Product Width: 4-1/8 in.
Remote Control: Yes
Rope Diameter: 3/16 in.
Rope Length: 46 ft.
Rope Type: Galvanized Aircraft Cable
Volts: 12 V
Warranty: 2-Year Limited
Power Type: 12 Volt
Product Type: Electric Winches
Manufacturer Part Number 13004
Champion Power Equipment 3000-lb. ATV/UTV Winch Kit is rated 4.5 out of 5 by 4.
Rated 5 out of 5 by from Awesome! Great winch for its size and cost. Has all the options of the most expensive out there and just as good quality.
Date published: 2017-03-02
Rated 5 out of 5 by from Great way to waste money! I bought it for my quad to plow with but wouldn't even lift a 50 pound plow. Oh well. Better luck with warn.
Date published: 2014-10-28
Rated 4 out of 5 by from Great Value I bought this for my car hauler and the myriad of projects that car hauler undertakes. With the pillow block the pull doubles, and will pull a car onto the trailer fairly easily as long as all the tires are aired up. Although I would not recommend it for really heavy loads, it has done great so far. Not the greatest quality for sure, but certainly not the worst either. For the price it is hard to beat.
Date published: 2013-12-18

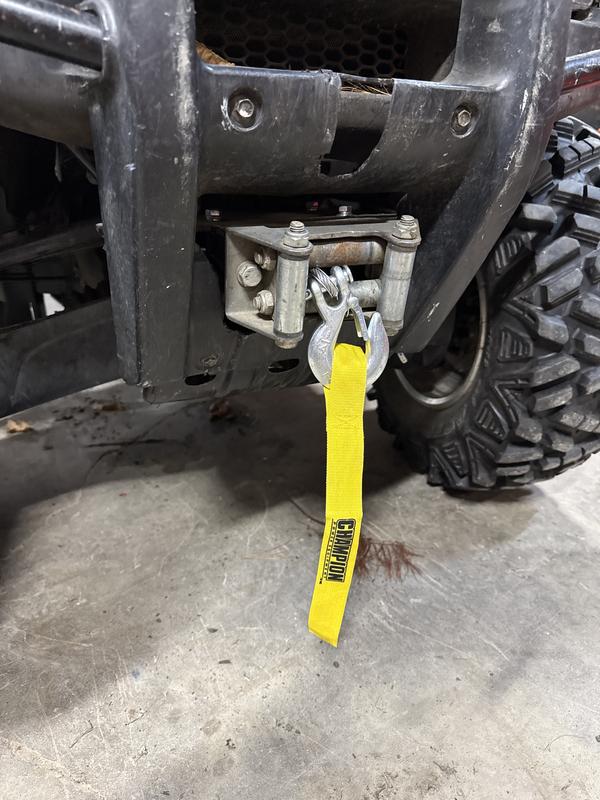

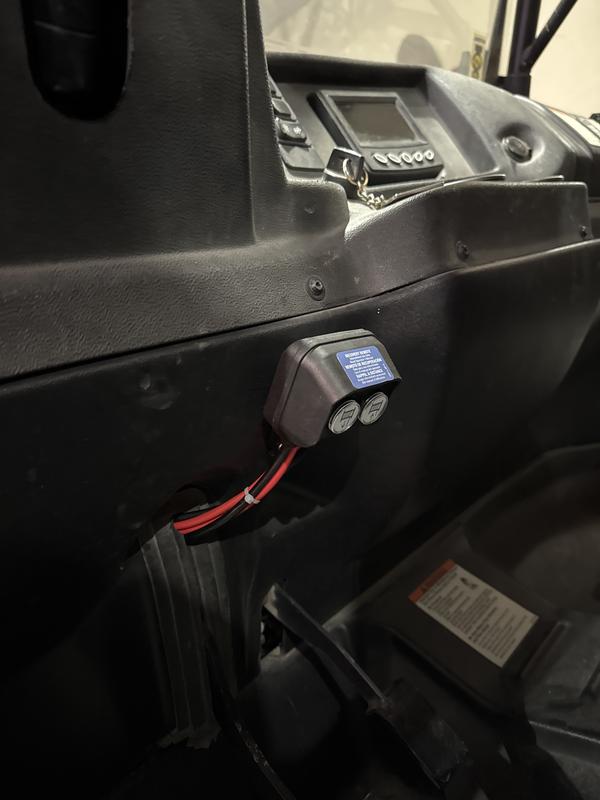

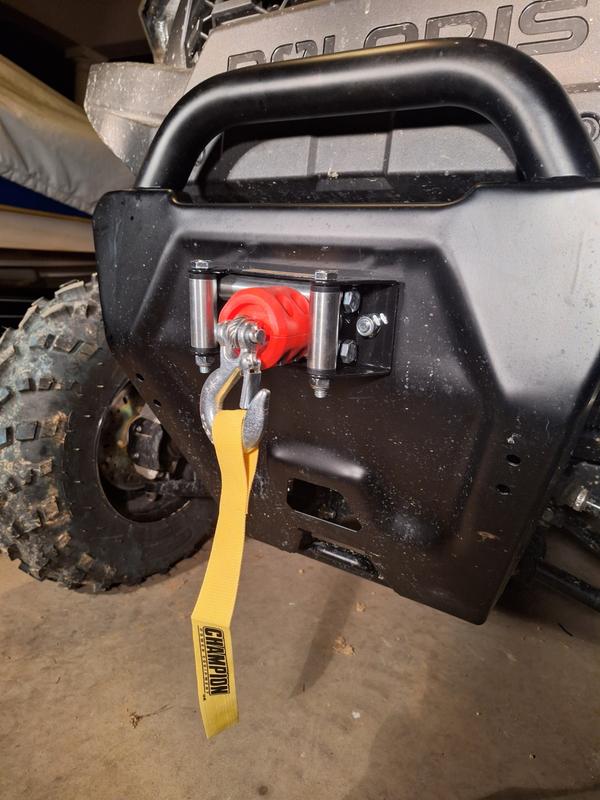

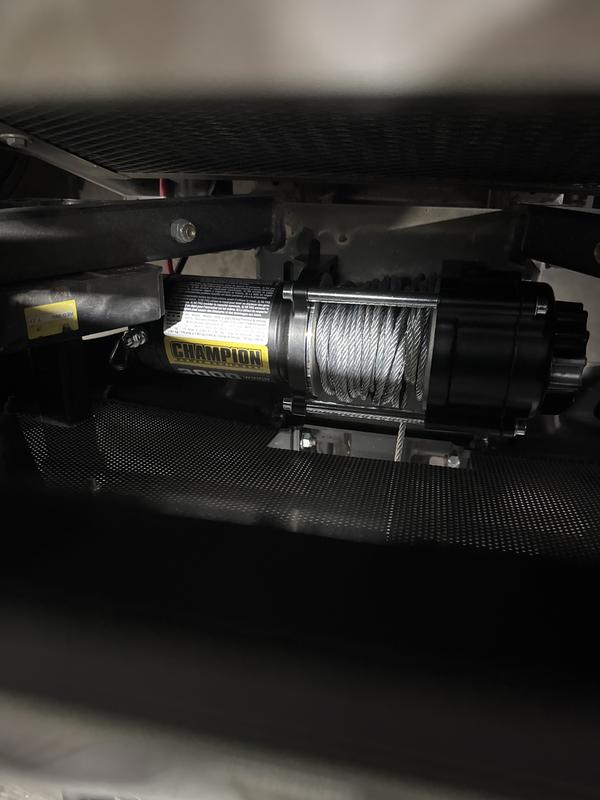

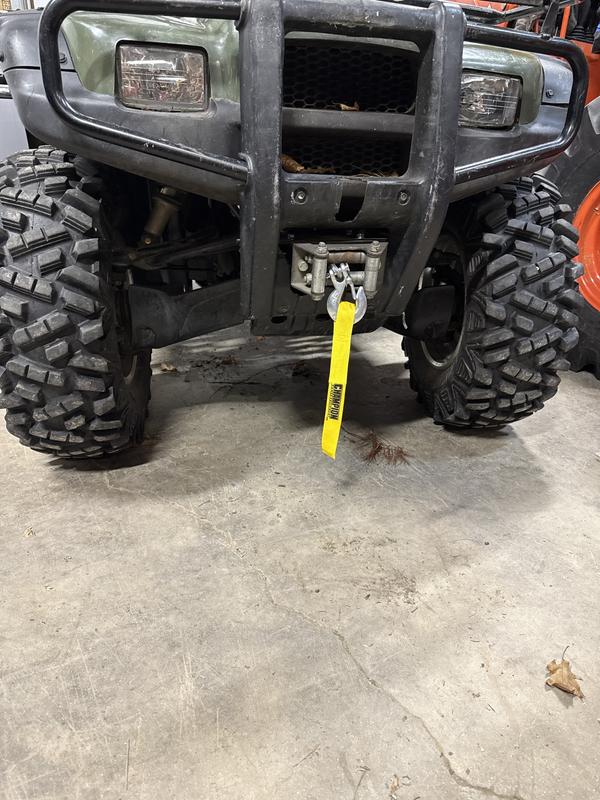

Rated 4 out of 5 by from Great value for an ATV winch I purchased this winch a couple months ago for my ATV and installed it myself. Overall, I'm very satisfied with this winch. For the price, it serves my needs and has done just fine.  The winching speed is good (Was concerned with that at first) and it was simple to install. The mounting brackets fit good, just had to drill two holes onto the mounting plate that came with the ATV. My only gripe I have is I wish the remote had a 2nd hot wire so I could have connected it to the ignition or an auxiliary power source.  With the current setup, I had to connect directly to the battery. The winch always has power, even when the ATV is off.  Could see that being a problem for someone with children. Other than that, for the price you can't beat it.
Date published: 2013-10-31
  • y_2018, m_10, d_17, h_15
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.8
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_4
  • loc_en_US, sid_103770599, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_tractorsupply
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • LOCAL, getContent, 4ms

Can this winch be mounted on a 2016 Polaris ranger midsize 570-4 crew?

Asked by: 1 daddy
Yes, but it will require an additional, vehicle specific mounting kit which Champion does not manufacturer. You can get these kits from companies such as KFI Products.
Answered by: Champion Power Expert
Date published: 2017-02-27
