Champion Power Equipment 3500-lb. ATV/UTV Synthetic Rope Winch Kit

Shop all Champion Power Equipment

Item # 130433199

$179.99

Add a protection plan

What's included

Powersport plans are not available in CA & MD.

Neighbor’s Club Members earn points with purchases.

Shop all Champion Power Equipment

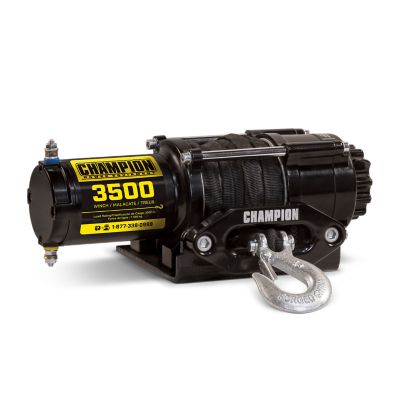

Champion Power Equipment 3500-lb. ATV/UTV Synthetic Rope Winch Kit

Item # 130433199

$179.99

New Cardmembers earn a $20 Reward^‡ with qualifying purchase of $20 or more plus earn 5% in Rewards⁺ on this purchase. Valid through 8/9/26.

This item is available online only

Delivery to

Free standard delivery on online footwear & Clothing purchases of $49 and over.

Add a protection plan

What's included

Powersport plans are not available in CA & MD.

Neighbor’s Club Members earn points with purchases.

The Champion Power Equipment 3,500 lb. ATV/UTV Synthetic Rope Winch Kit includes everything you need to start winching. with a rated line pull of 3500 lb., you can mount this winch on your ATV or side by side with the included mounting plate to quickly harness the strength of its 1.4-horsepower (12V) DC permanent magnet motor. Made from hi-tech polyethylene, the high flexibility and low weight of the synthetic rope is designed to prevent kinking, plus the rope won't fray or curl. Synthetic rope stores less kinetic energy and will not recoil with as much force as steel, and if it breaks, it can be repaired in the field, plus it floats so water recovery is easier. Since it's free of wire splinters or burrs often found in steel rope, there's less chance of injury. Designed with a stainless-steel thimble and protective sleeve, the 50 ft. by 3/16 in. synthetic winch rope is guided onto the drum through the fairlead. Featuring a black anodized finish, the lightweight aluminum hawse fairlead is precisely machined to maximize the life of the synthetic rope. The three-stage planetary gear system along with the handlebar-mounted remote control and free-spooling clutch offer excellent control while winching. Get a Champion rope winch today.2 Year Limited Warranty

For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.

Gear reduction ratio of 171:1
Line speed of 3.3 ft. per minute with a full load
9.8 ft. per minute with no load
Drum measures 1.5 by 3.2 in.
Heavy-duty clevis hook and handy strap
Compact and lightweight rope winch tool is anything but lightweight when it comes to power
Rope winch is a necessary tool for any situation you might encounter
Champion Support and our nationwide network of service centers will back up your purchase with a 2-year limited warranty and FREE lifetime technical support
Synthetic rope winch stores less kinetic energy and will not recoil with as much force as steel, and if it breaks, it can be repaired in the field; plus it floats so water recovery is easier
WARNING: for RESIDENTS of CALIFORNIA: This product contains chemicals known to the State of California to cause cancer and birth defects and other reproductive harm.
Warning: 1) Read and follow all instructions before operating winch. 2) DO NOT use as hoist. 3) DO NOT use this winch for lifting or moving people or animals. 4) DO NOT exceed rated capacity. 5) DO NOT wrap cable around any object and hook back into itself. 6) Failure to head these markings may result in personal injury and/or property damage.
Caution: Must be fully engaged to power.
Warning: Avoid cable injury keep clear.

Brand	Champion Power Equipment
Country of Origin	Imported
Braking Mechanism	Dynamic
Brand Compatibility	Champion
Clutch Type	Free-spooling
Engine Brand	N/A
Engine Displacement	N/A
Engine Type	None
Features	Cable Included, Fairlead Included, Mounting Hardware Included, Remote Control
Gear Ratios	171:1
Horsepower	1.4 HP
Line Capacity	50 ft.
Line Diameter	3/16 in.
Line Length	50 ft.
Line Pull Capacity	3,500 lb.
Line Speed	3.3 FPM
Maximum Operating Range	10.3 ft.
Model Compatibility	ATV/UTV
Mounting Bolt Length	4.9 in.
Mounting Bolt Width	3 in.
Number of Speeds	1
Power Type	Electric
Primary Material	Steel
Product Height	4.2 in.
Product Length	13 in.
Product Weight	18.3 lb.
Product Width	4.1 in.
Line Type	Rope
Voltage	12V
Warranty	2 Year Limited
Motor Type	Electric
Manufacturer Part Number	100428

Q&As

1 - 3 of 3 Questions

Q: Does this have an adapter to plug into a cigarette lighter for its power? If not, how?

7 years ago

1 Answer

A: It does not plug into the cigarette lighter, but instead connects directly to the vehicle's 12V DC battery.
7 years ago
Helpful?

Q: How many amps does this draw at full load. I am wanting to add a fuse

7 years ago

1 Answer

A: At 3,500lbs of pull, this winch can draw up to 230A.
7 years ago
Helpful?

Q: Will it fit 2013 Mule XC

7 years ago

1 Answer

A: The winch comes with a flat mounting plate. You will need to purchase a third party, vehicle specific mounting system if you do not have a flat surface to mount the plate to. If you need help finding this, you can contact us at SUPPORT@CPEAUTO.COM. Thank you.
7 years ago
Helpful?

Items You May Like

Reviews

Rating Snapshot

Select a row below to filter reviews.

166 reviews with 5 stars.

47 reviews with 4 stars.

3 reviews with 3 stars.

1 review with 2 stars.

2 reviews with 1 star.

Overall Rating

4.7

192 out of 197 (97%) reviewers recommend this product

Review this Product

Select to rate the item with 1 star. This action will open submission form.

Select to rate the item with 2 stars. This action will open submission form.

Select to rate the item with 3 stars. This action will open submission form.

Select to rate the item with 4 stars. This action will open submission form.

Select to rate the item with 5 stars. This action will open submission form.

Adding a review will require a valid email for verification

purchase
installation
satisfaction
price
quality
value
snow
durability

1 to 4 of 219 Reviews .

1 – 4 of 219 Reviews

glad2badad

Virginia

Review 1

Age65 or over

GenderMale

5 out of 5 stars.

Easy to install and operates well overall.

17 days ago

Primarily purchased this for use with a snow plow. Installation was fairly straight-forward on my Yamaha Kodiak 450 (2026). More time was spent routing the wires than anything else. The product details are a bit misleading in that there really isn't a "remote" - the unit has a handlebar mounted controller with two rocker switches. BTW - I thought the unit wasn't working correctly after installation until I figured out you have to push EXACTLY in the center of the buttons to activate the switches. The control unit for the handlebars is kind of large and bulky.

Yes, I recommend this product.

Originally posted on Champion Power Equipment

Bloodhound

Georgia

Review 1

Age65 or over

GenderMale

5 out of 5 stars.

New install and very nice so far

2 months ago

Just received and installed this winch on a Honda Pioneer 520. I can't speak to longevity, but initial testing (ok, playing) showed it to be quiet and with plenty of torque. The unit appears solidly built and the machining for the mounting was spot on. One suggestion: While I know there are any number of mounting scenarios out there and Champion cannot possibly address them all, at least two very popular winch-ready bumpers for these UTV's, notably Strong Made and KFI, are out there. It would be very helpful to allow for these installations in the instructions and mention the substitute bolt size needed for installation on these (if not go ahead and include them in the package). In my case, with a Strong Made bumper, the process was placing mounting channel (plate) on bumper > winch on mounting channel > then bolt all together. I had to do a little figuring to find that I needed to replace the included M8x25 bolts with M8x30 for a perfect fit. All in, I am quite pleased with this and it looks pretty sharp, to boot.

Yes, I recommend this product.

Originally posted on Champion Power Equipment

dune74

Review 1

5 out of 5 stars.

great winch

2 months ago

great product easy to install cant go wrong with champion brand

Originally posted on Champion Power Equipment

GMoss

Review 1

Age45 to 54

GenderMale

5 out of 5 stars.

Great Winch love the sythetic rope vs cable option

3 months ago

I bought this winch 1 month ago now to replace the dealer installed winch on my 650 max xt quad. This winter has been a bad one with no shortage of snow so i waited to review after putting it through the tests. It has performed flawlessly with quite a few big snowfalls since installing it. And my driveway is 150 feet long so not the easiet to clear. The installation was also so efficient it just fit right in to the same bracket my other winch from the dealer came off. Done the replacement in less than an hour, i also used all the original wiring from the original but have kept all the parts that came with my new winch to replace them as required. The bolt holes were very precise and fit perfectly with no trouble having to modify or adjust for placement allowing for a very easy installation. The winch has no problem with power an lots of torque when it comes to lifting the plow in the wettest and heaviest snow conditions.

Yes, I recommend this product.

Originally posted on Champion Power Equipment
