Traveller 12V ATV Electric Winch, 2,500 lb. Capacity

SKU: 129250299
Traveller 12V ATV Electric Winch, 2,500 lb. Capacity
Enter Zip Code for price More Info
Product price

Save Up To
See price at checkout More Info
Product Rating is 4.5
4.5
 (161)

Quantity

TSC of pittsfield #728
898 crane ave ste 201
pittsfield, MA 01201
(413) 236-5871
TSC of pittsfield #728
898 crane ave ste 201
pittsfield, MA 01201
(413) 236-5871
Check Availability at Other Stores
Standard Delivery Not Available to
Notice: This item will ship within 0 days.
This product may require up to 0 additional days for order processing prior to shipping.
Change Delivery Location
Protect your purchase with Power Plus
Protect Your Purchase Click here for more details...

We'll fix it, replace it, or reimburse you for it.

Item Information

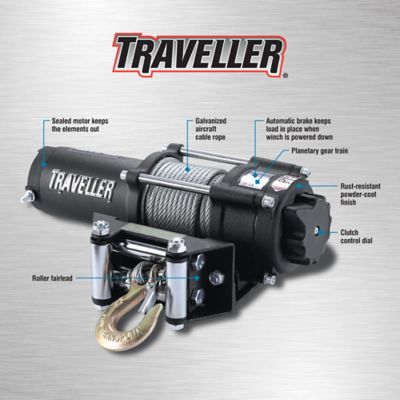

The Traveller 12V ATV Electric Winch works with ATVs, boats and snowplows.

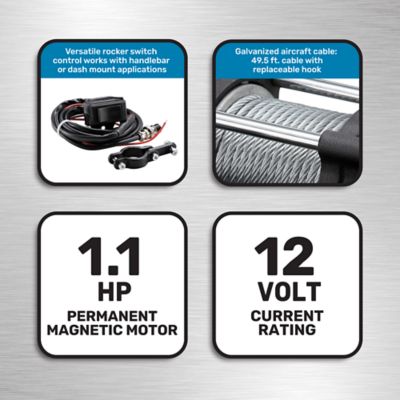

  • Permanent magnet DC 12V motor with 1.1 HP output
  • Maximum Load Capacity: 2500 lb.
  • Automatic braking action
  • Free Spooling clutch
  • Remote switch with handlebar mount
  • Roller fairlead minimizes damage to wire when pulling from different angles
  • Universal flat bed winch mounting plate
  • Comes with 46 ft. x 3/16 in. of galvanized aircraft cable

Specification Description
Product Length: 16 in.
Package Quantity: 1
Application: Works with ATVs, boats, and snowplows
Power Type: Electric
Product Width: 10-7/16 in.
Material: Steel
Product Weight: 24.26 lb.
Brand: Traveller
Warranty: 1 Year Limited
Product Height: 7-5/16 in.
Product Finish: Powder Coated
Manufacturer Part Number EWP2500A
Traveller 12V ATV Electric Winch, 2,500 lb. Capacity is rated 4.5 out of 5 by 161.
Rated 1 out of 5 by from Horrible I installed this winch today. My primary use for this winch was to plow snow with my atv. I plowed my driveway just fine when I got to the second driveway and hour later it seized up and stopped winding back in I will never by another traveler's winch I will spend the extra money and buy one that I know for a fact will last me more than 2 hours.
Date published: 2020-01-19
Rated 5 out of 5 by from Rescue vehicle Great winch, used to pull other atv and utv drivers out of mud holes.
Date published: 2020-01-17
Rated 5 out of 5 by from Having fun on the Trails Purchased and placed on a Razor. Thanks to the platform plate included, this was quite easy to install and adapt to the front of the side by side. Wiring was long enough to allow for a professional finish to the dash and we placed the remote into the front for easier use. Has assisted with roll over buggy (fortunately not our own). I would recommend this product.
Date published: 2020-01-16
Rated 5 out of 5 by from Winch Works great on our 4 wheeler to be able to use blade
Date published: 2020-01-06
  • y_2020, m_1, d_25, h_12
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.4
  • cp_1, bvpage1
  • co_hasreviews, tv_43, tr_118
  • loc_en_US, sid_129250299, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_tractorsupply
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • LOCAL, getContent, 4ms
  • REVIEWS, PRODUCT

The little red wire on the rocker switch goes to the "positive of the electric lock." What exactly is the "positive of the electric lock?" I can't find anything about an electric lock

Asked by: Dcgator
If the winch is being used on ATV/UTV, please connect the wire to the positive of electric lock; if not used on AVT/UTV, please connect the wire to the positive side of battery. The red wire is the positive of the electric lock.
Answered by: jessicasm
Date published: 2019-11-04

Can you email me the wiring diagram? Where does the red wire from the controller attach to?

Asked by: JimButton
Please check your email for requested information.
Answered by: ErlindaC
Date published: 2019-04-02

I accidentally destroyed the in/out switch is a replacement part available for the Traveller 2500 12V winch?

Asked by: forestmaster
For replacement parts, and manufacture warranty information please contact Customer Service at (888) 376-9601 available Monday-Friday 8am-8pm (EST), Saturday 8am-5pm (EST).
Answered by: jessicasm
Date published: 2019-10-07

Can this be mounted to a wall or post?  Need it to pull a small jon boat up a bank.

Asked by: Jlcyto
Yes, this 2500lbs winch can be mounted to a wall or post to pull a small boat.
Answered by: jessicasm
Date published: 2019-08-02

Where does the little red wire on the switch get hooked to???????

Asked by: Gf42
If the winch is being used on ATV/UTV, please connect the wire to the positive of electric lock; if not used on AVT/UTV, please connect the wire to the positive side of battery.
Answered by: jessicasm
Date published: 2019-09-03

Purchased 12V 2500 Traveller Winch to install on my golf cart.  No Problem until wiring Wiring picture is microscopic and I cannot see the wire routing.  Battery no problem, winch no problem. Switch and relay are not clear as to the proper connections

Asked by: Stogie12
Please check your email for requested document.
Answered by: Tbeacher
Date published: 2019-01-16

Does this winch fit a 2003 yamaha kodiak and does it come with hardware to attach to 48 inch cycle country atv snowplow

Asked by: Duderider7
Yes, it can fit a 2003 yamaha Kodiak and it comes with M8 bolts to attach to 48inch cycle county ATV snowplow. Please check your email for additional information.
Answered by: Tbeacher
Date published: 2019-02-22

Will this fit a 2012 Kawasaki Mule 4010?

Asked by: Josbok
Yes, this model is compatible with your unit.
Answered by: ErlindaC
Date published: 2019-03-16
