Carry-On Trailer 1/2 in. x 20 TPI Hub Press-In Wheel Studs, 5-Pack
Item # 1075618
Stocked & Ready
$19.99
Shopping at
Grassland (franklin) TN
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.

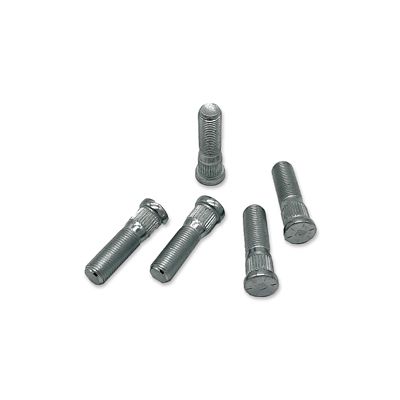

The Carry-On Trailer HUB Press-In Wheel Studs are used for replacement on hubs that have stripped threads or bent studs that have drive-in type hub studs. These press-in wheel studs are 2-1/8 in. long. Our durable wheel studs fit most 2,000 lb. and 3,500 lb. hubs.
- Number of studs: 5
- Press-in wheel studs are 2-1/8 in. long
- Shank length: 1.95 in.
- Thread pitch: 1/2in. X 20
- Durable wheel studs fit most 2,000 lb. and 3,500 lb. hubs
- Used for replacement on hubs that have stripped threads or bent studs that have drive-in type hub studs
- Press-In Or Drive-In; Use With 509T Lug Nuts
| Brand | Carry-On Trailer |
|---|---|
| Country of Origin | Imported |
| Compatibility | Trailers |
| Drive Type | Hub studs |
| Head Style | Flat |
| Package Quantity | 5 |
| Primary Material | Steel |
| Product Weight | 6.25 oz. |
| Stud Length | 2.125 in. |
| Warranty | 1 Year Limited |
| Manufacturer Part Number | 522T |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 8 of 8 Questions
Newest questions
Q: Good morning what’s the knul diameter?
11 months ago1 Answer
- A: Knurl Diameter is .62 flute OD.11 months agoHelpful?
Q: Knurl diameter?
3 years ago1 Answer
- A: On our part number 522 the maximum Knurl diameter is approximately 10-12 thousandths more than the stud hole diameter. The Knurling process is significantly different between manufacturers.3 years agoHelpful?
Q: What is the hardness spec on these 522T studs
4 years ago1 Answer
- A: For technical support, please contact customer.service@carry-ontrailer.com.4 years agoHelpful?
Q: Do you have any size 14 - 1 5 studs
5 years ago1 Answer
- A: For additional products please contact your local TSC store.5 years agoHelpful?
Q: Are you guys serious? Is it 1/2" or 5/8"? I've become used to no info but bad info such as this doesn't inspire much confidence in tractor supply.
6 years ago1 Answer
- A: 522T hub studs take the part# 509T lug nuts. Overall Length of stud: 2 1/8 in., Shank Length: 1.95 in., Thread Pitch: 1/2in. X 20. The 509T lug nuts are 1/2".6 years agoHelpful?
Q: What is the interference dimension? Hub hole size to Knurl OD?? For instance if the hub hole ID in a cast drum measures .520 what is the correct knurl OD max for the press on stud?? Is .005 to .010 larger acceptable??
9 years ago1 Answer
- A: On our part number 522 the maximum Knurl diameter is approximately 10-12 thousandths more than the stud hole diameter. The Knurling process is significantly different between manufacturers.9 years agoHelpful?
Q: What is the spline diameter? This needs to be measured to three decimal places i.e. 0.545. These are pressed in and need to accurate.
9 years ago1 Answer
- A: The spline on Part no. 522 is .500.9 years agoHelpful?
Q: What is the knurled diameter
9 years ago2 Answers
- A: Almost everything in the description, and in the answers, is wrong. With newly bought pack in one hand and a rule and micrometer in the other: first, the description: there are five (not four) studs in the pack. The overall length is almost exactly 2". The length under the head (the shank length) is a hair over 1-3/4". The thread is as advertised, 1/2"-20 NF. Other dimensions: the diameter of the knurled (or spline) section varies slightly: I measured 0.539" to 0.543"; best to just say .54" +/-. The knurled section starts 1/16" below the head and extends for 3/8". There is then a short (5/32") section of plain taper, followed by the threaded section, which extends to the tip (approx. 1-1/4"). Aside from the length of the spline (which has doubled), these closely match those in my 15-year-old Carryon 4x6 utility trailer, which is the important thing!5 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 8 of 8 Questions
Newest questions
Q: Good morning what’s the knul diameter?
11 months ago1 Answer
- A: Knurl Diameter is .62 flute OD.11 months agoHelpful?
Q: Knurl diameter?
3 years ago1 Answer
- A: On our part number 522 the maximum Knurl diameter is approximately 10-12 thousandths more than the stud hole diameter. The Knurling process is significantly different between manufacturers.3 years agoHelpful?
Q: What is the hardness spec on these 522T studs
4 years ago1 Answer
- A: For technical support, please contact customer.service@carry-ontrailer.com.4 years agoHelpful?
Q: Do you have any size 14 - 1 5 studs
5 years ago1 Answer
- A: For additional products please contact your local TSC store.5 years agoHelpful?
Q: Are you guys serious? Is it 1/2" or 5/8"? I've become used to no info but bad info such as this doesn't inspire much confidence in tractor supply.
6 years ago1 Answer
- A: 522T hub studs take the part# 509T lug nuts. Overall Length of stud: 2 1/8 in., Shank Length: 1.95 in., Thread Pitch: 1/2in. X 20. The 509T lug nuts are 1/2".6 years agoHelpful?
Q: What is the interference dimension? Hub hole size to Knurl OD?? For instance if the hub hole ID in a cast drum measures .520 what is the correct knurl OD max for the press on stud?? Is .005 to .010 larger acceptable??
9 years ago1 Answer
- A: On our part number 522 the maximum Knurl diameter is approximately 10-12 thousandths more than the stud hole diameter. The Knurling process is significantly different between manufacturers.9 years agoHelpful?
Q: What is the spline diameter? This needs to be measured to three decimal places i.e. 0.545. These are pressed in and need to accurate.
9 years ago1 Answer
- A: The spline on Part no. 522 is .500.9 years agoHelpful?
Q: What is the knurled diameter
9 years ago2 Answers
- A: Almost everything in the description, and in the answers, is wrong. With newly bought pack in one hand and a rule and micrometer in the other: first, the description: there are five (not four) studs in the pack. The overall length is almost exactly 2". The length under the head (the shank length) is a hair over 1-3/4". The thread is as advertised, 1/2"-20 NF. Other dimensions: the diameter of the knurled (or spline) section varies slightly: I measured 0.539" to 0.543"; best to just say .54" +/-. The knurled section starts 1/16" below the head and extends for 3/8". There is then a short (5/32") section of plain taper, followed by the threaded section, which extends to the tip (approx. 1-1/4"). Aside from the length of the spline (which has doubled), these closely match those in my 15-year-old Carryon 4x6 utility trailer, which is the important thing!5 years agoHelpful?
