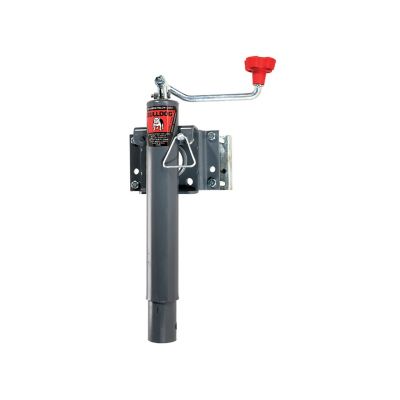

Bulldog 2,000 lb. Capacity Top Wind Bolt-On Jack, 10 in. Travel, Bolt-On Swivel Bracket
Bulldog 2,000 lb. Capacity Top Wind Bolt-On Jack, 10 in. Travel, Bolt-On Swivel Bracket
Item # 116165599
$84.99
Get everything you need
Neighbor’s Club Members earn points with purchases.
Bulldog 2,000 lb. Capacity Top Wind Bolt-On Jack, 10 in. Travel, Bolt-On Swivel Bracket
Item # 116165599
$84.99
New Cardmembers earn a $75 Reward‡ with qualifying purchase of $75 or more plus earn 5% in Rewards+ on this purchase. Valid through 7/12/26.
Out of stock at
Grassland (franklin) TN
Delivery to
Pickup Nearby at FRANKLIN TN(6.7) miles FREE
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.
The Bulldog 2,000 lb. Capacity Top Wind Bolt-On Jack offers 10 in. of travel. It has an ergonomic design and offers proven reliability for long term use at rated loads. Precision fitted parts in the trailer jack provide extra stability.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Ergonomic design of the bolt-on swivel trailer jack is smooth and comfortable
- Dependable vertical and side load capacity
- Proven reliability for long term use at rated loads
- Precision fitted parts in the trailer jack provide extra stability
- Clear zinc inner tubes
- Lift capacity of the swivel trailer jack: 2,000 lb.
- Topwind design allows for efficient operation of the swivel trailer jack
- 10 in. travel height
| Brand | Bulldog |
|---|---|
| Country of Origin | Imported |
| Base Type | None |
| Compatibility | Trailers |
| Crank Type | Top Wind |
| Extended Height | 21 in. |
| Features | Round Trailer Jack, Side Mount, 2,000 lb. Lift Capacity, Top Wind, Bolt-On, 10 in. Travel |
| Handle Length | 6.65 in. |
| Hoist Lift Height | 21 in |
| Hoist Weight Capacity | 2000 lb |
| Lift Capacity | 2,000 lb. |
| Mechanism Type | Mechanical |
| Mounting Type | Bolt-On |
| Power Type | None |
| Primary Material | Steel |
| Product Height | 3.5 in. |
| Product Length | 6.8 in. |
| Product Weight | 12 lb. |
| Product Width | 16.8 in. |
| Retracted Height | 11 in. |
| Jack Style | Swivel |
| Tube Width | 2.7 in. |
| Warranty | Limited 5 Year |
| Manufacturer Part Number | 151443 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 9 of 9 Questions
Newest questions
Q: how do you mount a wheel
a month ago1 Answer
- AI-generatedA: You can mount a wheel by purchasing a compatible wheeled foot or caster, which typically attaches to the inner tube using a pin or clip. While this jack does not include a wheel, it is designed to be compatible with both flat plates and wheeled feet for added flexibility.a month agoHelpful?
Q: Why don't you supply a foot for this type jack.
6 months ago1 Answer
- A: Tractor Supply does not include a foot with the Bulldog 2,000 lb. Capacity Top Wind Bolt-On Jack because this specific model is designed for versatility.6 months agoHelpful?
Q: The distance from the middle of my trailer tongue to the ground is 12.0". Will this retract enough if I put a plate on the bottom?
5 years ago1 Answer
- A: Thank you for your question! The maximum product height is 21 in. and the retracted height is 11 in. For additional assistance please contact Bulldog directly at 1-800-632-3290.5 years agoHelpful?
Q: Why don’t you supply a foot with this model like all the other similar trailer jacks?
5 years ago1 Answer
- A: You can purchase a flat foot or a wheeled foot or this product. I bought the flat foot for mine because the 5ftx8ft trailer is light enough to move when empty, I did not need a wheeled foot.5 years agoHelpful?
Q: What is the outside extending tube diameter?
5 years ago1 Answer
- A: The outside diameter of the extending tube is 2"5 years agoHelpful?
Q: I have 4 of these. I need to purchase 4 of the swivel mounting pieces and snap rings? During many moves have lost those parts. Not the piece attached to Jack. Pieces that attach to trailer. Thank you.
7 years ago1 Answer
- A: We do not offer the bolt-on mounting in a service kit. We do have a weld on version, BULLDOG part number 500242. The snap ring is 500241.7 years agoHelpful?
Q: What size u-bolts will you need to install
8 years ago1 Answer
- A: The item does come with a mounting kit which includes 4 bolts 3/8-16 x 4.00" 4 nylon 38-16 lock nuts and 2 mounting straps. U-bolts are not suggested for installation as they would restrict the swivel action for the jack.8 years agoHelpful?
Q: will this mount to 2"x4" FRAME? Thanks!
8 years ago1 Answer
- A: Yes this will fit the 4” wide frame . It can go up to 4.435 center to center .8 years agoHelpful?
Q: Does the jack have a grease zerk so that it can be lubricated easily?
9 years ago1 Answer
- A: There is no zerk on this unit.9 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 9 of 9 Questions
Newest questions
Q: how do you mount a wheel
a month ago1 Answer
- AI-generatedA: You can mount a wheel by purchasing a compatible wheeled foot or caster, which typically attaches to the inner tube using a pin or clip. While this jack does not include a wheel, it is designed to be compatible with both flat plates and wheeled feet for added flexibility.a month agoHelpful?
Q: Why don't you supply a foot for this type jack.
6 months ago1 Answer
- A: Tractor Supply does not include a foot with the Bulldog 2,000 lb. Capacity Top Wind Bolt-On Jack because this specific model is designed for versatility.6 months agoHelpful?
Q: The distance from the middle of my trailer tongue to the ground is 12.0". Will this retract enough if I put a plate on the bottom?
5 years ago1 Answer
- A: Thank you for your question! The maximum product height is 21 in. and the retracted height is 11 in. For additional assistance please contact Bulldog directly at 1-800-632-3290.5 years agoHelpful?
Q: Why don’t you supply a foot with this model like all the other similar trailer jacks?
5 years ago1 Answer
- A: You can purchase a flat foot or a wheeled foot or this product. I bought the flat foot for mine because the 5ftx8ft trailer is light enough to move when empty, I did not need a wheeled foot.5 years agoHelpful?
Q: What is the outside extending tube diameter?
5 years ago1 Answer
- A: The outside diameter of the extending tube is 2"5 years agoHelpful?
Q: I have 4 of these. I need to purchase 4 of the swivel mounting pieces and snap rings? During many moves have lost those parts. Not the piece attached to Jack. Pieces that attach to trailer. Thank you.
7 years ago1 Answer
- A: We do not offer the bolt-on mounting in a service kit. We do have a weld on version, BULLDOG part number 500242. The snap ring is 500241.7 years agoHelpful?
Q: What size u-bolts will you need to install
8 years ago1 Answer
- A: The item does come with a mounting kit which includes 4 bolts 3/8-16 x 4.00" 4 nylon 38-16 lock nuts and 2 mounting straps. U-bolts are not suggested for installation as they would restrict the swivel action for the jack.8 years agoHelpful?
Q: will this mount to 2"x4" FRAME? Thanks!
8 years ago1 Answer
- A: Yes this will fit the 4” wide frame . It can go up to 4.435 center to center .8 years agoHelpful?
Q: Does the jack have a grease zerk so that it can be lubricated easily?
9 years ago1 Answer
- A: There is no zerk on this unit.9 years agoHelpful?
Similar Items
-
-
-
-
Top Rated
-
-
-
Top Rated
-
-
Top Rated
-
-
-
Reviews
Summary of Reviews
The product is described as well-built, with a smooth and easy-to-operate crank. Customers appreciate the swivel feature, which allows for easy maneuvering and keeps the jack out of the way when not i...
- English
- German
- French
- Spanish
- Portuguese
- Italian
- Korean
- Chinese
- Japanese
- Arabic
- purchase
- installation
- ease of use
- capacity
- mounting
- flexibility
- curbside pickup
- holding
1 to 4 of 151 Reviews .
1 – 4 of 151 Reviews
Most Recent
Anonymous
Central Kentucky
Review 1
5 out of 5 stars.
Trailer jack
5 months ago
Easy to install and works perfectly.
SweepstakesYes
Yes, I recommend this product.
Long Island, NY
Reviews 3
1 out of 5 stars.
No hardware included. Ordered online for pickup.
a year ago
Did not come with any mounting hardware....
SweepstakesYes
Tennessee
Reviews 3
2 out of 5 stars.
Not Super Heavy Duty
a year ago

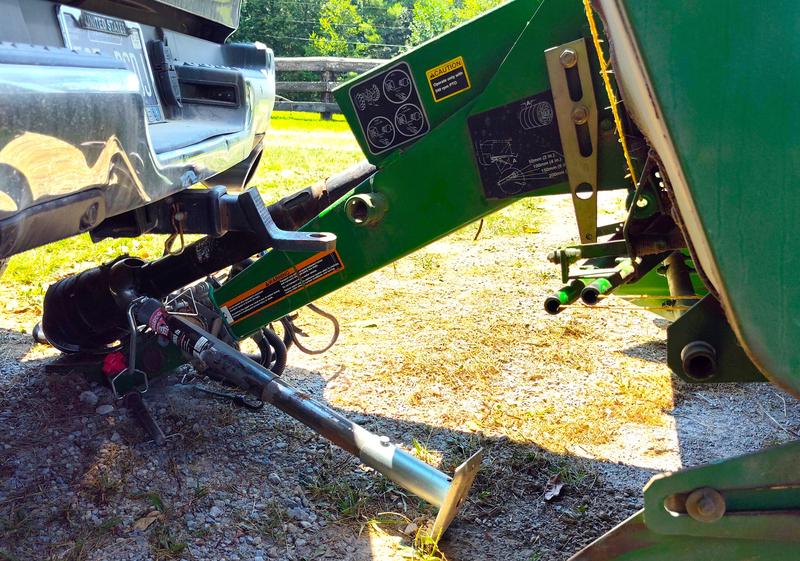

Item was needed for my hay baler's broken jack. That one used a swivel, pipe-mount but it snapped off. Rather than go through the trouble of welding the pipe mount back on, I thought I'd go with a bolt-on. This one seemed to fit the bill but wasn't up to snuff. First, the frame of the baler is not rectangular, but more triangular, which doesn't work well with this jack (it needs straight, parallel surfaces). Did get it on, but had to buy reinforcement brackets/plates to hold the jack on since the original ones with the jack are not heavy duty enough (they bent upon tightening). Finally, once on, there is no foot to this jack...which was o.k. since I needed a longer foot for it anyhow in order to reach the ground. Once all was installed, it 'leaned' precariously when used and didn't look like it would hold. After two uses, it didn't...it leaned on the round swivel part (which is only held on with a thin snap ring) and then broke apart & collapsed.
Bottom line--this jack may be o.k. for a light boat trailer on a perfectly flat surface, but for anything near its max rated capacity and/or on an uneven/rough surface, it won't suffice.
No, I do not recommend this product.
Review 1
4 out of 5 stars.
Asfgbmikjhhjnvddjbvcghjkjjbczzbbkllp.lopsghknvcffv
a year ago
You need to buy a base for jack because its not included
