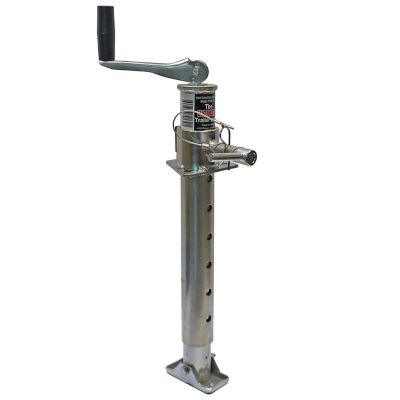

The Ultimate Trailer Jack

SKU: 105898799
The Ultimate Trailer Jack
Enter Zip Code for price More Info
Product price

Save Up To
See price at checkout More Info
Product Rating is 4.5


TSC of harleysville #2090
265 harleysville pike
harleysville, PA 19438
(215) 256-6555
TSC of harleysville #2090
265 harleysville pike
harleysville, PA 19438
(215) 256-6555
Check Availability at Other Stores
Standard Delivery Not Available to
This item will ship within 0 days.
Change Delivery Location

Item Information

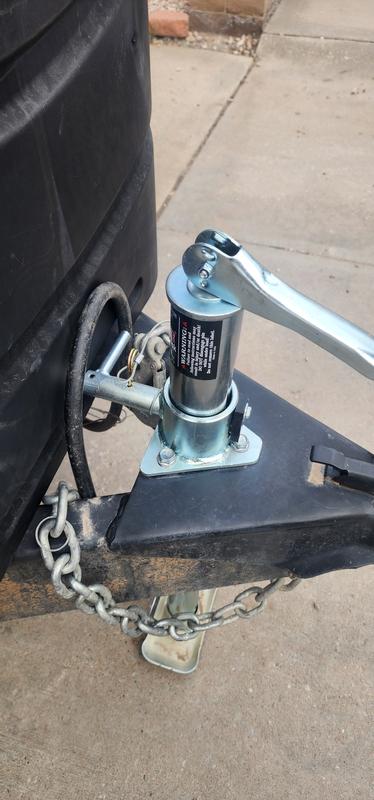

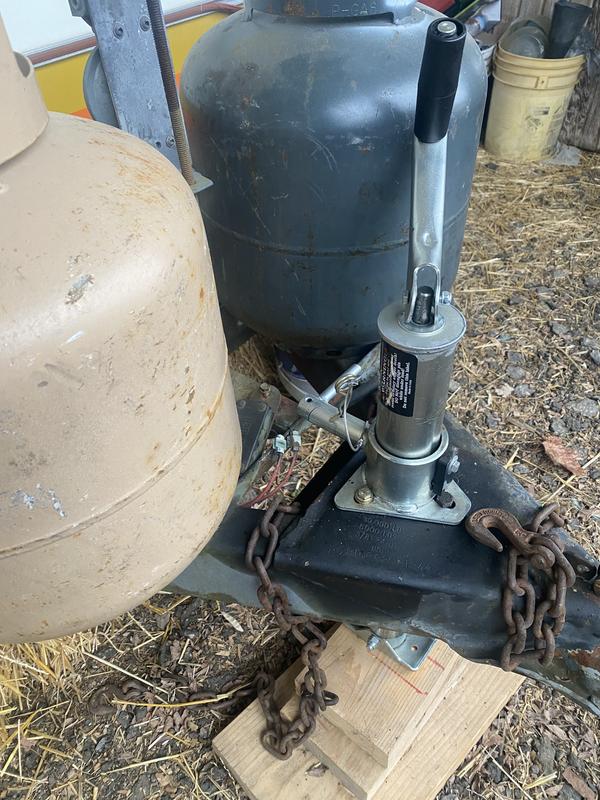

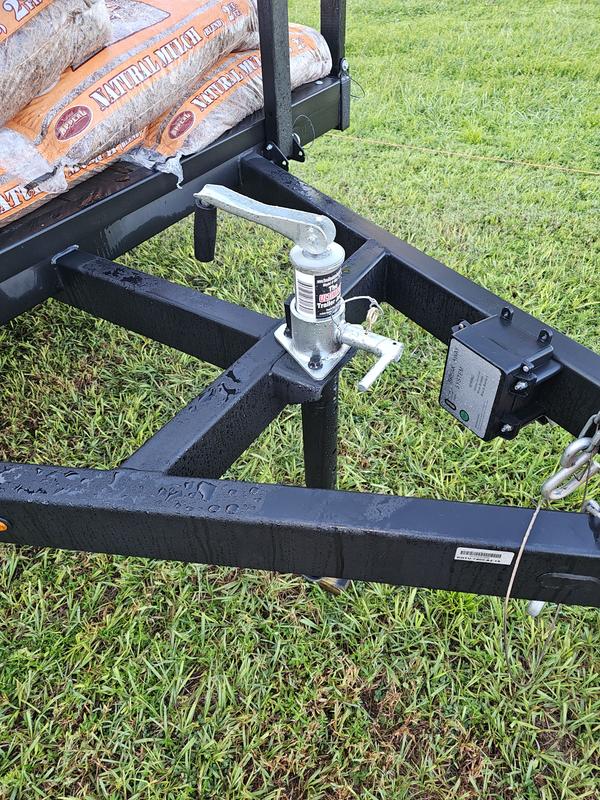

Try The Ultimate Trailer Jack on your boat trailer, four-wheeler trailer, jet ski trailer, lawn mower trailer, farm equipment, camper trailer, utility trailer and cargo trailer. Jack retracts flush with bottom of trailer eliminating potential damage to the jack and the trailer as a result of hang-ups or snags while crossing uneven terrain. Mounting bracket may be welded or bolted on. Easy grip handle for safer and easier cranking.

  • Quick release locking pin allows for faster operation
  • All metal construction for value and durability
  • Interior roller bearings for product performance, easier cranking power and jack longevity
  • #2000 lift capacity
  • Zinc coated for maximum corrosion resistance
  • Rapid quick release adjustment saves time

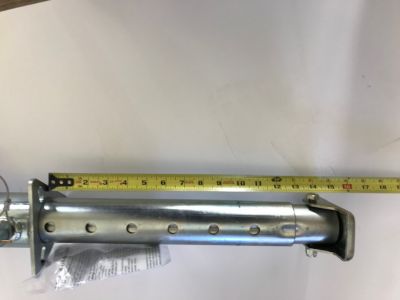

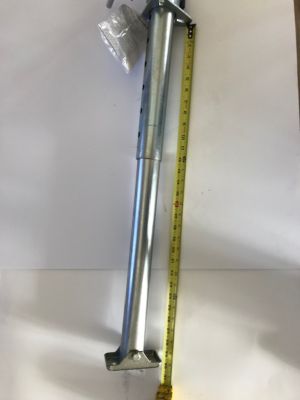

  • 14 in. of rapid adjustments with seven available height settings
  • Pre-drilled for optional foot pad or wheel
  • In addition to the rapid adjustments, there is an additional 14 in. available by cranking the handle
  • No extra blocks needed under jack to gain extra height

Specification Description
Includes Foot or Wheel: No foot or wheel
Support Capacity: 3,000 lb.
Maximum Product Height: 26 in.
Crank Type: Top Wind
Lift Capacity: 2,000 lb.
Jack Style: A-Frame
Minimum Product Height: 2 in.
Lift Height: 24 in.
Jack Tube Width: 2-1/4 in.
Brand: The Ultimate Trailer Jack
Manufacturer Part Number RDJ-2K
The Ultimate Trailer Jack is rated 4.5 out of 5 by 50.
Rated 5 out of 5 by from Well Built Jack This jack is a little pricey, but it is a well built jack and easier to operate than the standard tongue jack. I bought this jack to replace the typical bent one on my flatbed trailer that had suffered at the hands of people that didn't want to spend the time to crank it all the way up and then drove into a driveway with a dip. The jack only requires minimal cranking as it has the drop down leg that get the foot most of the way to the ground and then you just have to crank it the last few inches to get the hitch off of the trailer ball. I was impressed enough to buy another one for my shop trailer. The other really nice feature of this jack versus the other typical tongue jacks is that this one comes up much closer to the bottom of the tongue when it is fully retracted by pulling the pin and raising it to its top hole further helping to keep the jack from bottoming out when you go through a ditch or up a steep transition.
Date published: 2019-09-18
Rated 5 out of 5 by from Worth every penny This jack is pricey but is pretty slick. Glad I spent the money. One bit of advice, when I installed mine I tightened the three bolts on the trailer very tight and it caused the jack to not work. After slightly loosening each one it worked perfectly. Hitch must have been bent.
Date published: 2019-08-16
Rated 5 out of 5 by from Time saver and no more dragging! Two years now and no problems. Being used on a tandem 16 Foot utility trailer with a 1500 LB machine loaded on it when not in use. Use spray Teflon to lubricate because oil or grease is a dirt magnet causing it to be hard to wind when dirt accumulates on the jack screw. Teflon goes on dry . Added a foot plate for the gravel area where its parked when not in use. I block the wheels front and back when unhooking the trailer and still is as easy to wind as it was when I installed it. Its a clever adaption to the old standby that been around for ages. Goes up high enough to never scrape while towing to job sites. The drop and raise feature saves a lot of time and also eliminates carrying around blocks..
Date published: 2019-08-08
Rated 5 out of 5 by from Convenient Trailer Jack Stand This is a great jack which makes it easy to not have to wind up or down all the way. Also, you can lift the foot up close to the trailer if you have a low-slung trailer tongue so it will not drag. I have purchased several of these and they have worked great. The issue is when they are not raised enough and drag, they will bend and bind. Which makes them useless. So if you loan your trailer, be sure to explain how it works. My friend destroyed my last one on his gravel driveway.
Date published: 2019-07-27
  • y_2019, m_11, d_17, h_12
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.2
  • cp_1, bvpage1
  • co_hasreviews, tv_7, tr_43
  • loc_en_US, sid_105898799, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_tractorsupply
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • LOCAL, getContent, 5ms

is this Jack under a U.S Patent?

Asked by: Big Little Soft Rock
Yes, it has a U.S Patent that is good for 20 years and is printed on the sticker of every jack.
Answered by: DanielB
Date published: 2017-08-05

Is there a side mount ultimate jack available for boat trailers?

Asked by: Cheitman
No we do not offer a side mount for boat trailers.
Answered by: Alicia M
Date published: 2019-10-05

would this be a good jack for a log splitter

Asked by: raymond915
The ultimate jack will work on a log splitter provided it has A-frame mount capability. If it has the hole in center of hitch, it will work.
Answered by: NRoberts
Date published: 2019-09-17

What is the distance between the holes?

Asked by: carterhillestates
It's a standard 2 1/4".
Answered by: DanielB
Date published: 2019-10-05

How long is the cranking handle from the main vertical shaft? i.e. How much clearance do I need to crank the handle around 360 degress? My propane tank currently sits just aft of my jack. Thanks

Asked by: Paul P
The cranking handle measures 7" from the vertical shaft. Giving you a diameter of 14".
Answered by: DanielB
Date published: 2019-07-15

Can a wheel be attached and or is that a pad on the bottom of the jack?

Asked by: Joe Rapley
Yes, it is pre-drilled for optional foot pad or wheel.
Answered by: DanielB
Date published: 2019-10-05

What foot fits this jack? I tried the feet in the local TSC and they didn't fit.

Asked by: MTDiesel
We and the manufacturer would recommend SKU # 1075082.
Answered by: NRoberts
Date published: 2019-05-26

Does jack come with bolts to mount on pre drilled threaded holes on A frame?

Asked by: doubltT
This jack will fit pre-drilled holes, but unfortunately, bolts do not come with it.
Answered by: NRoberts
Date published: 2018-05-21
