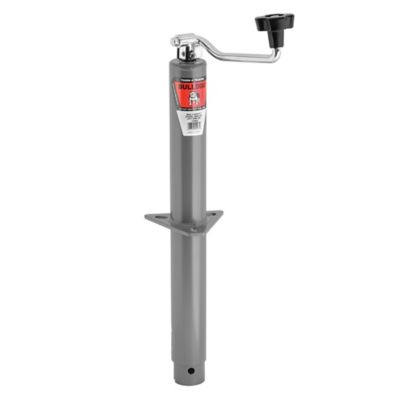

Bulldog 5,000 lb. Capacity A-Frame Trailer Jack, 155032TS
$79.99
Bulldog 5,000 lb. Capacity A-Frame Trailer Jack, 155032TS
Bulldog 5,000 lb. Capacity A-Frame Trailer Jack, 155032TS
Item # 11637299
$79.99
Get everything you need
Neighbor’s Club Members earn points with purchases.
$79.99
New Cardmembers earn a $75 Reward‡ with qualifying purchase of $75 or more plus earn 5% in Rewards+ on this purchase. Valid through 7/12/26.
Shopping at
Grassland (franklin) TN
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.
A-Frame Jack, Topwind, 15 in. Travel, 10.15 in. Bracket to Ground Retracted, Weld-On/Bolt-On, 5,000 lb. Lift Capacity
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Ergonomic design of the A-frame trailer jack is smooth and comfortable
- Dependable vertical and side load capacity
- Proven reliability for long term use at rated loads
- Precision fitted parts in the trailer jack provide extra stability
- A-Frame trailer jack has gray painted outer and inner tubes
- Lift capacity of the trailer jack: 5,000 lb.
| Brand | Bulldog |
|---|---|
| Country of Origin | Imported |
| Base Type | A Frame |
| Collapsed Height | 10.3 in. |
| Compatibility | Many Trailers and other BULLDOG products |
| Crank Type | Top Wind |
| Extended Height | 15 in. |
| Features | Always consult your vehicle's owner's manual for actual weight capacities. |
| Handle Length | 8 in. |
| Hoist Lift Height | 12 in |
| Hoist Weight Capacity | 5000 lb |
| Lift Capacity | 5,000 lb. |
| Mechanism Type | Mechanical |
| Mounting Type | Other |
| Power Type | Manual, None |
| Primary Material | Steel |
| Product Height | 2.8 in. |
| Product Length | 20.2 in. |
| Product Weight | 9.25 lb. |
| Product Width | 4.4 in. |
| Retracted Height | 23 in. |
| Jack Style | A-Frame |
| Tube Width | 2.25 in. |
| Warranty | 5 Year Limited |
| Manufacturer Part Number | 155032TS |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 14 Questions
Newest questions
Q: Does it come with a pad on bottom that rests on ground when trailer is jacked?
2 days ago1 Answer
- AI-generatedA: No, this trailer jack does not include a foot or pad for the bottom. Reviewers have noted that they needed to purchase or add a foot separately.18 hours agoHelpful?
Q: Do you have to weld it? Or can I just bolt it?
6 months ago1 Answer
- A: The Bulldog 5,000 lb. Capacity A-Frame Trailer Jack (Part #155032TS) is designed for both bolt-on and weld-on applications.6 months agoHelpful?
Q: How do you lubricate it? Does it have a grease fitting?
8 months ago1 Answer
- A: Hello, thank you for your question. The maintenance section of the user manual provides instructions for lubrication. A link to the user manual is included below. You can also find a clickable link to the manual under the "Product Documents" tab on desktop or the "More Info" tab on mobile. https://media.tractorsupply.com/is/content/TractorSupplyCompany/tsc/product/1/16/37/2/116372_Man1.pdf?8 months agoHelpful?
Q: Does it have to be welded on or will bolts be enough to hold it
9 months ago1 Answer
- A: Hello, thank you for your question. It can be welded or bolted on.9 months agoHelpful?
Q: Would this work for a two wheel camper
3 years ago1 Answer
- A: Please refer to your two wheel camper owner's manual to verify the type(if any) trailer jack is appropriate for your camper.3 years agoHelpful?
Q: Do you sell the foot for the A Frame trailer jack?
5 years ago1 Answer
- A: For assistance with this inquiry please contact our customer care line directly at 877-718-6750.5 years agoHelpful?
Q: is the lifting capacity 2000 or 5000 lbs
5 years ago1 Answer
- A: Thank you for bringing this to our attention! It is 5000lbs.5 years agoHelpful?
Q: What's the length from the a frame mount to the top of the jack?
5 years ago1 Answer
- A: The distance from the A frame plate to bottom of jack when retracted is ~10”.5 years agoHelpful?
Q: What size bolts are needed to install the 5,000 pound Jack?
5 years ago1 Answer
- A: Inner Diameter: .5" / Outer Diameter: 1.26" / Thickness: .43". We recommend taking a look at the following product: Bulldog Trailer Jack Thrust Bearing Kit,5,000 lb. Capacity, 500223.5 years agoHelpful?
Q: Can you lubricate the tube?
5 years ago1 Answer
- A: Hello, Yes, you can add a small amount. Thank you for your question!5 years agoHelpful?
1 - 10 of 14 Questions
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 14 Questions
Newest questions
Q: Does it come with a pad on bottom that rests on ground when trailer is jacked?
2 days ago1 Answer
- AI-generatedA: No, this trailer jack does not include a foot or pad for the bottom. Reviewers have noted that they needed to purchase or add a foot separately.18 hours agoHelpful?
Q: Do you have to weld it? Or can I just bolt it?
6 months ago1 Answer
- A: The Bulldog 5,000 lb. Capacity A-Frame Trailer Jack (Part #155032TS) is designed for both bolt-on and weld-on applications.6 months agoHelpful?
Q: How do you lubricate it? Does it have a grease fitting?
8 months ago1 Answer
- A: Hello, thank you for your question. The maintenance section of the user manual provides instructions for lubrication. A link to the user manual is included below. You can also find a clickable link to the manual under the "Product Documents" tab on desktop or the "More Info" tab on mobile. https://media.tractorsupply.com/is/content/TractorSupplyCompany/tsc/product/1/16/37/2/116372_Man1.pdf?8 months agoHelpful?
Q: Does it have to be welded on or will bolts be enough to hold it
9 months ago1 Answer
- A: Hello, thank you for your question. It can be welded or bolted on.9 months agoHelpful?
Q: Would this work for a two wheel camper
3 years ago1 Answer
- A: Please refer to your two wheel camper owner's manual to verify the type(if any) trailer jack is appropriate for your camper.3 years agoHelpful?
Q: Do you sell the foot for the A Frame trailer jack?
5 years ago1 Answer
- A: For assistance with this inquiry please contact our customer care line directly at 877-718-6750.5 years agoHelpful?
Q: is the lifting capacity 2000 or 5000 lbs
5 years ago1 Answer
- A: Thank you for bringing this to our attention! It is 5000lbs.5 years agoHelpful?
Q: What's the length from the a frame mount to the top of the jack?
5 years ago1 Answer
- A: The distance from the A frame plate to bottom of jack when retracted is ~10”.5 years agoHelpful?
Q: What size bolts are needed to install the 5,000 pound Jack?
5 years ago1 Answer
- A: Inner Diameter: .5" / Outer Diameter: 1.26" / Thickness: .43". We recommend taking a look at the following product: Bulldog Trailer Jack Thrust Bearing Kit,5,000 lb. Capacity, 500223.5 years agoHelpful?
Q: Can you lubricate the tube?
5 years ago1 Answer
- A: Hello, Yes, you can add a small amount. Thank you for your question!5 years agoHelpful?
1 - 10 of 14 Questions
