Carry-On Trailer 2,000 lb. Capacity Top Wind Jack, Swivel
Carry-On Trailer 2,000 lb. Capacity Top Wind Jack, Swivel
Item # 116020199
Stocked & Ready
$65.99
Add this item to unlock free delivery!
Neighbor’s Club Members earn points with purchases.
Carry-On Trailer 2,000 lb. Capacity Top Wind Jack, Swivel
Item # 116020199
Stocked & Ready
$65.99
New Cardmembers earn a $20 Reward‡ with qualifying purchase of $20 or more plus earn 5% in Rewards+ on this purchase. Valid through 8/9/26.
Add this item to unlock free delivery!
Shopping at
Grassland (franklin) TN
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.
The Carry-on Trailer Top Wind Weld-On Bracket Swivel Jack is designed to help you get back to the job quicker. It features a comfortable claw knob with a fold-away solid bar handle, coated in clear zinc for durability.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- 2,000 lbs. lift capacity / 3,000 lbs. support capacity

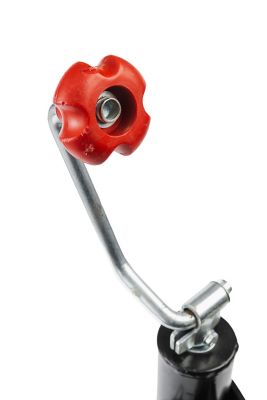

- Comfortable claw knob with a fold-away solid bar handle, coated in clear zinc for durability
- Exterior-grade black finish on the outer and inner tube
- Foot plate
- Deep-seated snap ring for enhanced side load support, with a raw weld-on bracket
- 10" travel distance; 11" bracket height from bottom of jack to center of swivel mount; 16.75" jack height when fully retracted
- Large 1/2 pull pin for easy activation of the swivel mechanism
- Grease zerk fitting for quick and easy maintenance
- 3-3/4 x 7-1/2 welded-on zinc-coated sand foot for durability
| Brand | Carry-On Trailer |
|---|---|
| Country of Origin | Imported |
| Base Type | 3-3/4 x 7-1/2 welded on zinc coated sand foot for durability |
| Compatibility | Trailers |
| Crank Type | Top Wind |
| Extended Height | 16.75 in. |
| Features | Comfortable claw knob with a fold-away solid bar handle, coated in clear zinc for durability |
| Handle Length | 10 in. |
| Hoist Lift Height | 10 in |
| Hoist Weight Capacity | 2000 lb |
| Lift Capacity | 2,000 lb. |
| Mechanism Type | Mechanical |
| Mounting Type | Weld-On |
| Power Type | None |
| Primary Material | Welded steel |
| Product Height | 16.75 in. fully extended |
| Product Length | 11 in. |
| Product Weight | 11.4 lb. |
| Product Width | 3.5 in. |
| Retracted Height | 11 in. |
| Jack Style | Swivel |
| Tube Width | 2 in. |
| Warranty | 1 Year Limited |
| Manufacturer Part Number | 975T |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 7 of 7 Questions
Newest questions
Q: what the diameter on black circle and the silver circle
10 months ago1 Answer
- A: I am sorry but I do not understand your question. Please contact Customer Service at cs@carry-ontrailer.com.10 months agoHelpful?
Q: will this work on a bush hog model 2310
10 months ago0 Answers
Q: Someone asked if its a weld on or bolt on "it literally say weld on"
2 years ago1 Answer
- A: part# 975T is a weld on top wind swivel jack..2 years agoHelpful?
Q: Does this jack have a mount or weld on
4 years ago1 Answer
- A: For technical support, please contact customer.service@carry-ontrailer.com.4 years agoHelpful?
Q: Center of rotating mechanism to lowest retracted position?
5 years ago1 Answer
- A: For additional product support, please contact the manufacture.5 years agoHelpful?
Q: When the foot is completely withdrawn, what is the distance between the bottom of the foot and the bottom of the trailer tongue? What is it when the foot is completely extended?
5 years ago1 Answer
- A: Maximum Product Height: 29 in. Minimum Product Height: 19 in.5 years agoHelpful?
Q: What is the lowest the trailer can go with this jack? I have a trailer pulled that the trailer needs to get down to.
7 years ago1 Answer
- A: 975 jack - Maximum Product Height: 29 in. Minimum Product Height: 19 in.7 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 7 of 7 Questions
Newest questions
Q: what the diameter on black circle and the silver circle
10 months ago1 Answer
- A: I am sorry but I do not understand your question. Please contact Customer Service at cs@carry-ontrailer.com.10 months agoHelpful?
Q: will this work on a bush hog model 2310
10 months ago0 Answers
Q: Someone asked if its a weld on or bolt on "it literally say weld on"
2 years ago1 Answer
- A: part# 975T is a weld on top wind swivel jack..2 years agoHelpful?
Q: Does this jack have a mount or weld on
4 years ago1 Answer
- A: For technical support, please contact customer.service@carry-ontrailer.com.4 years agoHelpful?
Q: Center of rotating mechanism to lowest retracted position?
5 years ago1 Answer
- A: For additional product support, please contact the manufacture.5 years agoHelpful?
Q: When the foot is completely withdrawn, what is the distance between the bottom of the foot and the bottom of the trailer tongue? What is it when the foot is completely extended?
5 years ago1 Answer
- A: Maximum Product Height: 29 in. Minimum Product Height: 19 in.5 years agoHelpful?
Q: What is the lowest the trailer can go with this jack? I have a trailer pulled that the trailer needs to get down to.
7 years ago1 Answer
- A: 975 jack - Maximum Product Height: 29 in. Minimum Product Height: 19 in.7 years agoHelpful?
