Carry-On Trailer 2,000 lb. Capacity A-Frame Trailer Jack
Carry-On Trailer 2,000 lb. Capacity A-Frame Trailer Jack
Item # 116027799
$54.99
Get everything you need
Neighbor’s Club Members earn points with purchases.
$54.99
New Cardmembers earn a $20 Reward‡ with qualifying purchase of $20 or more plus earn 5% in Rewards+ on this purchase. Valid through 6/28/26.
Shopping at
Grassland (franklin) TN
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.
The Carry-On Trailer 2,000 lb. Capacity A-Frame Trailer Jack comes with a durable exterior-grade black finish on the outer and inner tubes for lasting use. Featuring a large, grooved handle, this jack allows for comfortable jack operation. Keep this trailer jack in your workshop or garage so your trailer is always ready for the long haul.
Looking for more information on truck accessories? Check out our guide on truck accessories in the product documents section.
- 2,000 lb. lift capacity/3,000 lb. support capacity
- Large, grooved handle on the trailer jack for comfortable jack operation
- Durable exterior-grade black finish on the outer and inner tubes
- 14 in. travel distance; 8.25 in. bracket height from the bottom of the jack to the bolt flange; 21.25 in. jack height when fully retracted
- Durable zinc finish on the handle arm for long-lasting performance
- Includes a 2-1/4 x 2-1/4in. bolt-on zinc-coated jack foot plate
| Brand | Carry-On Trailer |
|---|---|
| Country of Origin | Imported |
| Base Type | 2-1/4 x 2-1/4 in. bolt-on zinc-coated jack foot plate |
| Compatibility | Trailers |
| Crank Type | Top Wind |
| Extended Height | 21.25 in. |
| Features | Durable zinc finish on the handle arm for long-lasting performance |
| Handle Length | 5.9 in. |
| Hoist Lift Height | 14 in |
| Hoist Weight Capacity | 2000 lb |
| Lift Capacity | 2,000 lb. |
| Mechanism Type | Mechanical |
| Mounting Type | Weld-On |
| Power Type | None |
| Primary Material | Steel |
| Product Height | 21.25 in. Fully extended |
| Product Length | 7.87 in. |
| Product Weight | 9.74 lb. |
| Product Width | 4.72 in. |
| Retracted Height | 8.66 in. |
| Jack Style | A-Frame |
| Tube Width | 2.25 in. |
| Warranty | 1 Year Limited |
| Manufacturer Part Number | 976T |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 5 of 5 Questions
Newest questions
Q: Can you change the foot from a plate to a wheel
3 years ago1 Answer
- A: hey Crosskar1, Thanks for the question. Any alteration to this jack would void the warranty. However, this may be better suited for your needs- Carry-On Trailer Bolt-On Jack 116167199 $64.99 Just search the name or item number on our website for more information on this product.3 years agoHelpful?
Q: Will the foot on this jack extend beyond the point of attachment to a length of 30”? If so, what’s the maximum distance it will go?
4 years ago1 Answer
- A: The max extended height is 22.68 in.4 years agoHelpful?
Q: what size wheel fits
4 years ago1 Answer
- A: This is a A-Frame Jake that raises your trailer.4 years agoHelpful?
Q: what dia. is the extending tube? i have a 2 1/4" hole and what is the distance between hole centers to mount it to the trailer?
5 years ago1 Answer
- A: 2 1/4 is the diameter 3" between holes center to center - in a traingle thank you2 years agoHelpful?
Q: Will this jack bolt onto a straight pipe trailer tongue?
7 years ago1 Answer
- A: The COT pipe top trailers has the part# 741 top wind jack on them.7 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 5 of 5 Questions
Newest questions
Q: Can you change the foot from a plate to a wheel
3 years ago1 Answer
- A: hey Crosskar1, Thanks for the question. Any alteration to this jack would void the warranty. However, this may be better suited for your needs- Carry-On Trailer Bolt-On Jack 116167199 $64.99 Just search the name or item number on our website for more information on this product.3 years agoHelpful?
Q: Will the foot on this jack extend beyond the point of attachment to a length of 30”? If so, what’s the maximum distance it will go?
4 years ago1 Answer
- A: The max extended height is 22.68 in.4 years agoHelpful?
Q: what size wheel fits
4 years ago1 Answer
- A: This is a A-Frame Jake that raises your trailer.4 years agoHelpful?
Q: what dia. is the extending tube? i have a 2 1/4" hole and what is the distance between hole centers to mount it to the trailer?
5 years ago1 Answer
- A: 2 1/4 is the diameter 3" between holes center to center - in a traingle thank you2 years agoHelpful?
Q: Will this jack bolt onto a straight pipe trailer tongue?
7 years ago1 Answer
- A: The COT pipe top trailers has the part# 741 top wind jack on them.7 years agoHelpful?
Similar Items
-
Top Rated
-
-
Top Rated
-
-
Top Rated
-
-
-
Top Rated
-
Top Rated
-
-
Top Rated
-
Items You May Like
-
Top Rated
-
Top Rated
-
-
-
Top Rated
-
-
Top Rated
-
-
-
Top Rated
-
-
Customers Also Bought
-
Top Rated
-
-
-
Top Rated
-
-
-
-
Top Rated
-
-
-
-
Top Rated
Reviews
- price
- quality
- satisfaction
- installation
- value
- ease of use
- website
- cleaning
1 to 4 of 43 Reviews .
1 – 4 of 43 Reviews
Most Recent
Review 1
5 out of 5 stars.
New Jack for boat trailer!
14 days ago
Great jack and an easy install! Very smooth operationally!
Response from Carry-On Trailer Customer Service:
11 days ago
Carry-On Trailer Customer Service
Thank your for your fantastic review and your high rating! We are thrilled to hear you are happy with your trailer jack.
Reviews 4
5 out of 5 stars.
Returned didn't need it after all
26 days ago
Returned didn't need it after all
Columbia, SC
Review 1
5 out of 5 stars.

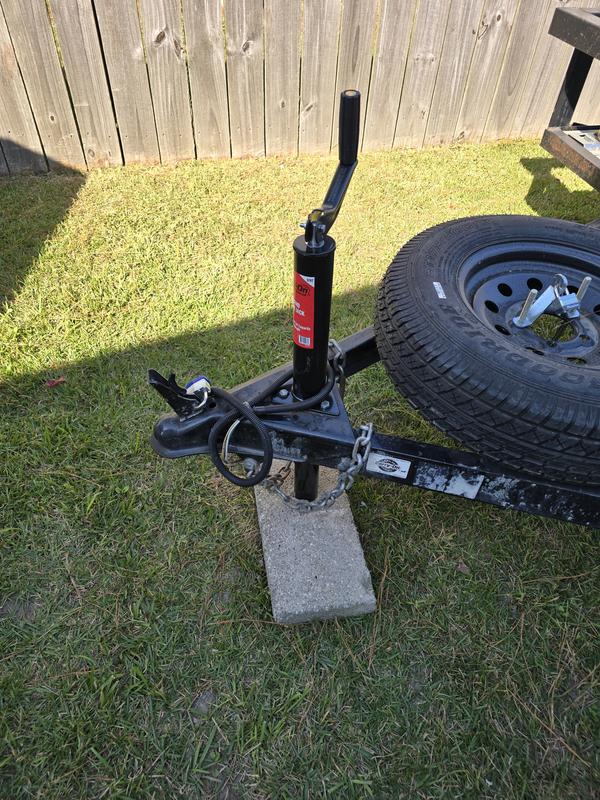

Bolted Right Up
