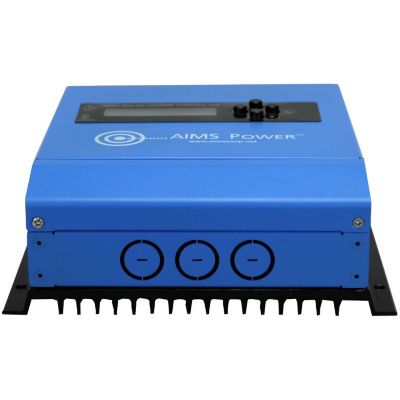

AIMS Power 30A Solar Charge Controller, 12/24 VDC MPPT

5.01 Reviews

Item # 131945299

Image showing  30A Solar Charge Controller, 12/24 VDC MPPT
Image showing  30A Solar Charge Controller, 12/24 VDC MPPT
Image showing  30A Solar Charge Controller, 12/24 VDC MPPT
Image showing  30A Solar Charge Controller, 12/24 VDC MPPT
$139.99

Add a protection plan
What's included
Powersport plans are not available in CA & MD.
Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

AIMS Power 30A Solar Charge Controller, 12/24 VDC MPPT

5.01 Reviews

Item # 131945299

Image showing  30A Solar Charge Controller, 12/24 VDC MPPT
Image showing  30A Solar Charge Controller, 12/24 VDC MPPT
Image showing  30A Solar Charge Controller, 12/24 VDC MPPT
Image showing  30A Solar Charge Controller, 12/24 VDC MPPT
$139.99

This item is available online only

Delivering to

37027


Add a protection plan
What's included
Powersport plans are not available in CA & MD.
Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

The AIMS Power 30A Solar Charge Controller product line provides quality and reliable voltage regulation for your solar panel array. The AIMS MPPT charge controller uses an efficient algorithm to fully adjust with weather conditions to ensure that maximum power is harvested from the solar panel array throughout the day. The charge controller has a charge controller for every solar panel array with several size options. This 30A charge controller works with 12 and 24V DC battery systems and provides real-time self diagnostics that reports fault and alarm conditions as they occur. The solar charge controller has an easy to use LCD display that allows the user to quickly and easily navigate through the screens and also includes unique LED sequences. A battery temperature sensor, added protections and stackable design makes the AIMS Solar Charge Controller one of the best in the industry.Note: This product may require up to 2 additional days for order processing prior to shipping

For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.

  • MPPT technology: maximum power point tracking produces maximum available power from PV array to battery bank utilizing peak power of the I-V curve
  • Quality heatsink cooling - no fans needed and no thermal derating
  • Battery type selector and user defined charging voltage
  • 4 stage charging
  • Includes battery temperature sensor
  • PV input, battery output and load control ports
  • Solar Charge controller is stackable for easy storage
  • Reliable electronics, over engineered components generating less heat
  • Controller is very efficient up to 99%
  • Low self consumption
  • Thermal design rugged case for durable protection
  • Over temp protection
  • Overload, short circuit, high and low voltage protection
  • RS485 port for computer monitoring
  • CE, ETL to UL1471 and RoHS compliant
  • Marine coated
  • Mounting holes
  • PV operating voltage: 18-100VDC@12V
  • 34-100VDC@24V
  • Rated PV input: 12V - 400 watts
  • 24V - 800W
  • Maximum battery current: 30 amps
  • Max PV open circuit voltage: 100VDC
  • Self power consumption:<2W
  • Efficiency: 97%
  • Protections: overload, short circuit, high voltage, high temperature, low voltage and auto correct
  • Optimal cooling case design - built for extreme conditions
  • Charging: battery types: gel, sealed, AGM, flooded, lithium, and user defined (adjustable voltage)
  • 4 Stage charging: bulk, absorption, float and equalize
  • Bulk charge voltage: sealed 14.4V, AGM/Gel 14.2V, flooded 14.6V, user defined 10-15V
