ToolTuff Direct Reverse Hydraulic Log Splitter Valve (C5)
$109.99
ToolTuff Direct Reverse Hydraulic Log Splitter Valve (C5)
ToolTuff Direct Reverse Hydraulic Log Splitter Valve (C5)
Item # 250946599
Highlights
- Maximum Log Diameter:0 in.
- Log Splitter Maximum Log Length:N/A
- Cycle Time:0-30 sec
$109.99
Get everything you need
Neighbor’s Club Members earn points with purchases.
ToolTuff Direct Reverse Hydraulic Log Splitter Valve (C5)
Item # 250946599
Highlights
- Maximum Log Diameter:0 in.
- Log Splitter Maximum Log Length:N/A
- Cycle Time:0-30 sec
$109.99
New Cardmembers earn a $75 Reward‡ with qualifying purchase of $75 or more plus earn 5% in Rewards+ on this purchase. Valid through 7/12/26.
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.

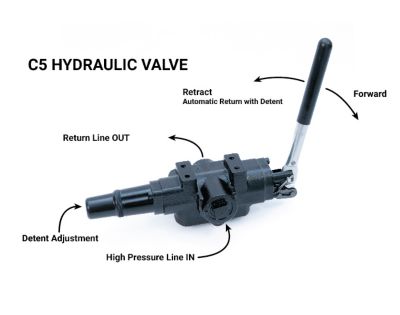

REVERSE PORT CONFIGURATION for most Speeco, Husky, Oregon, TSC and MTD log splitters. View the port orientations in the photo's section to compare the port orientation to your existing log splitter. This valve is typically used on Brave and Champion log splitters but are used on others as well. Please make sure you are buying the right port configuration for your application! This is the next generation in log splitter valves. The detent is usually what wears out and causes valves to fail. This valve allows user to adjust the kick out pressure to what they need and as the detent wears.
Looking for more information on log splitters? Check out our guide on log splitter types in the product documents section.
- Single spool, Open center.
- Max pressure rating: 3500psi.
- Relief valve set at 3000psi but is adjustable.
- Working ports 1/2 in NPT.
- In/Out ports 3/4 in NPT
- Detent Pressure set at 700 psi but is adjustable.
- Screw off end cap for easily detent pressure adjustability
- Cast Iron body
- Threaded mounting holes (4) are 1" center to center (width) x 1-5/8" center to center (length)
| Brand | ToolTuff Direct |
|---|---|
| Country of Origin | Imported |
| Amperage | 0 Amp |
| Cycle Time | 0-30 sec |
| Engine Displacement | 0cc |
| Fuel Tank Capacity | 0 gal. |
| Horsepower | 0 hp |
| Hydraulic Capacity | 3,500 PSI |
| Log Splitter Features | Hydraulic, Automatic Return |
| Log Splitter Maximum Log Length | N/A |
| Log Splitting Force | N/A |
| Maximum Log Diameter | 0 in. |
| Maximum PSI | 3,500 PSI |
| Engine Brand | N/A |
| Operational Orientation | Horizontal and Vertical |
| Power Type | Manual |
| Primary Material | Steel |
| Product Height | 3.5 in. |
| Product Length | 11 in. |
| Product Weight | 8.55 lb. |
| Product Width | 3 in. |
| Recommended Oil Type | AW 32 |
| Splitter Type | Hydraulic |
| Start Type | None |
| Tire Size | 0 in. |
| Torque | 0 flb |
| Warranty | 1 yr |
| Manufacturer Part Number | 31-286 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 5 of 5 Questions
Newest questions
Q: How high can the detent pressure be set?
3 months ago1 Answer
- A: Hi Jude! This product features a 3500 PSI max detent pressure rating.3 months agoHelpful?
Q: will this valve fit my 25 ton log splitter mod# 579782
11 months ago1 Answer
- A: Hi Neighbor! Here are the product specifications: Single spool, Open center. Max pressure rating: 3500psi. Relief valve set at 3000psi but is adjustable. Working ports ½”NPT. In/Out ports ¾” NPT Detent Pressure set at 700 psi but is adjustable. Screw off end cap for easily detent pressure adjustability Cast Iron body Threaded mounting holes (4) are 1" center to center (width) x 1-5/8" center to center (length) **Please check your owners manual to make sure ports and other specifications are correct.**11 months agoHelpful?
Q: How many gallons is it rated for?
a year ago1 Answer
- A: Hi Neighbor! This product is rated at 25 GPM(Gallons Per Minute).a year agoHelpful?
Q: Does this fit a county line 25 ton splitter
a year ago1 Answer
- A: Hello Neighbor, Please contact the manufacturer for required replacement specs.a year agoHelpful?
Q: Is this compatible replacement for a Prince Ls3000-1 splitter valve
a year ago1 Answer
- A: Specifications: Single spool, Open center. Max pressure rating: 3500psi. Relief valve set at 3000psi but is adjustable. Working ports ½”NPT. In/Out ports ¾” NPT Detent Pressure set at 700 psi but is adjustable. Screw off end cap for easily detent pressure adjustability Cast Iron body Threaded mounting holes (4) are 1" center to center (width) x 1-5/8" center to center (length) please check your owners manual to make sure ports and other specifications are correct.a year agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 5 of 5 Questions
Newest questions
Q: How high can the detent pressure be set?
3 months ago1 Answer
- A: Hi Jude! This product features a 3500 PSI max detent pressure rating.3 months agoHelpful?
Q: will this valve fit my 25 ton log splitter mod# 579782
11 months ago1 Answer
- A: Hi Neighbor! Here are the product specifications: Single spool, Open center. Max pressure rating: 3500psi. Relief valve set at 3000psi but is adjustable. Working ports ½”NPT. In/Out ports ¾” NPT Detent Pressure set at 700 psi but is adjustable. Screw off end cap for easily detent pressure adjustability Cast Iron body Threaded mounting holes (4) are 1" center to center (width) x 1-5/8" center to center (length) **Please check your owners manual to make sure ports and other specifications are correct.**11 months agoHelpful?
Q: How many gallons is it rated for?
a year ago1 Answer
- A: Hi Neighbor! This product is rated at 25 GPM(Gallons Per Minute).a year agoHelpful?
Q: Does this fit a county line 25 ton splitter
a year ago1 Answer
- A: Hello Neighbor, Please contact the manufacturer for required replacement specs.a year agoHelpful?
Q: Is this compatible replacement for a Prince Ls3000-1 splitter valve
a year ago1 Answer
- A: Specifications: Single spool, Open center. Max pressure rating: 3500psi. Relief valve set at 3000psi but is adjustable. Working ports ½”NPT. In/Out ports ¾” NPT Detent Pressure set at 700 psi but is adjustable. Screw off end cap for easily detent pressure adjustability Cast Iron body Threaded mounting holes (4) are 1" center to center (width) x 1-5/8" center to center (length) please check your owners manual to make sure ports and other specifications are correct.a year agoHelpful?
Similar Items
-
Top Rated
-
-
-
-
-
Top Rated
-
-
-
-
-
-
Items You May Like
-
Top Rated
-
-
Top Rated
-
-
Top Rated
-
-
-
Top Rated
-
-
-
Top Rated
-
Top Rated
Reviews
Customer Images and Videos
- handle
1 to 4 of 11 Reviews .
1 – 4 of 11 Reviews
Most Recent
Review 1
4 out of 5 stars.
Hydraulic control lever
2 months ago
So far so good fit perfect on the wood splitter just haven’t run it for any length of time
SweepstakesYes
Yes, I recommend this product.
Oklahoma
Reviews 4
4 out of 5 stars.

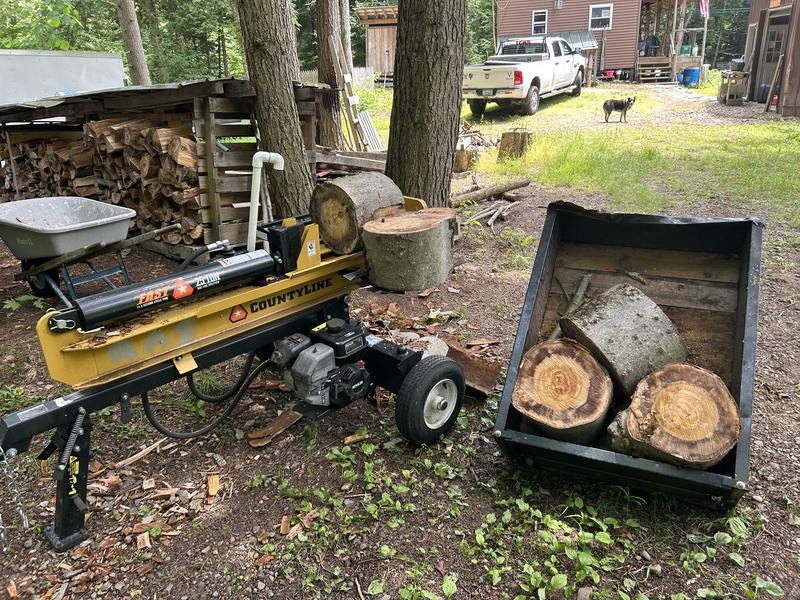

Replacement controller for 25 to County Line log
6 months ago
This controller did replace the original one that came on my 25 ton County line log splitter. But the handle is on the side instead of the top. Tge handle cannot be rotated to the top because of the way the bolts holes are designed.
Yes, I recommend this product.
Anonymous
Delta, CO
Review 1
3 out of 5 stars.
Decent for the price
7 months ago
It functioned fine for me. Might require some adjustment after installation, depending on your application. I was slightly disappointed in the finish as the paint was bubbled and falling off, like it had been painted while still oily, but it does the job.
SweepstakesYes
Yes, I recommend this product.
Newark, ohio
Review 1
5 out of 5 stars.
Good product
8 months ago
Very solid product, fit right on the machine and worked perfectly.
SweepstakesYes
Yes, I recommend this product.
