ToolTuff Direct 19 GPM Log Splitter Pump

2.52 Reviews

Item # 250946499

Highlights

Maximum Log Diameter:0 in.
Log Splitter Maximum Log Length:N/A
Cycle Time:0 sec

View more details

$179.99

Neighbor’s Club Members earn points with purchases.

Shop all ToolTuff Direct

ToolTuff Direct 19 GPM Log Splitter Pump

2.52 Reviews

Item # 250946499

Highlights

Maximum Log Diameter:0 in.
Log Splitter Maximum Log Length:N/A
Cycle Time:0 sec

View more details

$179^.99

This item is available online only

Delivering to

37027

Neighbor’s Club Members earn points with purchases.

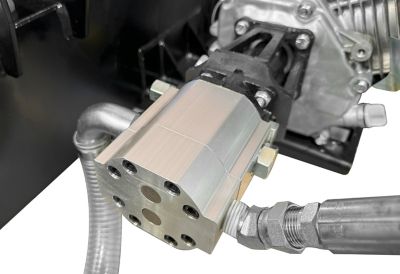

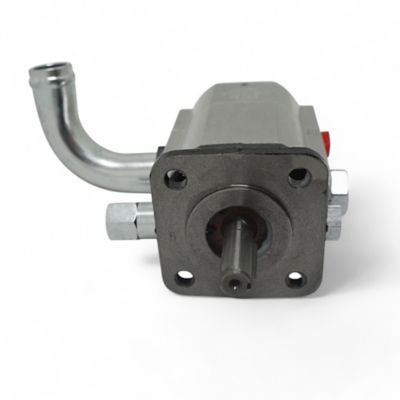

This 2-stage log splitter pump is a high-flow, OEM-grade hydraulic replacement pump, delivering 19 GPM (gallons per minute) flow rate, making it ideal for various log-splitting and hydraulic applications. Designed to fit a wide range of log splitters. Its 2-stage mechanism allows for faster cycle times and higher pressure capabilities even with a smaller engine, providing 85% efficiency for applications such as log splitters, presses, clamping units, and compactors. With a 6-month warranty and excellent customer service support, this pump is a reliable choice for enhancing equipment performance.

Shaft: 1/2 in
Inlet port: 1 in
Outlet port: 1/2 in NPT (Do NOT use an orb type o-ring fitting)
Shaft Length: 1.5 in
Minimum 9 HP or larger gas engine, direct drive only, horizontal shaft (can be mounted vertical or horizontal)
For use with open center hydraulic systems only
First Stage: 16.5 GPM @ 650 PSI
Second Stage: 3.6 GPM @ 2500 PSI
Maximum pressure: 4000 PSI
Bolt circle: 2.83in.
4 holes spaced 2 on center
Mounting hole diameter: .344in.
Rotation is clockwise (looking from the motor to the pump /shaft face)
