Powermatic Drum Sander, 10 hp, 3 Ph, 230V

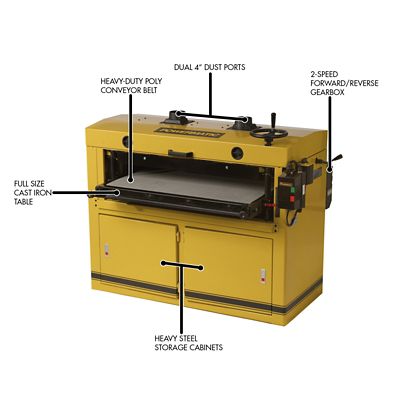

The production class Powermatic Drum Sander is loaded with features. A 10 HP motor drives the dual steel drums, which have a hard durometer rubber coating to ensure a flat, mar free finish. An independently adjustable rear drum makes fine tuning easy. A heavy cast iron table included with the drum sander incorporates four solid jackscrews with chain drive timing to keep it level at all times. The heavy-duty poly conveyor belt featured with the drum sander provides a positive grip on the stock. The 1/4HP feed motor on the drum sander is coupled to a two-speed forward/reverse gearbox that will sand 8 and 12 surface feet per minute. The heavy steel cabinet featured with the drum sander provides vibration free sanding, with plenty of storage space underneath.5 Year Warranty
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on tools? Check out our guide on essential woodworking power tools in the product documents section.

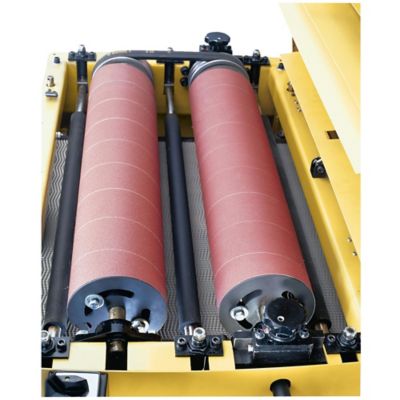

- Drum sander features a dual drum head for superior finish

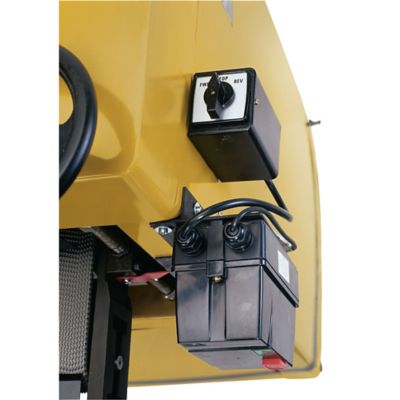

- Two-speed gearbox for wide range of sanding projects

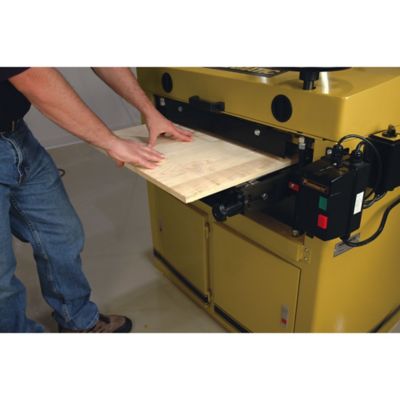

- Forward/reverse conveyor belt grips stock evenly
- Independently adjustable rear drum for fine tuning

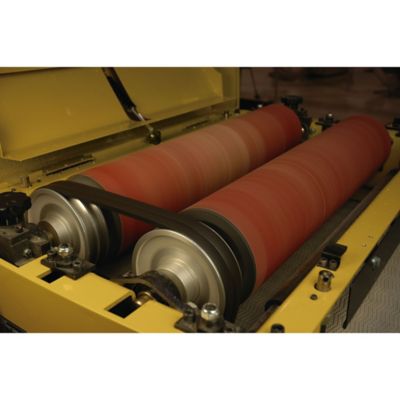

- Hard durometer rubber coating on steel drums provides flat, smooth finish
- Full size cast iron table included with drum sander for solid support
- Dual dust ports with directional baffles for more efficient dust removal
- Drum sander has a drum speed of 1700 RPM
- Drum sander can handle boards up to 5-1/4 in. thick and 37 in. wide
- Minimum board length: 9 in.
- Minimum board thickness: 1/32 in.
| Brand | Powermatic |
|---|---|
| Country of Origin | Imported |
| Amperage | 20A |
| Battery Size | None |
| Belt Length | 37 in. Drum |
| Belt Width | 6 in. |
| Cord Length | 0 ft. |
| Dust Collection Method | 4 in. dust port |
| Features | The production class Powermatic DDS-237 Dual Drum Sander that is loaded with features. A 10HP motor drives the dual steel drums, which have a hard durometer rubber coating to ensure a flat, mar free finish. |
| Housing Material | Steel |
| Maximum Speed | 1,700 RPM |
| Tools Included | Sander |
| Power Type | Electric |
| Product Height | 45 in. |
| Product Length | 60 in. |
| Product Weight | 990 lb. |
| Product Width | 45 in. |
| Switch Type | Push Button |
| Variable Speed | Variable Speed |
| Voltage | 230V |
| Warranty | 5 Year |
| Manufacturer Part Number | 1791321 |
