Powermate 125-155 PSI 4 Port Pressure Switch
4.411 Reviews
Item # 153115799
$31.49
Sale
Was$34.99
Save $3.50
Buy Air Compressor Get 20% Off Air Compressor accessorie
Neighbor’s Club Members earn points with purchases.
4.411 Reviews
Item # 153115799
Buy Air Compressor Get 20% Off Air Compressor accessorie
$31.49
Sale
Was$34.99
Save $3.50
New Cardmembers earn a $20 Reward‡ with qualifying purchase of $20 or more plus earn 5% in Rewards+ on this purchase. Valid through 6/28/26.Apply now
This item is available online only
Delivery to
37027
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.

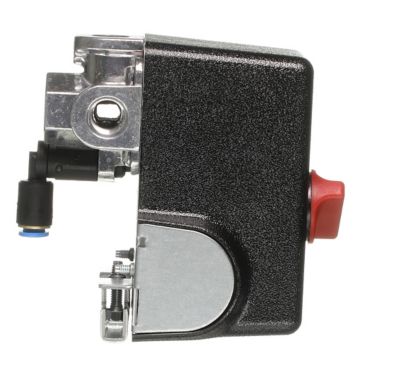

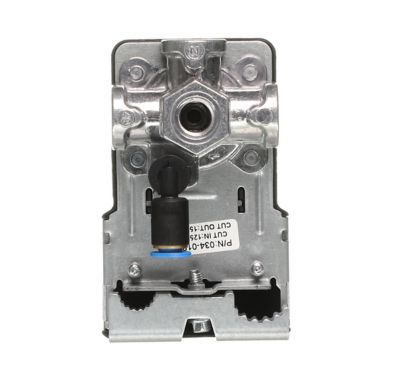

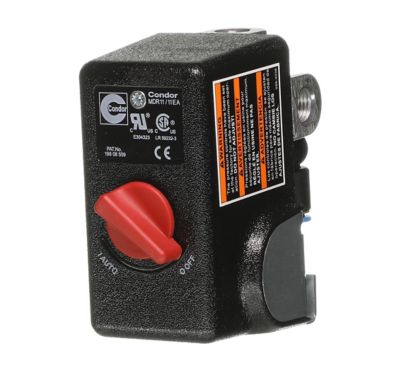

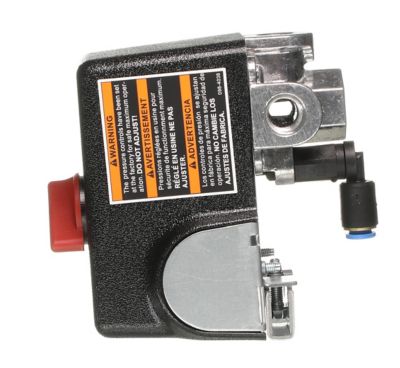

The Powermate 4 Port Pressure Switch is a replacement switch for faulty compressors. The pressure switch regulates air pressure in compressors, allowing for more dependable performance. If your compressor motor is cutting out or not turning on at the proper PSI, this replacement pressure switch is the perfect solution. Use this 4 port pressure switch on any 155 max PSI air compressor.
- Preset for 125 PSI On and 155 PSI Off
- 4 port with bleeder
- 1/4 inch NPT ports
- 1/4 inch tube bleeder valve
- Includes strain relief for 034-0213 conversion
- Use the pressure switch on any 155 max PSI air compressor
| Brand | Powermate |
|---|---|
| Country of Origin | Imported |
| Maximum On/Off Factory Pressure Setting | 125 PSI |
| Maximum Operating Pressure | 155 PSI |
| Minimum Operating Pressure | 125 PSI |
| Operating Pressure Range | 125-155 PSI |
| Primary Material | Plastic |
| Product Height | 9.5 in. |
| Product Length | 4.88 in. |
| Product Weight | 0.06 lb. |
| Product Width | 3 in. |
| Warranty | Refer to manufacturer documentation for warranty information |
| Manufacturer Part Number | 034-0184RP |
Start typing your question and we'll check if it was already asked and answered.
1 - 9 of 9 Questions
Newest questions
Q: Will this switch work on 5HP single stage compressor
6 months ago1 Answer
- A: Hello, thank you for your question. According to the vendor, it is rated by its cut-in and cut-out pressures, not by motor horsepower. This means it can be used with your 5 HP single-stage compressor as long as the compressor’s operating pressures fall within 125–155 PSI. You do not need to worry about the motor size affecting compatibility.6 months agoHelpful?
Q: Is this switch adjustable?
7 months ago1 Answer
- A: Yes, the Powermate 125-155 PSI 4 Port Pressure Switch can be adjusted. Many Powermate models have an adjustment mechanism that allows you to change the "cut-in" and "cut-out" pressure settings.7 months agoHelpful?
Q: Will this work with 110v
a year ago1 Answer
- A: Hi, No, the Powermate 125-155 PSI 4-Port Pressure Switch is designed for 240V single-phase power and is not compatible with 110V.a year agoHelpful?
Q: Is this switch a replacement for Sanborn 034-0164
a year ago1 Answer
- A: Hello, thank you for your question. Please reach out to Powermate for this specific inquiry. ***Powermate*** http://www.powermateair.com/service.php 1-800-628-8815 | 8:00 AM to 5:00 PM CST (M-F) Service.Parts@Sanborn-Mfg.coma year agoHelpful?
Q: How do you get the 1/4” lines and fittings off the old one, or do I need to replace them?
a year ago1 Answer
- A: Hi, Here is the information we received from the vendor- "The bleeder line that is on the unit is a push to fit connect, you should be able take the line off with an pulling back motion and the teeth that are in the bleeder port should release it. It is a little bit harder to get it off but using an screw driver to pull back and the other hand to pull it should release. If you are not able to do so, you should have a little bit of extra play in the tube and should be able to trim it off and reinsert it into the bleeder on the switch. For additional assistance, please contact our product service and parts team at 1-888-895-4549. Thank you for your interest in Powermate!a year agoHelpful?
Q: Are these adjustable?
3 years ago1 Answer
- A: Hey Tony, Thanks for the question. This unit is preset for 125 PSI On and 155 PSI Off3 years agoHelpful?
Q: Is this adjustable? Does it work with 120 and/or 240?
4 years ago1 Answer
- A: 125-1554 years agoHelpful?
Q: Is this adjustable? I need it to be set at 125 cut off.
4 years ago1 Answer
- A: For additional product support, please contact 1-888-440-5170.4 years agoHelpful?
Q: I assume this will replace my Condor MDR 11/11 EA switch
4 years ago1 Answer
- A: Yes it will. Please ensure you do not exceed 155 PSI.4 years agoHelpful?
Similar Items
-
-
-
Top Rated
-
-
-
-
-
-
-
-
-
Items You May Like
-
-
-
Top Rated
-
-
-
Top Rated
-
-
-
-
-
Top Rated
-
Customers Also Bought
-
-
-
Top Rated
-
-
-
-
-
-
-
-
-
Reviews
- purchase
1 to 4 of 11 Reviews .
1 – 4 of 11 Reviews
Most Recent
Review 1
5 out of 5 stars.
Pressure switch
4 months ago
My local store didn't have this in stock. Ordered it on line and received it in three days.
Yes, I recommend this product.
Eufaula Oklahoma
Reviews 2
5 out of 5 stars.
Pressure switch
a year ago
Works just like it should
SweepstakesYes
Yes, I recommend this product.
Texas
Review 1
5 out of 5 stars.
Exact Replacement
2 years ago
Replacement part was identical to original...lucky me..
2023 Q4 SweepstakesYes
Yes, I recommend this product.
Review 1
3 out of 5 stars.
Not as easy to install as the original.
4 years ago
Works. The electrical openings are different than my original. The way both input and output are retained by the same clip is a pain, especially in tight condition.
Also, the item description didn't state that it is for 220, so I took my chances and it is.
SweepstakesYes
Yes, I recommend this product.
