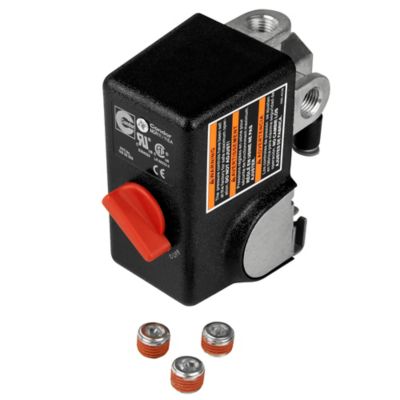

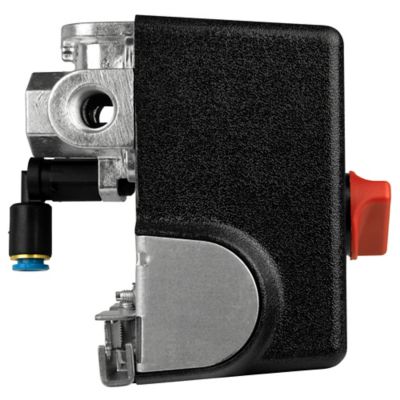

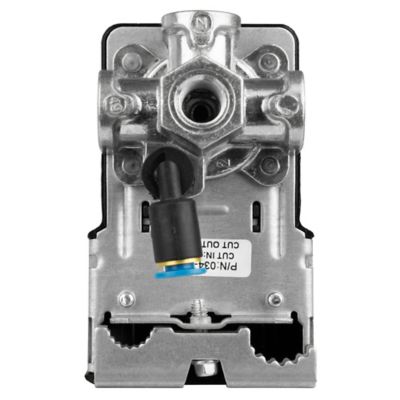

The PORTER-CABLE 135 PSI Pressure Switch is part of the large line of Porter-Cable genuine replacement parts. A pressure switch regulates air pressure in the compressor. Replace a pressure switch with a new Porter-Cable pressure switch if the compressor motor is cutting out or not turning on at the proper PSI. This pressure switch is factory preset for 105 PSI kick-on and 135 PSI kick-off.
- Factory preset of the pressure switch is for 105 PSI kick-on; 135 PSI kick-off
- Four 1/4 in. NPT ports on the 135 PSI pressure switch
- 1/4 in. O.D. tube bleeder valve on the 135 PSI pressure switch
- 3 hex socket pipe plugs included with the pressure switch
| Brand | PORTER-CABLE |
|---|---|
| Country of Origin | Imported |
| Maximum On/Off Factory Pressure Setting | 105 PSI |
| Maximum Operating Pressure | 135 PSI |
| Operating Pressure Range | 135 PSI |
| Primary Material | Metal |
| Product Height | 9.5 in. |
| Product Length | 4.88 in. |
| Product Weight | 0.9 lb. |
| Product Width | 3 in. |
| Warranty | Refer to manufacturer documentation for warranty information |
| Manufacturer Part Number | PXCM034-0226 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 19 Questions
Newest questions
Q: Is this operated by 220 volts
11 days ago1 Answer
- AI-generated, Human-approvedA: Yes, this pressure switch is rated for 240V and can also be used on a 115V air compressor.7 days agoHelpful?
Q: Can it be used on a 115v compressor
a month ago1 Answer
- A: Howdy neighbor! Yes, the PORTER-CABLE 105-135 PSI Pressure Switch can absolutely be used on a 115V air compressor.a month agoHelpful?
Q: What voltage does it need
3 months ago1 Answer
- AI-generated, Human-approvedA: This pressure switch is rated for 240V. It has a Full Load Amperage (FLA) rating of 26A and a Locked Rotor Amperage (LRA) rating of 156A at that voltage.3 months agoHelpful?
Q: What is the current rating of the switch?
4 years ago1 Answer
- A: The FLA Rating is 26A - 240V, LRA rating is 156A-240V.4 years agoHelpful?
Q: Will this work for husky
5 years ago1 Answer
- A: this product is compatible with air compressors with working pressure of 105-135 PSI5 years agoHelpful?
Q: Can I use this with a compressor that calls for a 90-125psi
5 years ago1 Answer
- A: Compatibility: For air compressors with working pressure of 105-135 PSI.5 years agoHelpful?
Q: I purchased this switch and I wired it up just like the original. Now the compressor runs backwards. Any help would be appreciated.
5 years ago1 Answer
- A: Thank you for your question! Please contact PORTER-CABLE at 1-888-848-5175 for further assistance.5 years agoHelpful?
Q: Will this work for a 3hp 240v motor? I need to replace the switch on a old compressor with no brand markings.
6 years ago1 Answer
- A: Please contact Porter Cable Product Services at 1-888-895-4549 to discuss further about your replacement part needs.6 years agoHelpful?
Q: WILL THIS WORK ON AN Ingersoll RAND compressor?
Anonymous8 years ago1 Answer
- A: Please contact the manufacture for specifications on what will work for their compressor.8 years agoHelpful?
Q: Will this fit a Jet Stream Porter Cable 6 hp 20 gal air compressor
8 years ago1 Answer
- A: Please contact Porter Cable Product Services at 1-888-895-4549 to discuss further about your replacement part needs.8 years agoHelpful?
1 - 10 of 19 Questions
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 19 Questions
Newest questions
Q: Is this operated by 220 volts
11 days ago1 Answer
- AI-generated, Human-approvedA: Yes, this pressure switch is rated for 240V and can also be used on a 115V air compressor.7 days agoHelpful?
Q: Can it be used on a 115v compressor
a month ago1 Answer
- A: Howdy neighbor! Yes, the PORTER-CABLE 105-135 PSI Pressure Switch can absolutely be used on a 115V air compressor.a month agoHelpful?
Q: What voltage does it need
3 months ago1 Answer
- AI-generated, Human-approvedA: This pressure switch is rated for 240V. It has a Full Load Amperage (FLA) rating of 26A and a Locked Rotor Amperage (LRA) rating of 156A at that voltage.3 months agoHelpful?
Q: What is the current rating of the switch?
4 years ago1 Answer
- A: The FLA Rating is 26A - 240V, LRA rating is 156A-240V.4 years agoHelpful?
Q: Will this work for husky
5 years ago1 Answer
- A: this product is compatible with air compressors with working pressure of 105-135 PSI5 years agoHelpful?
Q: Can I use this with a compressor that calls for a 90-125psi
5 years ago1 Answer
- A: Compatibility: For air compressors with working pressure of 105-135 PSI.5 years agoHelpful?
Q: I purchased this switch and I wired it up just like the original. Now the compressor runs backwards. Any help would be appreciated.
5 years ago1 Answer
- A: Thank you for your question! Please contact PORTER-CABLE at 1-888-848-5175 for further assistance.5 years agoHelpful?
Q: Will this work for a 3hp 240v motor? I need to replace the switch on a old compressor with no brand markings.
6 years ago1 Answer
- A: Please contact Porter Cable Product Services at 1-888-895-4549 to discuss further about your replacement part needs.6 years agoHelpful?
Q: WILL THIS WORK ON AN Ingersoll RAND compressor?
Anonymous8 years ago1 Answer
- A: Please contact the manufacture for specifications on what will work for their compressor.8 years agoHelpful?
Q: Will this fit a Jet Stream Porter Cable 6 hp 20 gal air compressor
8 years ago1 Answer
- A: Please contact Porter Cable Product Services at 1-888-895-4549 to discuss further about your replacement part needs.8 years agoHelpful?
1 - 10 of 19 Questions
Similar Items
Items You May Like
-
Top Rated
-
Top Rated
-
-
-
-
-
-
Top Rated
-
Top Rated
-
-
-
Reviews
- oem
- price
- purchase
- ease of use
- installation
- quality
1 to 4 of 15 Reviews .
1 – 4 of 15 Reviews
Most Recent
Review 1
5 out of 5 stars.
Just what i needed
a year ago
Nice unit . Seems well built
Texas
Reviews 2
4 out of 5 stars.
Pressure switch
2 years ago
Worked like it should but had to adj. it a little bit.
2023 Q4 SweepstakesYes
Yes, I recommend this product.
Review 1
5 out of 5 stars.
Works for an old compressor
4 years ago
Works great on an old 12 gallon compressor. Easy installation. And the price wasn’t bad.
Maryland
Review 1
5 out of 5 stars.
replacement part for Central Pneumatic Compressor
5 years ago
I worked as expected and was a good replacement for the Central Pneumatic OEM part.
