NDS 12 in. Square Stormwater Catch Basin
Item # 188324299
Neighbor’s Club Members earn points with purchases.
Out of stock at
Grassland (franklin) TN
Delivering to
37027
Pickup Nearby at FAIRVIEW TN(13.2) miles FREE
Neighbor’s Club Members earn points with purchases.

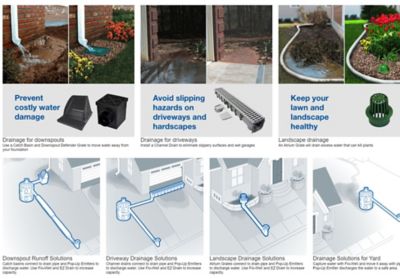

Trouble with stormwater flooding your lawn, patio, or landscaping? You're not alone. For many homeowners, that means excess water isn't able to properly drain. If the problem isn't fixed, it can lead to a bigger problemand costly damage to your property. Here's how to fix it. Drain water where it doesn't need to be with a stormwater catch basin. The 12 in. Square Catch Basin is ideal for handling heavy flows from lawns, landscaped areas, under downspouts, patios, and walkways. The catch basin, or catch drain, does more than "catch" wateras part of a complete drainage system, it works stealthily underground to direct water to connected drain pipes which carry the water to a discharge point such as a pop-up emitter, or to percolate into the ground with a dry well or infiltration trench. Kit includes a 2-opening basin made of polypropylene, 2 outlet adapters, and 1 plug which fits in either outlet adapter, and polyethylene grate to block leaves and debris from entering the drainage system. The storm drain with grate is rated for NDS Class B loads when properly installed. Built-in basin sump is easy to access and clean. Founded in 1972, NDS is the preferred choice of professionals and the leader in stormwater management solutions with proven products, tools, and support to help you get the job done right.

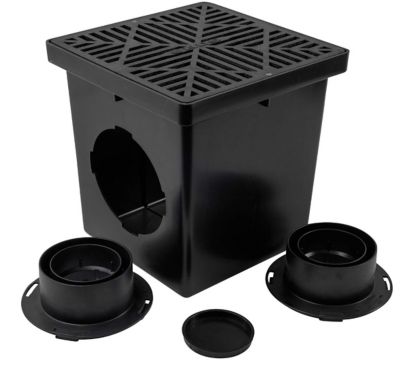

- 12 in. Square Catch Basin Drain Kit with 2-Opening Catch Basin, Black Plastic Grate, 2 Outlet Adapters, 1 Outlet Plug
- Collect stormwater runoff and standing water on your property and direct to drain pipes before it causes costly property damage

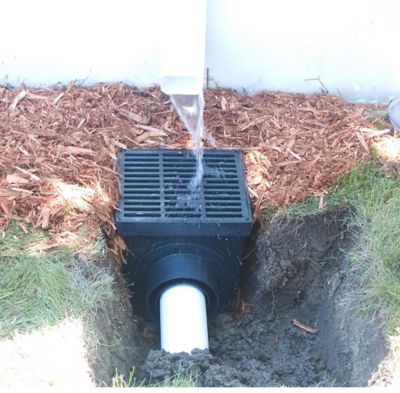

- Manage heavy flows of water from lawns, landscaped areas, under downspouts, patios, and walkways

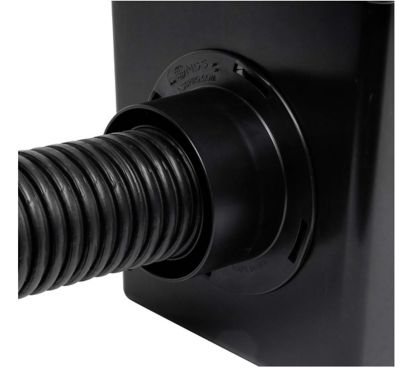

- Keyed side openings lock outlet adapters in place; knockout on bottom for additional keyed opening if needed
- Four weephole knockouts on bottom to eliminate stagnant water
- Connects to 3 in. & 4 in. sewer and drain pipes, 3 in. & 4 in. single-wall corrugated pipes, 3in. & 4 in. triple-wall pipes, and 3 in. & 4 in. DWV/Sch. 40 pipes using included outlet adapters; additional outlet adapters sold separately for connections to 6 in. and 8 in. drain pipes
- 12 in. square grate has an open surface area of 53.1 sq. in.
- 162 GPM flow rate for 12 in. square plastic grate
- Rated for NDS Class B loads (up to 175 psi) when properly installed with graterecommended for medium-duty pneumatic tire traffic, autos, and light trucks at speeds less than 20 mph
- Made in USA
