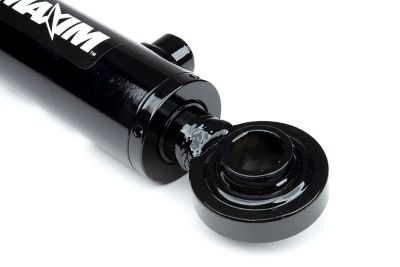

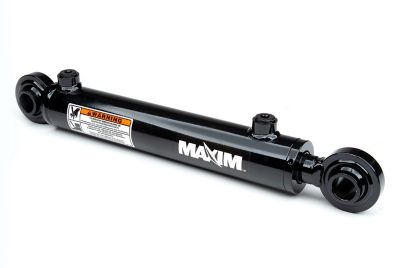

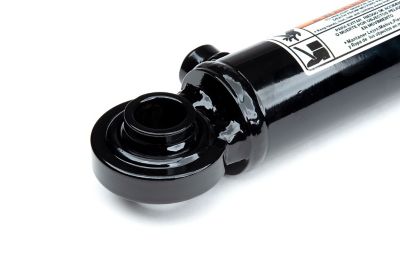

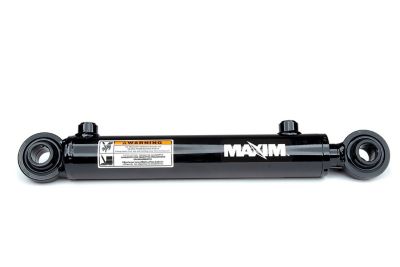

Maxim 3 in. Bore x 10 in. Stroke WSB Swivel Ball Welded Hydraulic Cylinder, 1.5 in. Rod Diameter

  • Online Only

Maxim 3 in. Bore x 10 in. Stroke WSB Swivel Ball Welded Hydraulic Cylinder, 1.5 in. Rod Diameter

Item # 1307823

Maxim Maxim 3 in. Bore x 10 in. Stroke WSB Swivel Ball Welded Hydraulic Cylinder, 1.5 in. Rod Diameter
Maxim Maxim 3 in. Bore x 10 in. Stroke WSB Swivel Ball Welded Hydraulic Cylinder, 1.5 in. Rod Diameter
$259.99
or
or
Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

  • Online Only

Maxim 3 in. Bore x 10 in. Stroke WSB Swivel Ball Welded Hydraulic Cylinder, 1.5 in. Rod Diameter

Item # 1307823

Maxim Maxim 3 in. Bore x 10 in. Stroke WSB Swivel Ball Welded Hydraulic Cylinder, 1.5 in. Rod Diameter
Maxim Maxim 3 in. Bore x 10 in. Stroke WSB Swivel Ball Welded Hydraulic Cylinder, 1.5 in. Rod Diameter
$259.99
or
or
financeCard Logo
$44/mo.†  suggested payments with 6 Months Financing or earn $12 in Rewards+ on this purchase.

This item is available online only

Out of stock delivering to

37027

This item is not available

Search Stores

Temporarily unavailable

Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

The Maxim 3 in. Bore x 10 in. Stroke WSB Swivel Ball Welded Hydraulic Cylinder features swivel ball mounts, which make it great for use on compact equipment. This swivel ball hydraulic cylinder is designed for demanding applications and comes built to ensure maximum reliability and performance. All the hydraulic cylinder's seals are manufactured to US specifications to ensure you get a longer lasting, higher quality product.

  • Welded hydraulic cylinder is intended to be used in double-acting applications
  • Piston: ductile iron
  • Piston lock nut: nylock nut
  • Gland: ductile iron with rod wear band
  • Tube: steel tube honed or skived for extended seal life
  • Tube seal: O-ring and backup
  • Rod: ground and polished hard chrome-plated rod
  • Rod seal: U-cup
  • Wiper: polyurethane
  • End mounts: spherical
  • All seals are manufactured to US specifications
  • Ports: O-ring boss
  • Column load: 21,200 lb.
  • Measures 18.25 in. retracted and 28.25 in. extended
  • Pin diameter of 1 in. and rod diameter of 1.5 in.
  • 1 year warranty included with this hydraulic cylinder
