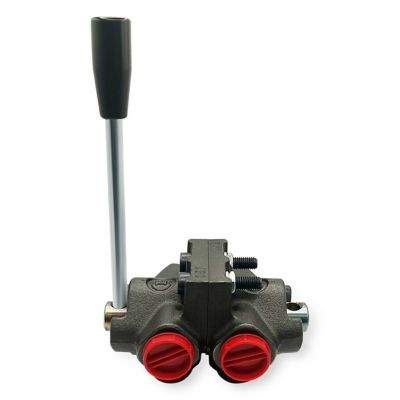

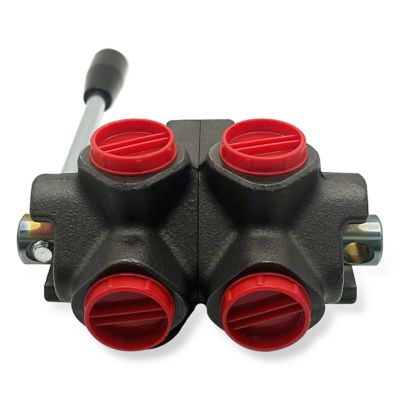

Magister Hydraulics 6 Way Hydraulic Rotary Diverter Valve, SAE 8

6 Way Hydraulic Rotary Diverter Valve, SAE 8.
This valve is made up by two 3-way diverter valves coupled together: each of the two valves is used to divert the inlet flow towards two ports. A single lever controls both sections at the same time. Ideal to control two actuators.
- Body: cast iron.
- Internal parts: hardened and ground steel.
- Seals: BUNA N standard.
- Leakage: Minimal leakage.
CONNECTIONS:
Connect P and P to the 2 pressure flows, ports A and
B to the first actuator and ports A and B to the second actuator. With lever in position 1, P is connected to A and P to A ; with lever in position 2, P is connected to B and P to B . With lever in the central position all ports are connected to each other (open centre).
Made in Europe utilizing American standards, can operate under temperature anywhere from - 40F and up to 140F.
Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).
Made in Europe. 1 Year Warranty.
If you need assistance to choose a proper hydraulic valve, do not hesitate to contact us:
973-344-5313

6 Way Hydraulic Rotary Diverter Valve, SAE 8. 16 GPM. It is used to divert the flow towards two different outlets.
