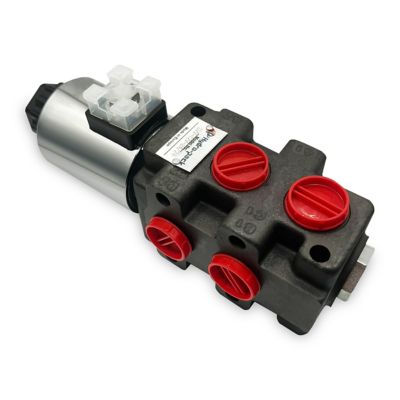

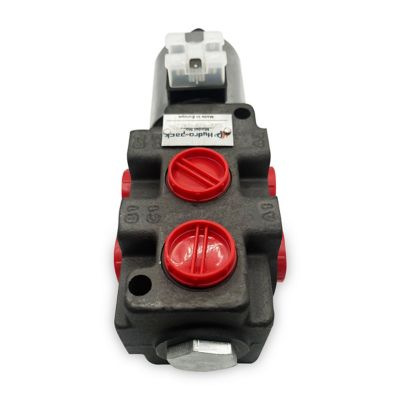

Magister Hydraulics Hydraulic Solenoid Diverter Valve, 6 Ports Selector, 24 GPM

Hydraulic Solenoid Diverter Valve, 6 ports selector, 24 GPM. This diverter valve is a 6-way, 2-position (6/2) solenoid-operated valve. They are used for selective connection of different cylinders/hydraulic motors in the application. When the valve is de-energized, oil is directed from the D & C ports to the first actuator. When the valve coil is energized, oil is directed from the A & B ports to the second actuator. These diverter valves are used together with directional control valves. A and B ports (working ports) from the control valve are connected to P1 and P2 ports of Diverter/Selector valves. Other ports (A, B, C, and D) are connected to cylinders or hydraulic motors in the application.
A valve can be stacked up to 3 valves, allowing for the diverting of flow in 2, 3, or 4 directions depending on the combination chosen.

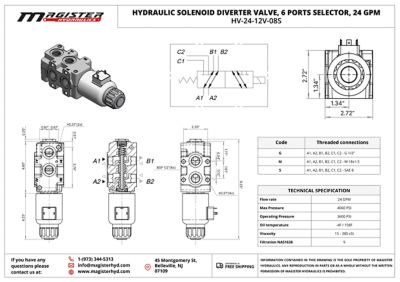

It is made for a max working pressure of 4060 PSI (with operating pressure 3600 PSI) and will accept flows up to 24 GPM - 1/2" ported version. The advanced design of the valve spool ensures that fast spool switching can take place under any conditions without the use of a separate drain line.
Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).
DIN connector not included. Link below
DIN connector
Can operate under temperature anywhere from - 40F and up to 140F. Can be operated from one control level on machines such as forklifts, agricultural front-end loaders, telescopic handlers, and in transmission circuits.
Made in Europe. 1 Year Warranty.
If you need assistance to choose a proper hydraulic valve, do not hesitate to contact us:
973-344-5313
Hydraulic Solenoid Diverter Valve, 6 ports selector, 24 GPM. Valve stackable 6-port/2-way changeover valves are designed to be used when extra circuits are to be operated from one control level on machines such as forklifts, agricultural front-end loaders, telescopic handlers, and in transmission circuits.
