Magister Hydraulics Hydraulic Inline Check Valve, 1/2 in. NPT
Item # 6111230
Item # 6111230

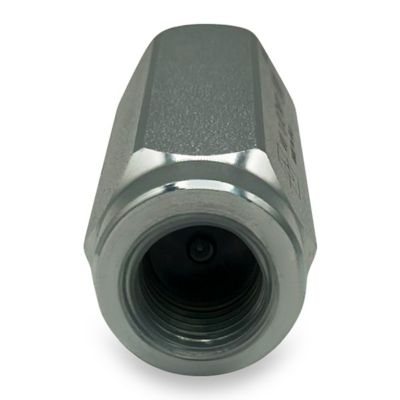

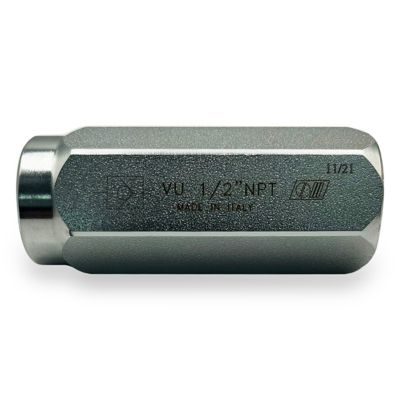

Hydraulic Inline Check Valve, 1/2" NPT. Check valves allow free flow in one direction and is blocks the flow in the reverse direction, used to keep a hydraulic system pressurised.
MATERIALS AND FEATURES:
- Body: zinc-plated steel.
- Internal parts: hardened and ground steel.
- Leakage: guided poppet - no leakage.
CONNECTIONS:

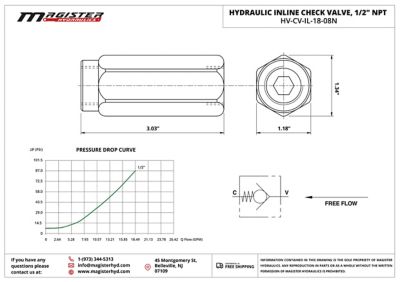

Connect V to the supply and C to the function.
Flow is free from V to C and blocked in the reverse direction.
- Oil temperature: 122° F
- Oil viscosity: 30 cSt
Made in Europe utilizing American standards, can operate under temperature anywhere from - 40F and up to 140F.
Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).
Made in Europe. 1 Year Warranty.
If you need assistance to choose a proper hydraulic valve, do not hesitate to contact us:
973-344-5313
Hydraulic Inline Check Valve, 1/2" NPT. Check valves allow free flow in one direction and is blocks the flow in the reverse direction, used to keep a hydraulic system pressurised.
- Body: zinc-plated steel.
- Internal parts: hardened and ground steel.
- Leakage: guided poppet - no leakage.
- Oil temperature: 122° F
- Oil viscosity: 30 cSt
- 1-year warranty.
- Made in Europe.
- Same day free shipping.
| Brand | Magister Hydraulics |
|---|---|
| Country of Origin | Imported |
| Brand Compatibility | All |
| Compatibility | Universal |
| Inlet Size | 0.5 in. |
| Inlet Type | NPT |
| Maximum Flow Rate | 18 GPM |
| Maximum PSI | 5000 PSI |
| Model Compatibility | Universal |
| Number Of Directional Control Positions | 2 |
| Number Of Working Ports | 2 |
| Outlet Size | 0.5 in. |
| Outlet Type | NPT |
| Primary Material | Steel |
| Product Height | 6 in. |
| Product Length | 6 in. |
| Product Weight | 0.7 lb. |
| Product Width | 6 in. |
| Warranty | 1 |
| Work Port Size | 0.5 in. |
| Work Port Type | NPT |
| Manufacturer Part Number | HV-CV-IL-18-08N |
