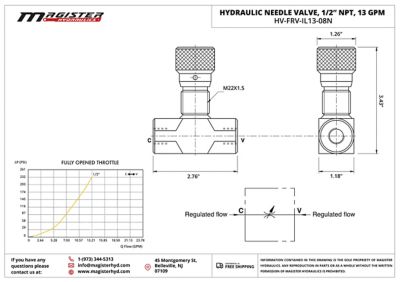

Magister Hydraulics Hydraulic Needle Valve, 1/2 in. NPT, 13 GPM
Item # 6111235
Item # 6111235
Hydraulic Needle Valve, 1/2" NPT, 13 GPM. These valves are used to adjust speed of actuators in both directions. Pressure compensation is not provided, flow rate depends on pressure and oil viscosity. These valves are characterised by a high adjustment accuracy.
MATERIALS AND FEATURES:
- Body: zinc-plated steel.
- Internal parts: hardened and ground steel.
- Leakage control - needle type. Minimal leakage when the valve is closed.
CONNECTIONS:
Connect either ports to the supply and the other to the actuator to control. When used on actuators with double pilot check valves, Valve has to be mounted between the actuator and the double pilot check valve. Flow adjustment is done by rotating the plastic hand knob after loosening the side locking screw. This particular configuration allows an accurate adjustment.
- Oil temperature: 122° F
- Oil viscosity: 30 cSt
Made in Europe utilizing American standards, can operate under temperature anywhere from - 40F and up to 140F.
Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).
Made in Europe. 1 Year Warranty.
If you need assistance to choose a proper hydraulic valve, do not hesitate to contact us:
973-344-5313
Hydraulic Needle Valve, 1/2" NPT, 13 GPM. These valves are used to adjust speed of actuators in both directions. Pressure compensation is not provided, flow rate depends on pressure and oil viscosity. These valves are characterised by a high adjustment accuracy.
- Body: zinc-plated steel.
- Internal parts: hardened and ground steel.
- Leakage control - needle type. Minimal leakage when the valve is closed.
- Oil temperature: 122° F
- Oil viscosity: 30 cSt
- 1-year warranty.
- Made in Europe.
- Same day free shipping.
| Brand | Magister Hydraulics |
|---|---|
| Country of Origin | Imported |
| Brand Compatibility | All |
| Compatibility | Universal |
| Inlet Size | 0.5 in. |
| Inlet Type | NPT |
| Maximum Flow Rate | 13 GPM |
| Maximum PSI | 5000 PSI |
| Model Compatibility | Universal |
| Number Of Directional Control Positions | 2 |
| Number Of Working Ports | 2 |
| Outlet Size | 0.5 in. |
| Outlet Type | NPT |
| Primary Material | Steel |
| Product Height | 6 in. |
| Product Length | 6 in. |
| Product Weight | 1 lb. |
| Product Width | 6 in. |
| Warranty | 1 |
| Work Port Size | 0.5 in. |
| Work Port Type | NPT |
| Manufacturer Part Number | HV-FRV-IL13-08N |
