Magister Hydraulics 3 Way Hydraulic Rotary Diverter Valve, SAE 10
New Arrival
Item # 611123899
Neighbor’s Club Members earn points with purchases.
New Arrival
Item # 611123899
Neighbor’s Club Members earn points with purchases.
3 Way Hydraulic Rotary Diverter Valve, SAE 10. It is used to divert the flow towards two different outlets.
- Body: cast iron.
- Internal parts: hardened and ground steel.
- Seals: BUNA N standard.
- Leakage: Minimal leakage.

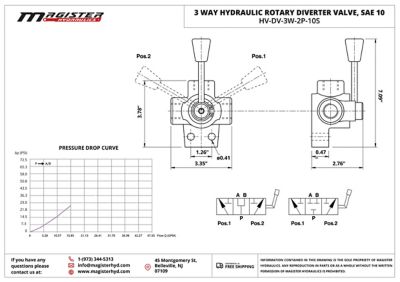

CONNECTIONS:
Connect P to the supply, A and B to the ports of
the hydraulic circuit where flow has to be diverted to. With lever in position 1 the flow is connected towards port A; with lever in position 2, the flow is connected towards port B. With lever in central position ports P, A and B are all connected (open centre).
- Oil temperature: 122° F
- Oil viscosity: 30 cSt
Made in Europe utilizing American standards, can operate under temperature anywhere from - 40F and up to 140F.
Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).
Made in Europe. 1 Year Warranty.
If you need assistance to choose a proper hydraulic valve, do not hesitate to contact us:
973-344-5313
3 Way Hydraulic Rotary Diverter Valve, SAE 10. 24 GPM. It is used to divert the flow towards two different outlets.
- Body: cast iron.
- Internal parts: hardened and ground steel.
- Seals: BUNA N standard.
- Leakage: Minimal leakage.
- Oil temperature: 122° F
- Oil viscosity: 30 cSt
- 1-year warranty.
- Made in Europe.
- Same day free shipping.
| Brand | Magister Hydraulics |
|---|---|
| Country of Origin | Imported |
| Brand Compatibility | All |
| Compatibility | Universal |
| Inlet Size | 0.625 in. |
| Inlet Type | Other |
| Maximum Flow Rate | 24 GPM |
| Maximum PSI | 3600 PSI |
| Model Compatibility | Universal |
| Number Of Directional Control Positions | 3 |
| Number Of Working Ports | 2 |
| Outlet Size | 0.625 in. |
| Outlet Type | SAE |
| Primary Material | Cast Iron |
| Product Height | 3 in. |
| Product Length | 4 in. |
| Product Weight | 2 lb. |
| Product Width | 3 in. |
| Warranty | 1 |
| Work Port Size | 0.625 in. |
| Work Port Type | SAE |
| Manufacturer Part Number | HV-DV-3W-2P-10S |
