Magister Hydraulics 3 Way Hydraulic Rotary Diverter Valve, SAE 8
New Arrival
Online Only
Item # 6111239
Spend $49.99 to unlock free delivery!
Neighbor’s Club Members earn points with purchases.
New Arrival
Online Only
Item # 6111239
Spend $49.99 to unlock free delivery!
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.

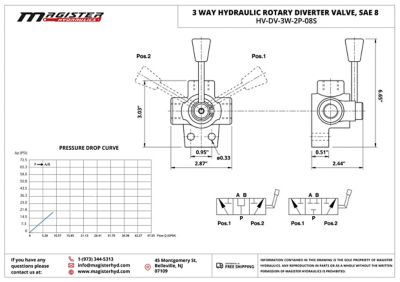

3 Way Hydraulic Rotary Diverter Valve, SAE 8. It is used to divert the flow towards two different outlets.
- Body: cast iron.
- Internal parts: hardened and ground steel.
- Seals: BUNA N standard.
- Leakage: Minimal leakage.
CONNECTIONS:
Connect P to the supply, A and B to the ports of
the hydraulic circuit where flow has to be diverted to. With lever in position 1 the flow is connected towards port A; with lever in position 2, the flow is connected towards port B. With lever in central position ports P, A and B are all connected (open centre).
- Oil temperature: 122° F
- Oil viscosity: 30 cSt
Made in Europe utilizing American standards, can operate under temperature anywhere from - 40F and up to 140F.
Same-Day Shipping: all orders, made until 3 pm, will be shipped the same day (except weekends and holidays).
Made in Europe. 1 Year Warranty.
If you need assistance to choose a proper hydraulic valve, do not hesitate to contact us:
973-344-5313
3 Way Hydraulic Rotary Diverter Valve, SAE 8. 16 GPM. It is used to divert the flow towards two different outlets.
- Body: cast iron.
- Internal parts: hardened and ground steel.
- Seals: BUNA N standard.
- Leakage: Minimal leakage.
- Oil temperature: 122° F
- Oil viscosity: 30 cSt
- 1-year warranty.
- Made in Europe.
- Same day free shipping.
| Brand | Magister Hydraulics |
|---|---|
| Country of Origin | Imported |
| Brand Compatibility | All |
| Compatibility | Universal |
| Inlet Size | 0.5 in. |
| Inlet Type | Other |
| Maximum Flow Rate | 16 GPM |
| Maximum PSI | 4300 PSI |
| Model Compatibility | Universal |
| Number Of Directional Control Positions | 3 |
| Number Of Working Ports | 2 |
| Outlet Size | 0.5 in. |
| Outlet Type | SAE |
| Primary Material | Cast Iron |
| Product Height | 4 in. |
| Product Length | 8 in. |
| Product Weight | 8 lb. |
| Product Width | 6 in. |
| Warranty | 1 |
| Work Port Size | 0.5 in. |
| Work Port Type | SAE |
| Manufacturer Part Number | HV-DV-3W-2P-08S |
Q: Is SAE-8 an O-ring seal? If so, is the O-ring in the valve body or on the male hose input end?
2 months ago- A: Hi Chuck! "SAE 8" refers to a straight thread port. The O-ring sits directly on the male hose input end (at the base of the threads).2 months agoHelpful?
Q&As
Q: Is SAE-8 an O-ring seal? If so, is the O-ring in the valve body or on the male hose input end?
2 months ago- A: Hi Chuck! "SAE 8" refers to a straight thread port. The O-ring sits directly on the male hose input end (at the base of the threads).2 months agoHelpful?
