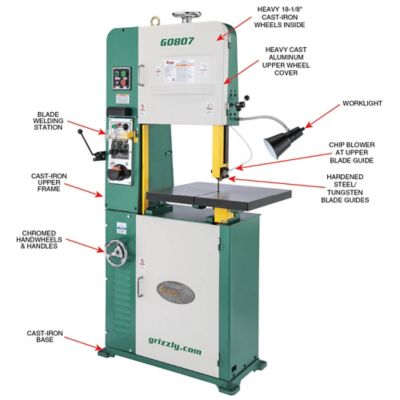

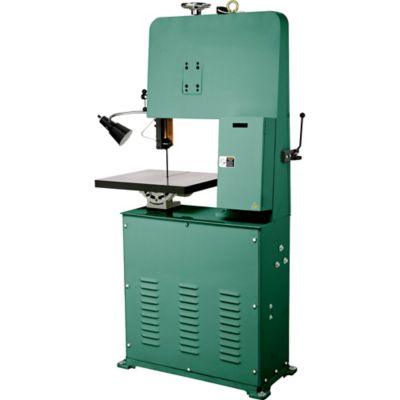

Grizzly G0807 18 in. 2 HP Variable-Speed Vertical
The G0807 18"" 2 HP Variable-Speed Vertical Metal-Cutting Bandsaw is ready handle all of your metal-cutting needs, even heavy production. The extra-large table tilts side to side and front to back, allowing for the squarest cuts even with tight contour work.
Variable-speed blade control is available with just a turn of the handle, so you can handle even the toughest cutting jobs.

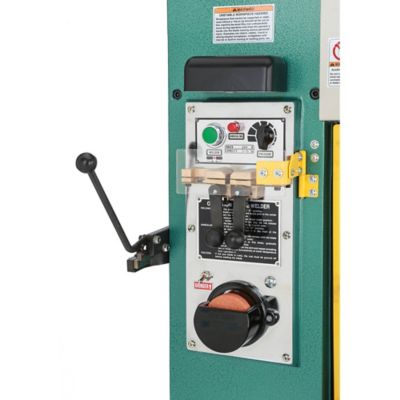

The built-in blade cutting and welding station with 1/8 HP grinder is easy to use, so you can make your own blades and save money!
The blade welding station also lets you create seamless inside cuts by cutting the blade and re-welding it inside your workpiece!
The durable cast-iron top end and platform provides a rock-solid, vibration-free table area that will last for years to come.
Limit switches on upper and lower wheel cover doors will not allow bandsaw to start if doors are open.
Get durability with seamless metal cutting with this rock-solid bandsaw.Like all Grizzly bandsaws, the G0807 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects.
The G0807 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information.
The Grizzly Customer Service and Technical Support Teams are U.S.-based. Parts and accessories for the bandsaw may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.
SPECIFICATIONS:This machine is prewired for 220V operation. 110V operation requires purchase and installation of conversion kit P0807425.- Fully-balanced, 18-1/8"" x 1-1/4"" cast-iron wheels
- Rubber-bonded wheels
- Rack-and-pinion upper guide adjustment
- Built-in blade welder and grinder
- Annealing station
- Precision-ground cast-iron table
- Hardened tungsten blade guides
- Chip blower
- Worklight
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on tools? Check out our guide on essential woodworking power tools in the product documents section.
- Main motor: 2 HP, 110V/220V (prewired for 220V) single-phase, 19A/9.5A
- Grinder motor: 1/8 HP, 0.6A
- Grinder wheel grit: #80
- Throat (max. width left of blade): 17-9/16""
- Maximum cutting height: 9-5/8""
- Blade speed: 88-384 FPM
- Blade length range: 139-3/8-140-1/2""
- Blade width range: 1/8-5/8""
- Blade welder thickness range: 0.025""
- Blade welding power: 2.4 KVA
- Table size: 22-1/8"" x 19-7/8""
- Table tilt: 15° left/right, 10° front/back
- Floor to table height: 38-1/2""
- Footprint: 16-1/2"" x 34""
- Overall dimensions: 40-1/2"" W x 21-1/4"" D x 73-1/2"" H
- Approximate shipping weight: 999 lbs.
| Brand | Grizzly |
|---|---|
| Country of Origin | Imported |
| Amperage | 19 A |
| Blade Change Type | Keyless |
| Cord Length | 12.5 ft. |
| Cut Through | Steel |
| Dust Collection Method | None |
| Features | No Additional Features |
| Horsepower | 2 HP |
| Housing Material | Steel |
| Maximum Blade Length | 140.5 in. |
| Maximum Blade Width | 0.625 in. |
| Maximum Cutting Width | 17.563 in. |
| Maximum Speed | 385 FMP |
| Minimum Blade Length | 139.375 in. |
| Minimum Blade Width | 0.125 in. |
| Minimum Speed | 88 FPM |
| Number of Speeds | 296 |
| Portable or Stationary | Stationary |
| Power Type | Electric |
| Product Height | 73.5 in. |
| Product Length | 21.25 in. |
| Product Weight | 803 lb. |
| Product Width | 40.5 in. |
| Rectangle Length Capacity | 17.563 in. |
| Rectangle Width Capacity | 17.563 in. |
| Round Capacity | 17.563 in. |
| Table Height From Floor | 38.5 in. |
| Table Length | 19.88 in. |
| Table Tilt Range | 0 N/A |
| Table Width | 22.13 in. |
| Variable Speed | Variable Speed |
| Voltage | 110 V |
| Warranty | 1 |
| Manufacturer Part Number | G0807 |
