GPI MR 5-30 Mechanical Fuel Meter
GPI MR 5-30 Mechanical Fuel Meter
4.528 Reviews
Item # 395815599
$179.99
Neighbor’s Club Members earn points with purchases.
$179.99
New Cardmembers earn a $20 Reward‡ with qualifying purchase of $20 or more plus earn 5% in Rewards+ on this purchase. Valid through 6/28/26.Apply now
This item is available online only
Out of stock delivering to
37027
Pickup Nearby at ASHLAND CITY TN(23) miles FREE
Neighbor’s Club Members earn points with purchases.
GPI MR 5-30 Mechanical Fuel Meter fits virtually all-mounting applications. The unique 90° incremental rotations of both the inlet and outlet ports make for easy installation and reduce the need for extra elbows. The MR 5-30 fuel pump meter is calibrated at the factory for diesel fuel. Metric models of this popular meter are available offering measurement in liters with NPT or BSPP threads. Field calibrated to measure other fuels or to adjust for differences in viscosity and flow rates.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Size: 3/4 in. inlet/outlet (1 or 1-1/2 in. also available)
- Type: Mechanical Nutating Disc
- Material: Aluminum
- Flow Rate: 5 to 30 GPM (19 - 114 LPM)
- Operating Temperature: -20 to 125 °F
- Includes: Twist reset knob, built-in-strainer, 90 ° incremental rotation as needed, and 4-digit display
- Compatible with Gasoline, Gasoline/Ethanol blends at levels designated as "gasohol" (E10 maximum), Diesel, and Kerosene
- Applications: Designed for Outdoor Use in Fuel Transfer Applications Above 5 GPM
- Pressure Rating: 50 PSI
- Standard: U.L. Listed
- 2 year limited warranty
- Optional pulse kit available
- Fuel pump meter for use with fuel transfer pumps
| Brand | GPI |
|---|---|
| Country of Origin | Made in USA |
| Compatibility | For use with Gasoline (alcohol blends), diesel fuel (biodiesel blends B20) and kerosene |
| Package Quantity | 1 |
| Primary Color | Black |
| Primary Material | Aluminum |
| Product Height | 6 in. |
| Product Length | 7 in. |
| Product Weight | 8.1 lb. |
| Product Width | 6 1/4 in. |
| Pump Accessory Type | Meters |
| Manufacturer Part Number | 126300-10TSC |
Start typing your question and we'll check if it was already asked and answered.
1 - 7 of 7 Questions
Newest questions
Q: Can you shipping this product to saudi arabia, I really want this GPI MR 5-30 Fuel Meter , I will pay the shipping charges, please consider my request
9 months ago1 Answer
- A: Hello, thank you for your question. Unfortunately, we do not offer shipping outside of the USA at this time.9 months agoHelpful?
Q: doe's this come with the fittings to connect to a 1 1/2 line or will the fittings need to be ordered extra?
a year ago1 Answer
- A: Hello, thank you for your question. A fitting kit will need to be purchased separately. A parts list with part numbers is included on pages 8-9 in the user manual. A link to the manual is included below. https://media.tractorsupply.com/is/content/TractorSupplyCompany/tsc/product/3/95/81/55/3958155_Man1.pdf?a year agoHelpful?
Q: Is this gravity fed or does it need electricity?
4 years ago1 Answer
- A: Hello, The MR 5-30 can not be used in a gravity fed system. It will need to be attached to a pump to push the fuel through it. Thank you, GPI Team.4 years agoHelpful?
Q: Can this be installed in line on fuel hose just prior to nozzle so I can watch quantity of fuel being dispensed into equipment away from tank?
5 years ago1 Answer
- A: A large mechanical meter like the MR 5-30 is too bulky to be installed at the nozzle end. It is typically installed in a stationary position. For installation at the nozzle, the 01A31GM would be a better choice.5 years agoHelpful?
Q: Can this unit be accurately calibrated for, and will it work with 100LL aviation fuel ? 100LL weighs 6 lb/gallon
5 years ago2 Answers
- A: It works off of an internal turbine with a fixed diameter measuring the speed through the orfice gives you the cubic flow which is then calculated into your GPM the weight of the fuel doesn’t affect it in my experience5 years agoHelpful?
Q: Will this work for gasoline?
6 years ago1 Answer
- A: Yes. For Use With: Gasoline, Gasoline/Ethanol blends at levels designated as "gasohol" (E10 maximum), Diesel, and Kerosene6 years agoHelpful?
Q: Can you install a filter before the meter or should it be after? Also I got a gpi pump and a filter just wonder how some have plumbed it in to all work with the meter as well. The kit you offer for the filter just comes straight out so how would add meter
7 years ago1 Answer
- A: You would be better off installing the filter before the flow meter so it serves as a filter for your flow meter. The filter kit has an adapter with two end connections so you'll have to use a piece of pipe between that and the meter to install. If you have questions or need further assistance don't hesitate to give us a call and we can help guide you through installation. Thank you, GPI sales team.7 years agoHelpful?
Similar Items
-
Top Rated
-
-
-
-
-
-
-
Top Rated
-
-
-
-
Items You May Like
Customers Also Bought
-
-
-
Top Rated
-
Top Rated
-
-
Top Rated
-
Top Rated
-
Top Rated
-
-
-
-
Reviews

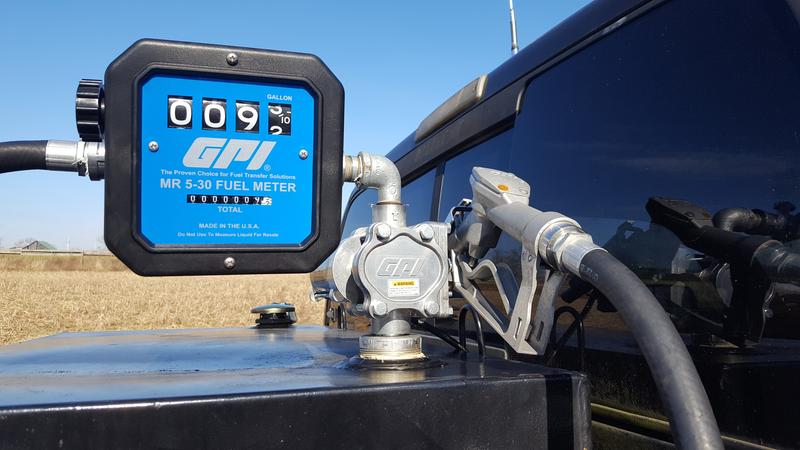

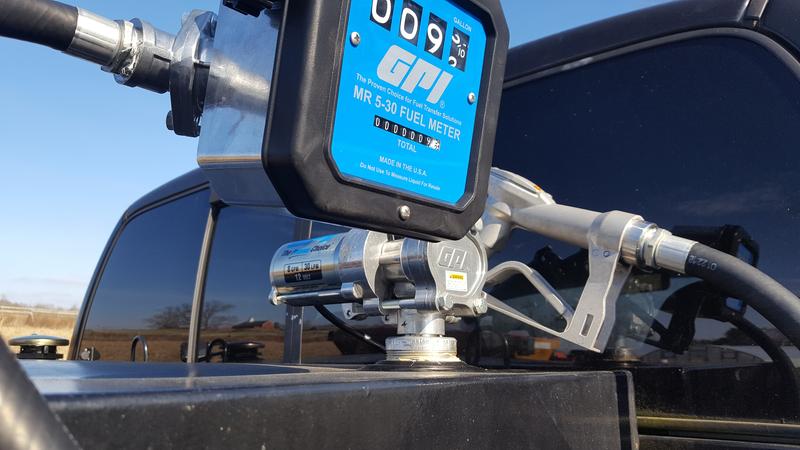

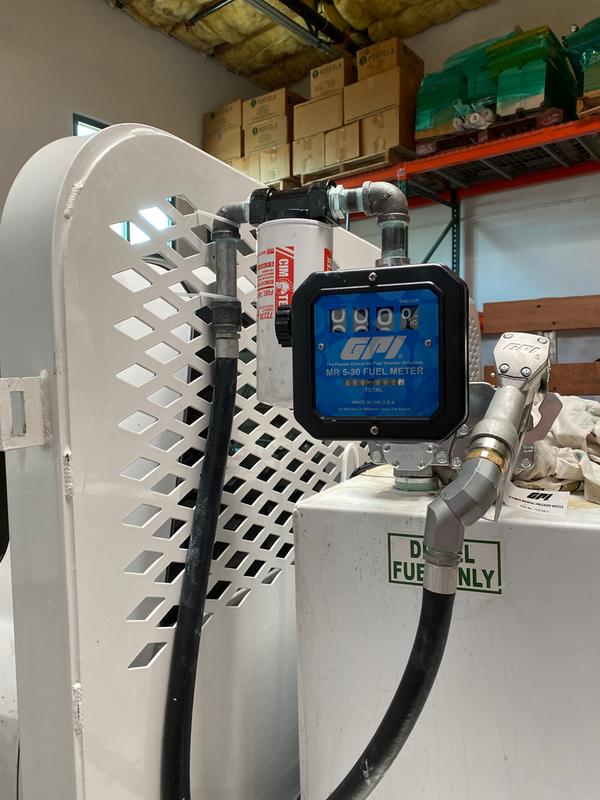

Customer Images and Videos
- purchase
- large
- accuracy
- instructions
- mounting
- opening
- packaging
- price
1 to 4 of 28 Reviews .
1 – 4 of 28 Reviews
Most Recent
Southern California
Review 1
5 out of 5 stars.
Great product
5 years ago
Exactly as stated in description. A bit larger than expected but no big deal. Mounting was easy and the mounting options include vertical, horizontal, and even inverted. I had to take the face plate and internal working apart to flip the screen so I could mount it with the reset knob on the other side. The instructions detailed how to make the change and if you follow the directions it’s no problem.
The unit is solid and appears to be extremely well made.
Yes, I recommend this product.
Corydon, In
Reviews 5
4 out of 5 stars.
Works as expected, seems accurate.
6 years ago
I have a 12 GPM pump, with a filter & this in down to about 5 1/2 GPM, but I’m ok with that as it seems accurate. Only reason for 4 instead of 5 stars, the reset knob seems a bit cheap. And is a little finicky to reset. Other then that, works exactly as expected,
Yes, I recommend this product.
Response from GPI Inside Sales:
6 years ago
GPI Inside Sales
Thanks for purchasing our fuel meter! Anything you put in-line will affect your flow rate, although dropping it from 12 GPM to 5 1/2 GPM sounds like a lot... You may want to call us so we can look further into your application if you are concerned about it. Aside from that the reset knob is a simple piece and we made it economical in case a customer breaks one off so they can repair it with little to no cost. Any questions or concerns please call us!
San Angelo, Texas
Review 1
4 out of 5 stars.
dependable
6 years ago
fuel meter has work flawlessly and withstands the west Texas weather.
SweepstakesYes
Yes, I recommend this product.
Response from GPI Inside Sales:
6 years ago
GPI Inside Sales
Thanks for your feedback on the MR 5-30! This fuel meter should give you years of trouble free service. If you run into any issues please give us a call! Thank you, GPI sales team.
san angelo, texas
Reviews 2
4 out of 5 stars.
durable
7 years ago
this was bought to replace an identical meter that got broken off by one of our employees. previous meter was 4 years old and performed day in and day out with no problems.
SweepstakesYes
Yes, I recommend this product.
Response from GPI Inside Sales:
7 years ago
GPI Inside Sales
Thanks for purchasing our MR 5-30 fuel meter! Glad to hear your first one held up and this one should as well! If you run into any issues please give us a call. Thank you, GPI sales team.
