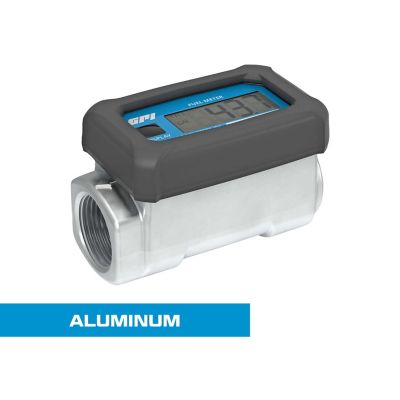

GPI Digital Turbine Flow Meter for Fuel, 3-30 GPM, 1 in. NPT
$274.99
GPI Digital Turbine Flow Meter for Fuel, 3-30 GPM, 1 in. NPT
GPI Digital Turbine Flow Meter for Fuel, 3-30 GPM, 1 in. NPT
Item # 395816399
Stocked & Ready
Add this item to unlock free delivery!
Add a protection plan
Powersport plans are not available in CA & MD.
Get everything you need
Neighbor’s Club Members earn points with purchases.
GPI Digital Turbine Flow Meter for Fuel, 3-30 GPM, 1 in. NPT
Item # 395816399
Stocked & Ready
Add this item to unlock free delivery!
Shopping at
Grassland (franklin) TN
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Add a protection plan
Powersport plans are not available in CA & MD.
Get everything you need
Neighbor’s Club Members earn points with purchases.

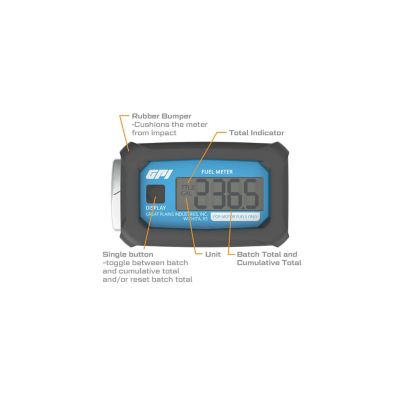

GPI 01A 3-30 GPM end-of-hose fuel meter with battery powered display and 1 inch NPT. Gallon measurement model. The GPI 01A digital fuel meter series is designed to mount between the hose and the fuel nozzle, measuring flow rates from 3 to 30 GPM and is factory calibrated for use with diesel, gasoline, ethanol blends, or kerosene. Rubber bumper protects flow meter from damage. This digital fuel meter mounts easily to the end of a hose and is ideal for use with free-flow gravity systems or combined with an electric transfer pump as part of a fuel transfer system. Single-button designs allows users to toggle between batch and cumulative total and/or reset batch total. DO NOT USE with water or chemicals.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Size: 1 in. FNPT
- Type: Electronic Digital Turbine
- Material: Aluminum
- Flow Meter Rate: 3 to 30 GPM
- Operating Temperature: 14 to 130 degrees F

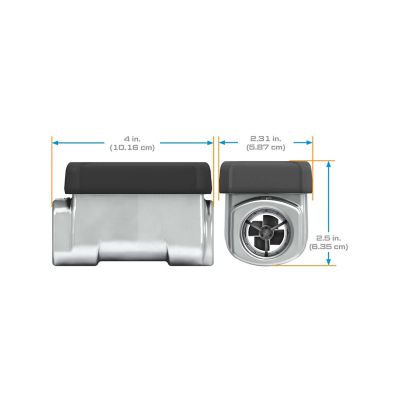

- Dimensions: 4 in. x 2-1/2 in. x 2 in.
- Batch and Cumulative Total to 9999 shown on the digital flow meter's display
- For use with: Gasoline (up to 15% Alcohol Blends such as E15), Diesel Fuel (up to 20% Bio-diesel Blends such as B20), and Kerosene
- Applications: Designed for outdoor use in fuel transfer applications from 3 to 30 GPM including gravity flow tanks
- Electronic fuel meter powered by two AAA Batteries
- Pressure Rating: 300 PSI
- 2 year limited warranty
- For motor fuels only
- Accuracy (+/-) 2.5%
- Easily change unit of measure (Gal/Liters) by holding button down while replacing the batteries
| Brand | GPI |
|---|---|
| Country of Origin | Made in USA |
| Compatibility | For use with Gasoline (up to 15% alcohol blends such as E15), diesel fuel (up to 20% biodiesel blends such as B20) and kerosene |
| Package Quantity | 1 |
| Primary Color | Gray |
| Primary Material | Aluminum |
| Product Height | 2 1/2 in. |
| Product Length | 5 3/4 in. |
| Product Weight | 1.46 lb. |
| Product Width | 2 1/9 in. |
| Pump Accessory Type | Meters |
| Manufacturer Part Number | 113255-20M6TSC |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 8 of 8 Questions
Newest questions
Q: Meter not reading correct.gal
2 months ago1 Answer
- AI-assisted, Human-approvedA: This meter has a 5% accuracy rating. If it is reading in liters, you can change the unit of measure to gallons by holding the button down while replacing the batteries. Additionally, ensure your flow rate is between 3 and 30 GPM for proper operation. We recommend referring to the user manual or reaching out to GPI directly for more troubleshooting assistance. A link to the user manual is included below or you can find a clickable link under the "Product Documents" tab on the product detail page. https://media.tractorsupply.com/is/content/TractorSupplyCompany/tsc/product/3/95/81/63/3958163_Man1.pdf2 months agoHelpful?
Q: Mine is currently in Liters and I need it in gallons. Is there a way to toggle it to gallons ?
3 years ago1 Answer
- A: Hi there, Here is the information we received back from the vendor- Yes please provide the customer our Product Support Team contact information ( 1-800-835-0113 Mon. – Fri., 8Am-5pm) , they can easily walk the customer through the process of changing it to read from Liters to Gallons.3 years agoHelpful?
Q: Can I run hydraulic fluid through this?
3 years ago1 Answer
- A: hi Tommy123456789, Great question! Per the manufacturer, this flow meter is compatible with motor fuels only. Compatibility For use with Gasoline (up to 15% alcohol blends such as E15), diesel fuel (up to 20% biodiesel blends such as B20) and kerosene3 years agoHelpful?
Q: Will this work for propylene glycol?
6 years ago1 Answer
- A: For use with Gasoline (up to 15% alcohol blends such as E15), diesel fuel (up to 20% biodiesel blends such as B20) and kerosene.5 years agoHelpful?
Q: Will this fit your GPI M-150S-AU Fuel Pump, 110000-100TSC ?
6 years ago1 Answer
- A: Yes, it will.6 years agoHelpful?
Q: The digital display has stopped working. Put new batteries in but is still not working and the button quit a while ago so I was only using a total gallons display. Can I just get the display module and not have to buy the total meter pack?
6 years ago1 Answer
- A: The 01 series flow meter is an economy meter, so we do not sell individual parts as it is a whole good item. However, the 01 series does have a 2 year warranty that pertains to any manufacturer defects. You may want to call us for more clarification to your issue, but it does sound like your display has taken an impact. You can reach us at 316-686-7361.6 years agoHelpful?
Q: Is there a way to reset gallons back to 0.0 after each use?
7 years ago1 Answer
- A: Yes you will want to insure the display is on Total 1 and then hold the display button down for approximately 5 seconds or until the total zeroes out. If you have any issues please give us a call at 316-686-7361. Thank you, GPI sales team.7 years agoHelpful?
Q: Can this meter be reset back to zero? Thanks
7 years ago1 Answer
- A: Thanks for purchasing our 01A fuel meter! Yes, the flow meter can be reset to zero. First, insure your display reads total 1. Then hold the display button down for approximately 5 seconds or until it zeros out. Should you have any issues please give us a call. Thank you, GPI sales team.7 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 8 of 8 Questions
Newest questions
Q: Meter not reading correct.gal
2 months ago1 Answer
- AI-assisted, Human-approvedA: This meter has a 5% accuracy rating. If it is reading in liters, you can change the unit of measure to gallons by holding the button down while replacing the batteries. Additionally, ensure your flow rate is between 3 and 30 GPM for proper operation. We recommend referring to the user manual or reaching out to GPI directly for more troubleshooting assistance. A link to the user manual is included below or you can find a clickable link under the "Product Documents" tab on the product detail page. https://media.tractorsupply.com/is/content/TractorSupplyCompany/tsc/product/3/95/81/63/3958163_Man1.pdf2 months agoHelpful?
Q: Mine is currently in Liters and I need it in gallons. Is there a way to toggle it to gallons ?
3 years ago1 Answer
- A: Hi there, Here is the information we received back from the vendor- Yes please provide the customer our Product Support Team contact information ( 1-800-835-0113 Mon. – Fri., 8Am-5pm) , they can easily walk the customer through the process of changing it to read from Liters to Gallons.3 years agoHelpful?
Q: Can I run hydraulic fluid through this?
3 years ago1 Answer
- A: hi Tommy123456789, Great question! Per the manufacturer, this flow meter is compatible with motor fuels only. Compatibility For use with Gasoline (up to 15% alcohol blends such as E15), diesel fuel (up to 20% biodiesel blends such as B20) and kerosene3 years agoHelpful?
Q: Will this work for propylene glycol?
6 years ago1 Answer
- A: For use with Gasoline (up to 15% alcohol blends such as E15), diesel fuel (up to 20% biodiesel blends such as B20) and kerosene.5 years agoHelpful?
Q: Will this fit your GPI M-150S-AU Fuel Pump, 110000-100TSC ?
6 years ago1 Answer
- A: Yes, it will.6 years agoHelpful?
Q: The digital display has stopped working. Put new batteries in but is still not working and the button quit a while ago so I was only using a total gallons display. Can I just get the display module and not have to buy the total meter pack?
6 years ago1 Answer
- A: The 01 series flow meter is an economy meter, so we do not sell individual parts as it is a whole good item. However, the 01 series does have a 2 year warranty that pertains to any manufacturer defects. You may want to call us for more clarification to your issue, but it does sound like your display has taken an impact. You can reach us at 316-686-7361.6 years agoHelpful?
Q: Is there a way to reset gallons back to 0.0 after each use?
7 years ago1 Answer
- A: Yes you will want to insure the display is on Total 1 and then hold the display button down for approximately 5 seconds or until the total zeroes out. If you have any issues please give us a call at 316-686-7361. Thank you, GPI sales team.7 years agoHelpful?
Q: Can this meter be reset back to zero? Thanks
7 years ago1 Answer
- A: Thanks for purchasing our 01A fuel meter! Yes, the flow meter can be reset to zero. First, insure your display reads total 1. Then hold the display button down for approximately 5 seconds or until it zeros out. Should you have any issues please give us a call. Thank you, GPI sales team.7 years agoHelpful?
