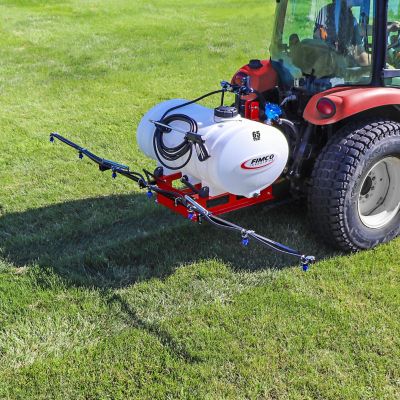

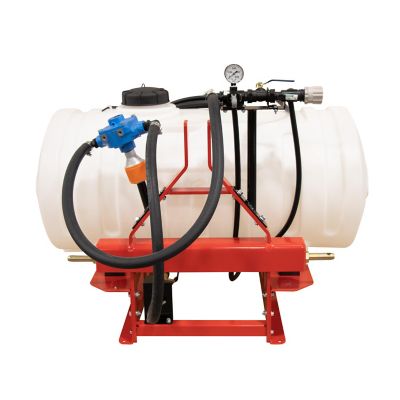

Fimco 65 Gal 3 Point Sprayer with 6 Roller Pump, Deluxe Spray Wand and 7 Nozzle Boom
$1,499.99
Fimco 65 Gal 3 Point Sprayer with 6 Roller Pump, Deluxe Spray Wand and 7 Nozzle Boom
Online Only
Fimco 65 Gal 3 Point Sprayer with 6 Roller Pump, Deluxe Spray Wand and 7 Nozzle Boom
Item # 6001474
$1,499.99
or
or
Get everything you need
Neighbor’s Club Members earn points with purchases.
Online Only
Fimco 65 Gal 3 Point Sprayer with 6 Roller Pump, Deluxe Spray Wand and 7 Nozzle Boom
Item # 6001474
$1,499.99
or
or
$63/mo.† suggested payments with 24 Months Financing or earn $74 in Rewards+ on this purchase.
Valid 5/15/2026 - 7/5/2026
Valid 5/15/2026 - 7/5/2026
This item is available online only
Delivery to
For delivery, this item requires a Big & Bulky handling fee.
Get everything you need
Neighbor’s Club Members earn points with purchases.
Maximize your spraying power and efficiency with the FIMCO 65 Gallon 3 Point Sprayer with 6 roller pump, spray wand and 7-nozzle boom. Engineered for reliable performance on Category 1 or 2 tractors, this robust unit features a durable 65-gallon corrosion-resistant poly tank, allowing you to cover substantial areas with fewer stops. This sprayer boasts a powerful 6-roller pump, capable of delivering higher pressures and flow rates for demanding applications. The included 7-nozzle boom provides an expansive 144-inch spray swath, making quick and efficient work of fields, pastures, and large properties. Each nozzle is designed for consistent and uniform application of herbicides, pesticides, or liquid fertilizers. The adjustable boom height allows for customized spray patterns to suit various terrains and applications. Built for durability and performance, this sprayer is a dependable tool for all your property maintenance needs.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on sprayers? Check out our guide on agricultural and lawn sprayers in the product documents section.
- Cast iron 6 roller pump provides up to 9.76 GPM at 540 RPM
- Category 1 hitch compatible
- Durable 65 Gallon blow molded tank features UV stabilizers and molded drain port and 5 inch lid for easy filling
- Durable 65 Gallon blow molded tank features UV stabilizers and molded drain port and 5 inch lid for easy filling
- Pistol Grip Spray Wand with 25 of Hose
| Brand | Fimco |
|---|---|
| Country of Origin | Made in USA |
| Boom Maximum Spray Width | 12 ft |
| Boom Nozzle Count | 7 |
| Boom Style | Folding Boom |
| Chemical Compatibility | Herbicide, Grass Killer, Pesticide, Most Liquids, Weed Killer, Repellents, Fertilizer, Insecticide, Repellent, Fungicide |
| Features | Deluxe Spray Wand, Adjustable Pattern Tip, 7-Nozzle Breakaway Boom, 6 Roller Pump |
| Hose Diameter | 0.375 in. |
| Hose Length | 25 ft. |
| Maximum Flow Rate | 9.76 GPM |
| Maximum Operating Pressure | 150 PSI |
| Mounting Type | Pin |
| Power Type | Other |
| Product Height | 39 in. |
| Product Length | 47 in. |
| Product Weight | 151 lb. |
| Product Width | 33 in. |
| Pump Type | Roller |
| Boom Width | 10 ft |
| Tank Capacity | 65 gal. |
| Spray Method | Boom Spraying (Precision), Spot Spraying |
| Tank Material | Poly |
| Warranty | 1 yr Consumer / 90 day Commercial |
| Manufacturer Part Number | 5303252 |
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 10 Questions
Newest questions
Q: Does the boom fold back for narrow spaces or if it bumps an object e.g. post, tree? Similar to the fimco pull behind
2 months ago1 Answer
- AI-generatedA: Yes, this sprayer features a folding boom for easier navigation in narrow spaces. It also includes a 7-nozzle breakaway boom design, which allows the boom to fold back if it happens to bump into an object like a post or tree.2 months agoHelpful?
Q: What is the spraying pressure at the nozzle?
2 months ago1 Answer
- A: The Fimco 65 Gallon 3 Point Sprayer (Model 3PT-65-6R-7) features a Hypro 6-roller pump capable of a maximum system pressure of 300 PSI. However, the sprayer is typically rated for a standard operating pressure of 150 PSI.2 months agoHelpful?
Q: Does this unit include agitation and or bypass?
2 months ago1 Answer
- A: The Fimco 65 Gal 3 Point Sprayer (Model 5303252) includes a bypass system for pressure regulation, which also provides a form of hydraulic agitation in the tank.2 months agoHelpful?
Q: What brand pressure regulator and other key components are installed? The FIMCO web-site is short on details.
9 months ago1 Answer
- A: TeeJet pressure regulator, hypro roller pump.9 months agoHelpful?
Q: Can you reach the on/off lever from the seat of the tractor?
9 months ago1 Answer
- A: All depends on the location of where your 3pt connection is whether you would be able to reach the on/off lever for the boom.9 months agoHelpful?
Q: I like to order 3 point sprayer I need to be tax exempt What I do
10 months ago1 Answer
- A: You would need to contact your local Tractor Supply for this question if you're going to be ordering from them, as we don't have anything to do with their sales.10 months agoHelpful?
Q: Is this sprayer to big for a 28hp mihindra tractor
11 months ago1 Answer
- A: Keith, this is a category I 3 Point sprayer. When fully filled, this sprayer will weight approximately 700 lbs. Consult your owner's manual for your vehicle to verify that you are within its load carrying capacity.11 months agoHelpful?
Q: Do you need to buy a coupler or is it included? Also is a 90 HP tractor too powerful for this unit?
11 months ago1 Answer
- A: This sprayer comes with a 5/8" quick coupler. No, a 90 HP tractor PTO is generally not too much power for a Hypro 6-roller pump.11 months agoHelpful?
Q: Does this come fully assembled? If not, what level of assembly is required?
11 months ago1 Answer
- A: The sprayer is mostly assembled. There are 6 steps to complete assembly, which would be to attach the boom, connect a hose from the roller pump to the valve bank, connect to the roller pump, attaching the wand/hose holders and the pressure gauge. That's about it and then you'll be able to start spraying. Be sure to follow all directions and test with water before any chemicals are run through the system.11 months agoHelpful?
Q: Is this pump PTO driven or hydrualic?
a year ago1 Answer
- A: Nick, this is a roller pump that will connect to your PTO.a year agoHelpful?
Q&As
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 10 Questions
Newest questions
Q: Does the boom fold back for narrow spaces or if it bumps an object e.g. post, tree? Similar to the fimco pull behind
2 months ago1 Answer
- AI-generatedA: Yes, this sprayer features a folding boom for easier navigation in narrow spaces. It also includes a 7-nozzle breakaway boom design, which allows the boom to fold back if it happens to bump into an object like a post or tree.2 months agoHelpful?
Q: What is the spraying pressure at the nozzle?
2 months ago1 Answer
- A: The Fimco 65 Gallon 3 Point Sprayer (Model 3PT-65-6R-7) features a Hypro 6-roller pump capable of a maximum system pressure of 300 PSI. However, the sprayer is typically rated for a standard operating pressure of 150 PSI.2 months agoHelpful?
Q: Does this unit include agitation and or bypass?
2 months ago1 Answer
- A: The Fimco 65 Gal 3 Point Sprayer (Model 5303252) includes a bypass system for pressure regulation, which also provides a form of hydraulic agitation in the tank.2 months agoHelpful?
Q: What brand pressure regulator and other key components are installed? The FIMCO web-site is short on details.
9 months ago1 Answer
- A: TeeJet pressure regulator, hypro roller pump.9 months agoHelpful?
Q: Can you reach the on/off lever from the seat of the tractor?
9 months ago1 Answer
- A: All depends on the location of where your 3pt connection is whether you would be able to reach the on/off lever for the boom.9 months agoHelpful?
Q: I like to order 3 point sprayer I need to be tax exempt What I do
10 months ago1 Answer
- A: You would need to contact your local Tractor Supply for this question if you're going to be ordering from them, as we don't have anything to do with their sales.10 months agoHelpful?
Q: Is this sprayer to big for a 28hp mihindra tractor
11 months ago1 Answer
- A: Keith, this is a category I 3 Point sprayer. When fully filled, this sprayer will weight approximately 700 lbs. Consult your owner's manual for your vehicle to verify that you are within its load carrying capacity.11 months agoHelpful?
Q: Do you need to buy a coupler or is it included? Also is a 90 HP tractor too powerful for this unit?
11 months ago1 Answer
- A: This sprayer comes with a 5/8" quick coupler. No, a 90 HP tractor PTO is generally not too much power for a Hypro 6-roller pump.11 months agoHelpful?
Q: Does this come fully assembled? If not, what level of assembly is required?
11 months ago1 Answer
- A: The sprayer is mostly assembled. There are 6 steps to complete assembly, which would be to attach the boom, connect a hose from the roller pump to the valve bank, connect to the roller pump, attaching the wand/hose holders and the pressure gauge. That's about it and then you'll be able to start spraying. Be sure to follow all directions and test with water before any chemicals are run through the system.11 months agoHelpful?
Q: Is this pump PTO driven or hydrualic?
a year ago1 Answer
- A: Nick, this is a roller pump that will connect to your PTO.a year agoHelpful?
Similar Items
Items You May Like
-
-
-
-
-
-
-
-
-
-
-
-
Top Rated
Customers Also Bought
-
-
Top Rated
-
-
Top Rated
-
Subscription Eligible
-
Top Rated
-
-
-
-
-
-
Reviews
Customer Images and Videos
- setup
- in-store
- instructions
- packaging
- performance
- product availability
- purchase
- quality
1 to 4 of 16 Reviews .
1 – 4 of 16 Reviews
Most Recent
Review 1
2 out of 5 stars.
No Assembly Instructions
15 days ago
The spray came without assembly instructions. Really dumb
Response from Fimco Industries:
14 days ago
Fimco Industries
We are so sorry about that! We completely understand your frustration—trying to assemble equipment without the manual is a huge pain. While the assembly instructions are in the manual, it’s always possible a manual gets pulled out during packaging or handling or even at the retail level. We definitely want to get you up and running right away. You can download the full manual directly from the Tractor Supply website on the product page or give our customer care team a call at 800-831-0027 and we will gladly email or mail a copy right to you!
MADISON WI
Review 1
3 out of 5 stars.
Mixed review
22 days ago
I upgraded my ATV sprayer with this 3 point sprayer. Set up was pretty easy and self explanatory but the plastic nosels to metal pump didn't thread well. I filled the tank with water to do my calibration and there were plastic shavings in the tank from the factory. I also have leaks from the preasure gauge treads that were factory tested.
For calibration I filled the tank full, ran 4 mph over a 1 acre plot and had used 22 gallons. I found this to be the most effective way to calibrate. I ran 2.5 acres and had one pass left so it was about perfect.
I will say the 65 gallon tank was great and saved a bunch of time from having to mix 2-3 tanks previously. Once up and going it worked really well.
SweepstakesYes
Ohio
Review 1
4 out of 5 stars.
Product decent but TSC is not
a month ago
I recently purchased this item and I have used it several times. It works well. It was relatively easy to put together. It is much better than the smaller side by side sprayers I have used in the past. The operating manual is lacking. It has almost no details on how to operate the sprayer. Product acceptable but the order process through Tractor Supply was awful. Delivery was equally awful. I will never place another on line order with TSC.
Yes, I recommend this product.
Trinity, TX
Review 1
5 out of 5 stars.
Great sprayer!
a month ago

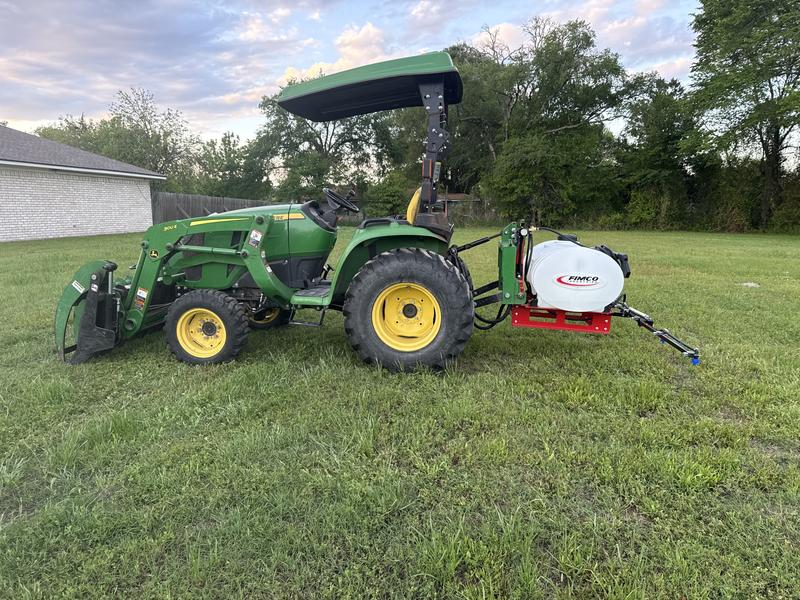

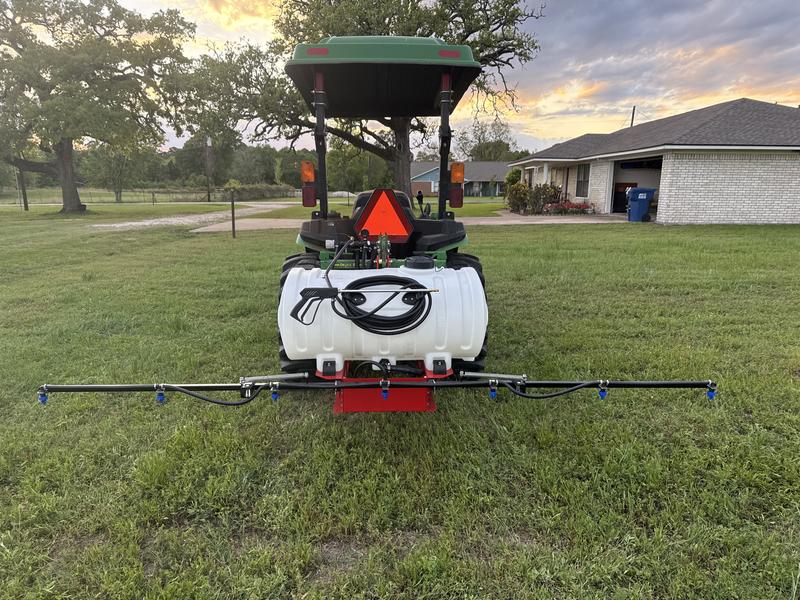

Great sprayer for compact tractors. I put it on my JD3025e and did my calibration runs at different speeds using my phone as a speedometer. Once you have the speed and RPM down it’s easy peaay. Putting it together took me about an hour. Very simple. Sprayed my 4 acres and it did it all with one fill up. But I would say 4 or 5 acres is all I could get with 65 gallons. Depends on how much you’re putting down.
SweepstakesYes
Yes, I recommend this product.
