Fimco 45 gal. 4.5 GPM Broadcast Boom UTV Sprayer
Limited Time Deal
Fimco 45 gal. 4.5 GPM Broadcast Boom UTV Sprayer
Item # 1354296
Stocked & Ready
$99999
Sale
Save(16%)
or
or
Add a protection plan
Powersport plans are not available in CA & MD.
Get everything you need
Neighbor’s Club Members earn points with purchases.
Limited Time Deal
Fimco 45 gal. 4.5 GPM Broadcast Boom UTV Sprayer
Item # 1354296
Stocked & Ready
$99999
Sale
Save(16%)
or
or
$84/mo.† suggested payments with 12 Months Financing or earn $49 in Rewards+ on this purchase.
Shopping at
Grassland (franklin) TN
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Add a protection plan
Powersport plans are not available in CA & MD.
Get everything you need
Neighbor’s Club Members earn points with purchases.
Designed to fit comfortably into standard UTV beds, the FIMCO 45-Gallon 4.5 GPM Broadcast Boom UTV Sprayer lets you handle large-scale liquid applications while keeping your tailgate open or closed. Powered by a high-output 4.5 GPM 12V High Flo diaphragm pump, this heavy-duty unit easily covers wide pastures, food plots, and large acreage. Its 3-nozzle broadcast boom utilizes specialized Hypro Boom X-Tender tips to project a massive 36-foot total spray pattern, eliminating the need for wide, rigid boom arms that can snag on brush or trees. Each nozzle features independent on/off valves and integrated drip-free check valves, ensuring precise chemical placement without messy post-spray dripping. For targeted spot applications along fence lines, ditch banks, and tree rows, the sprayer comes equipped with a Deluxe Pistol Grip Spray Wand paired with 25 feet of chemical-resistant hose, delivering up to 40 feet of horizontal spray reach. Tank filling and chemical dosing are exceptionally user-friendly thanks to the built-in garden hose port; which anchors your hose for hands-free, single-person filling; and the multi-lid cap with an integrated 32 oz. measuring cup. Crafted from UV-stabilized, blow-molded polymer on a compact frame, it's the ultimate, space-saving solution for weed control, fertilizing, and pest management.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on sprayers? Check out our guide on agricultural and lawn sprayers in the product documents section.

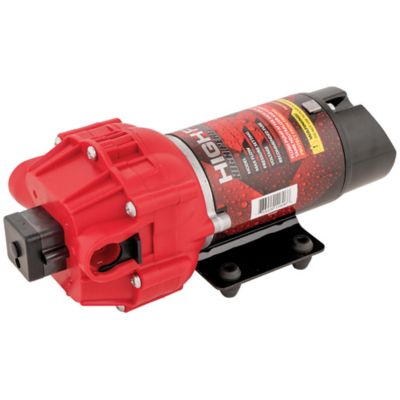

- 4.5 GPM - 60 PSI automatic demand diaphragm pump
- When combined with 4.5 GPM pump, spray wand output is enhanced and delivers spray pattern up to 40' horizontal and 28' vertical
- Broadcast sprayer includes chemical-resistant hose that provides up to 40' of spraying diameter
- Our exclusive nozzle bodies and spray tips include on/off valves and drip free nozzle technology
- Agriculture sprayer has 3-nozzle spray pattern that delivers 36' of total coverage
- Easy grip boom design allows for quick install/removal of spray boom

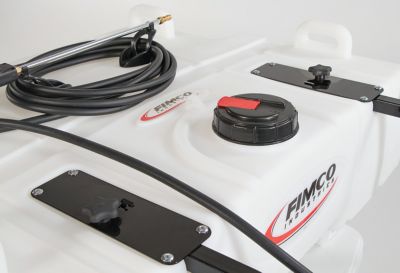

- 32 oz measuring cup attached to tank lid
- Fuse protection on both our 8' lead wire and pump
- UTV sprayer comes with high-performance 12 volt pumps
- Adjustable spray tip
- Hose measures 25' of 3/8"
- Hose secured by FIMCO exclusive spray wand/hose brackets
- Each end nozzle sprays 15' and center nozzle sprays 6'; nozzles can be used independently
- Boom can be used with UTV tailgate closed or open
- Garden hose port secures hose for safe and easy filling with one person
- Holds up to 45 gallons
| Brand | Fimco |
|---|---|
| Country of Origin | Made in USA |
| Boom Maximum Spray Width | 36 ft |
| Boom Nozzle Count | 3 |
| Boom Style | Fixed Boom |
| Chemical Compatibility | Herbicide, Grass Killer, Pesticide, Most Liquids, Weed Killer, Repellents, None, Fertilizer, Repellent, Insecticide, Fungicide |

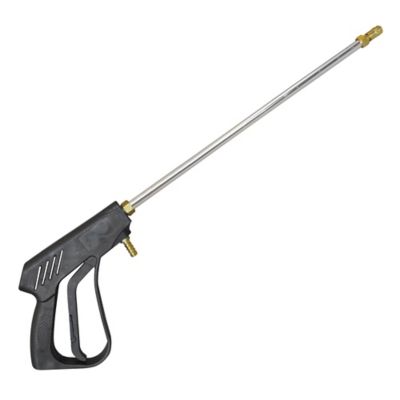

| Features | 3 Nozzle Broadcast Boom, 45 gal. Tank, Deluxe Pistol Grip Spray Wand, Adjustable Boom Height, Multi-Lid, 4.5 GPM Pump |
| Hose Diameter | 3/8 in. |
| Hose Length | 25 ft. |
| Maximum Flow Rate | 4.5 GPM |
| Maximum Operating Pressure | 60 PSI |
| Mounting Type | Straps |
| Power Type | 12 Volt |
| Product Height | 18 in. |
| Product Length | 36 in. |
| Product Weight | 66 lb. |
| Product Width | 30 in. |
| Pump Type | Diaphragm |
| Boom Width | 3.5 ft |
| Tank Capacity | 45 gal. |
| Spray Method | Boom Spraying (Broadcast), Spot Spraying |
| Tank Material | Polyethylene |
| Warranty | 1 Year Sprayer; 2 Year Pump |
| Manufacturer Part Number | 5302944 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 18 Questions
Newest questions
Q: does this model fit in the back of a 2017 yamaha wolverine?
2 months ago1 Answer
- A: Thank you for reaching out! While we do not maintain a comprehensive database of specific UTV bed measurements, the footprint of this 45-gallon sprayer is 36" wide (side to side) by 30" long (front to back). To ensure this unit fits your 2017 Yamaha Wolverine, please verify the following: Bed Dimensions: Confirm your cargo bed provides a clear, flat floor space of at least 36" x 30". Please also check for any wheel well intrusions that might reduce the usable width. Weight Capacity: When filled to its 45-gallon capacity, the unit will weigh approximately 450 lbs. Please consult your Yamaha owner's manual to ensure your cargo bed weight capacity can accommodate this load. Securing the Unit: For safe operation, please ensure your vehicle has appropriate anchor points to securely strap the sprayer to the bed. If you have any further questions or need additional specifications, please reach out to our customer service team directly.2 months agoHelpful?
Q: Is this sprayer safe for surfactants?
4 months ago1 Answer
- A: Surfactants are not recommended for the pump, as it may cause issues if maintenance isn't followed after each spraying application. There is a model that is exactly like this one, that has a Pro Series pump on it and is designed to handle chemicals with surfactants and petroleum distillates, as well as harsher chemicals.4 months agoHelpful?
Q: Does this sprayer have a drain plug?
a year ago1 Answer
- A: yes, there is a drain plug on the inlet assembly near where the assembly connects to the tank.a year agoHelpful?
Q: How can the pump be primed?
a year ago1 Answer
- A: The pump is self-priming. If having an issue with it priming, please contact our customer service team at 800-831-0027 to troubleshoot the issue.a year agoHelpful?
Q: Can this be used in a john deere gator with full dump bed
a year ago1 Answer
- A: We're not experts on ATVs and UTVs and their rack systems or bed dimensions, about the best I can offer is the dimensions of the sprayer tank that would be sitting in the bed. Side to side, the tank measures approximately 36". Front to back, the tank measure approximately 30". Height is approximately 18¾". You can find other dimensions for this sprayer in the manual as well if needed.a year agoHelpful?
Q: Can you change spray nozzle for a smaller spray with?
2 years ago1 Answer
- A: That sprayer has 3 broadcast nozzles. Each nozzle has a shut off knob on it, so you can spray with one, two or all three nozzles. This would cut down your spray swath. Outside nozzles have an approximate spray coverage of 12' each, the center nozzle has an 80" spray swath.2 years agoHelpful?
Q: can I use this on a big atv or a tag along trailer
2 years ago1 Answer
- A: Jami, you will need to check your ATV for it's load capacity and whether this size sprayer will fit on it. This is typically used in a UTV do to it's size.2 years agoHelpful?
Q: Can you turn off one side nozzle and the middle nozzle and use only the remaining side nozzle? I need to spray along my pasture fences with coverage 1 or 2 feet inside the fence and 4 to 6 feet on the outside of the fence. Will this sprayer do both?
4 years ago1 Answer
- A: Hey Rowdysgoboy, Please check your owners manual for answers to this operational question. You could also use a backpack sprayer for small or very specific areas.4 years agoHelpful?
Q: Does the tank have an agitator?
4 years ago1 Answer
- A: It is not listed as having one.4 years agoHelpful?
Q: For the 45 gallon Fimco boomless sprayer, is a handgun included? Looking at the picture of the manifold controller, I don't see a hookup for a handgun.
5 years ago1 Answer
- A: Yes it is.5 years agoHelpful?
1 - 10 of 18 Questions
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 18 Questions
Newest questions
Q: does this model fit in the back of a 2017 yamaha wolverine?
2 months ago1 Answer
- A: Thank you for reaching out! While we do not maintain a comprehensive database of specific UTV bed measurements, the footprint of this 45-gallon sprayer is 36" wide (side to side) by 30" long (front to back). To ensure this unit fits your 2017 Yamaha Wolverine, please verify the following: Bed Dimensions: Confirm your cargo bed provides a clear, flat floor space of at least 36" x 30". Please also check for any wheel well intrusions that might reduce the usable width. Weight Capacity: When filled to its 45-gallon capacity, the unit will weigh approximately 450 lbs. Please consult your Yamaha owner's manual to ensure your cargo bed weight capacity can accommodate this load. Securing the Unit: For safe operation, please ensure your vehicle has appropriate anchor points to securely strap the sprayer to the bed. If you have any further questions or need additional specifications, please reach out to our customer service team directly.2 months agoHelpful?
Q: Is this sprayer safe for surfactants?
4 months ago1 Answer
- A: Surfactants are not recommended for the pump, as it may cause issues if maintenance isn't followed after each spraying application. There is a model that is exactly like this one, that has a Pro Series pump on it and is designed to handle chemicals with surfactants and petroleum distillates, as well as harsher chemicals.4 months agoHelpful?
Q: Does this sprayer have a drain plug?
a year ago1 Answer
- A: yes, there is a drain plug on the inlet assembly near where the assembly connects to the tank.a year agoHelpful?
Q: How can the pump be primed?
a year ago1 Answer
- A: The pump is self-priming. If having an issue with it priming, please contact our customer service team at 800-831-0027 to troubleshoot the issue.a year agoHelpful?
Q: Can this be used in a john deere gator with full dump bed
a year ago1 Answer
- A: We're not experts on ATVs and UTVs and their rack systems or bed dimensions, about the best I can offer is the dimensions of the sprayer tank that would be sitting in the bed. Side to side, the tank measures approximately 36". Front to back, the tank measure approximately 30". Height is approximately 18¾". You can find other dimensions for this sprayer in the manual as well if needed.a year agoHelpful?
Q: Can you change spray nozzle for a smaller spray with?
2 years ago1 Answer
- A: That sprayer has 3 broadcast nozzles. Each nozzle has a shut off knob on it, so you can spray with one, two or all three nozzles. This would cut down your spray swath. Outside nozzles have an approximate spray coverage of 12' each, the center nozzle has an 80" spray swath.2 years agoHelpful?
Q: can I use this on a big atv or a tag along trailer
2 years ago1 Answer
- A: Jami, you will need to check your ATV for it's load capacity and whether this size sprayer will fit on it. This is typically used in a UTV do to it's size.2 years agoHelpful?
Q: Can you turn off one side nozzle and the middle nozzle and use only the remaining side nozzle? I need to spray along my pasture fences with coverage 1 or 2 feet inside the fence and 4 to 6 feet on the outside of the fence. Will this sprayer do both?
4 years ago1 Answer
- A: Hey Rowdysgoboy, Please check your owners manual for answers to this operational question. You could also use a backpack sprayer for small or very specific areas.4 years agoHelpful?
Q: Does the tank have an agitator?
4 years ago1 Answer
- A: It is not listed as having one.4 years agoHelpful?
Q: For the 45 gallon Fimco boomless sprayer, is a handgun included? Looking at the picture of the manifold controller, I don't see a hookup for a handgun.
5 years ago1 Answer
- A: Yes it is.5 years agoHelpful?
1 - 10 of 18 Questions
Similar Items
-
-
-
-
-
-
-
Top Rated
-
-
-
-
-
Items You May Like
-
-
-
-
-
Top Rated
-
-
-
Top Rated
-
-
-
-
Reviews
- spraying
- purchase
- satisfaction
- setup
- quality
- customer service
- price
- warranty
1 to 4 of 158 Reviews .
1 – 4 of 158 Reviews
Most Recent
Columbia, SC
Review 1
3 out of 5 stars.
Faulty lid out of the box.
11 months ago
I bought this sprayer several days ago and used it for the first time today. Overall, it seemed to work fairly well. However, the lid will not stay on. I turn it to tighten it and it starts to catch, then pops back off. I had to use a bungee cord to keep the lid on (which kind of worked). It's disappointing to buy a brand new item and have quality issues like this.
No, I do not recommend this product.
Response from Fimco Industries:
11 months ago
Fimco Industries
Hunter, thank you for your purchase of the 45-gallon UTV sprayer from Tractor Supply. Sorry you're having the issue with the lid. Please contact our customer service team at 800-831-0027 and they'll be happy to assist you.
Review 1
3 out of 5 stars.
Somewhat happy
11 months ago

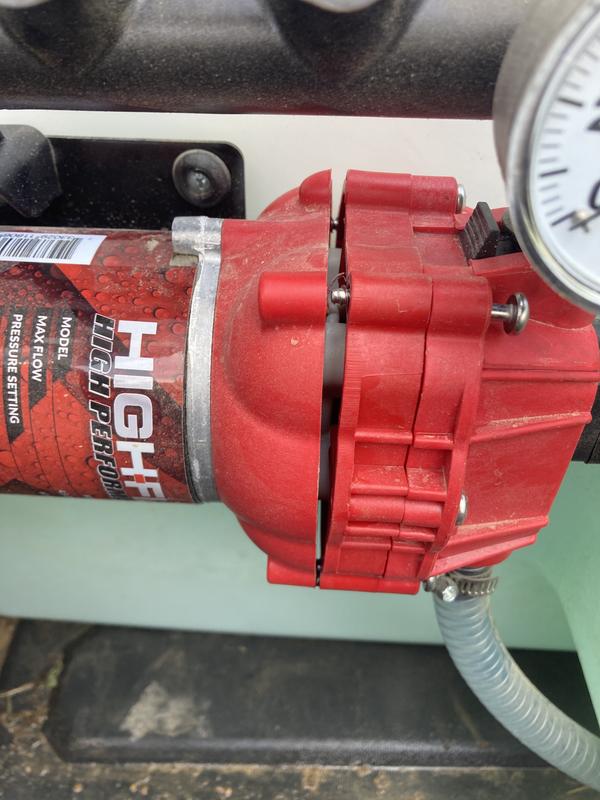

The sprayer is not bad overall except I do have one pet peeve with it. The plastic that they use in the valve body for circulating the water and turning on the boom is made out of plastic, which is OK in itself. But unfortunately, the type plastic they use is relatively cheap and doesnt seem to last long. I went through several valve assemblies, basically because the valve gets tight and then the handle strips its internal locking feature. Once this happens the valve is no longer operable. Couple other sprayers that I have are from a competitor and are 20+ years old and I’ve never had this happen once so I know there’s better materials that could improve this sprayer. I will note that customer service has been great and they’ve replaced several valve bodies for me under warranty. It’s just a pain that every year or so I have to go through this effort.
Response from Fimco Industries:
11 months ago
Fimco Industries
Very sorry you're having that issue with the valves. Glad our customer service team is taking care of you and helping to keep you spraying.
Alabama
Reviews 2
5 out of 5 stars.
UTV sprayer
a year ago
Sprayer easy to put together. And sprays 36-40 foot as advertised. Sprayed a 24 acre field with 2-4-D in a couple of hrs on my UTV .
SweepstakesYes
Yes, I recommend this product.
Response from Fimco Industries:
a year ago
Fimco Industries
Brendan, thank you for your purchase of the 45-gallon UTV sprayer from Tractor Supply. Glad you found it easy to assemble and that it's working to expectations for spraying.
Ohio
Review 1
5 out of 5 stars.
Great Sprayer
a year ago
Great product. Easy to setup and use. Made in the USA!
SweepstakesYes
Response from Fimco Industries:
a year ago
Fimco Industries
Thank you for your purchase of the 45-gallon UTV sprayer from Tractor Supply. Glad you're happy with your new sprayer and that it's working great for you.
