WorkHorse Sprayers 15 gal. 2-Nozzle 12 V Boomless Trailer Sprayer
$309.99
WorkHorse Sprayers 15 gal. 2-Nozzle 12 V Boomless Trailer Sprayer
WorkHorse Sprayers 15 gal. 2-Nozzle 12 V Boomless Trailer Sprayer
Item # 163710599
$309.99
or
or
Neighbor’s Club Members earn points with purchases.
WorkHorse Sprayers 15 gal. 2-Nozzle 12 V Boomless Trailer Sprayer
Item # 163710599
$309.99
or
or
$52/mo.† suggested payments with 6 Months Financing or earn $15 in Rewards+ on this purchase.
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.
The WorkHorse Sprayers 15 gal. 2-Nozzle 12V Boomless Trailer Sprayer is a powerful and versatile tool designed for efficient and precise spraying applications. This compact trailer sprayer is perfect for use in pastures, row crops and other large areas. Effective in covering larger premises in off-road terrains, this helpful accessory is recommended for commercial use. The tow-behind trailer sprayer has a durable polyethylene tank that reduces the scope of frequent replacements and repairs.
Looking for more information on sprayers? Check out our guide on agricultural and lawn sprayers in the product documents section.
- Boomless sprayer has a 15 gal. capacity for long-lasting use
- Provides 100 in. of spray coverage for convenience
- Backed by a 1-year limited warranty for assurance
- Trailer sprayer is made in the USA
- Perfect for pastures, row crops and other large areas
- Durable polyethylene tank reduces the scope of frequent replacements and repairs
- Equipped with a 1.0 GPM, 12V pump for powerful use
- Delivers 0-60 PSI of pressure for maximum usage
- Standard 15 ft. EPDM hose handgun with a maximum horizontal spray of 25 ft. and maximum vertical spray of 12 ft.
- 3/8 in. PVC reinforced trailer sprayer hose for durability
- Heavy-duty manifold design and heavy-duty frame construction for lasting strength
- Comes with an 8 ft. universal wiring harness for convenience
- Chemical-resistant and RoundUp-ready for easy use
| Brand | WorkHorse Sprayers |
|---|---|
| Country of Origin | Made in USA |
| Boom Maximum Spray Width | No Boom |
| Boom Nozzle Count | 2 |
| Boom Style | No Boom |
| Chemical Compatibility | Fertilizer |
| Features | Broadcast Nozzles |
| Hose Diameter | 3/8 in. |
| Hose Length | 15 ft. |
| Maximum Flow Rate | 1 GPM |
| Maximum Operating Pressure | 45 PSI |
| Power Type | 12 Volt |
| Product Height | 16.5 in. |
| Product Length | 45.5 in. |
| Product Weight | 42 lb. |
| Product Width | 18.125 in. |
| Pump Type | Diaphragm |
| Boom Width | No Boom |
| Tank Capacity | 15 gal. |
| Spray Method | Spot Spraying, Boom Spraying (Broadcast) |
| Tank Material | Polyethylene |
| Warranty | 1 Year |
| Manufacturer Part Number | G23-LG15ETS |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 43 Questions
Newest questions
Q: I just need trailer I have 15 gallon sprayer
2 months ago1 Answer
- A: you can contact our customer service team to determine if the sprayer you have would fit on this trailer. The tank should have inserts in the bottom to accommodate attaching the tank. Also, there isn't a kit, so the trailer would have to be placed for each of the parts you would need. You can contact our customer service team at 888-433-6631 and they'll be happy to assist.2 months agoHelpful?
Q: does the hand sprayer have a width adjustment
9 months ago1 Answer
- A: the spray wand can be adjusted from a stream to a cone mist.9 months agoHelpful?
Q: This is called a boomless sprayer does it spray "downward" from the back of the tank or is it only hand held sprayer use?
9 months ago1 Answer

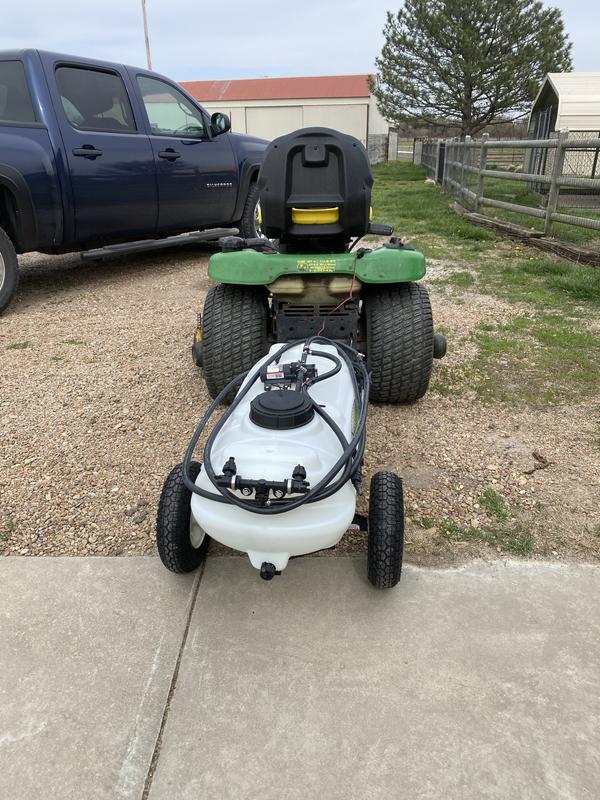

- A: It's a boomless sprayer, meaning no real boom. The nozzles are located on the boomless manifold that will spray out to the sides and overlap in the center to give full coverage. You also have the capability to spray either to the right or to the left by shutting off one side.9 months agoHelpful?
Q: Can it plug into a cigarette lighter
11 months ago1 Answer
- A: Angel, you would need to purchase the optional Lead Wire w/Cigarette Lighter Adapter #5275053 to be able to do that.11 months agoHelpful?
Q: Where does the clip go on the manifold
a year ago1 Answer
- A: if you're referring to the clip that goes on the boom manifold assembly, then before you install it to the tank, you slide it in from the back side, then install the boom manifold on to the tank, connect your hose to the manifold and push the clip in to lock the hose in place.a year agoHelpful?
Q: Does this sprayer come with trailer pictured?
a year ago1 Answer
- A: Yes, this sprayer is a trailer sprayer and comes with the trailer you see in their picture.a year agoHelpful?
Q: Asked about assembly & was told nothing to it.Why mislead about assembly. Asked & was told simple. Over 50 pieces! You LIED
a year ago1 Answer
- A: Thank you for your purchase of the Workhorse 15-gallon trailer sprayer. Sorry you had issues with the assembly and not sure who told you it was simple that you're referring to. Fimco acquired the Workhorse sprayer line last spring and we know the manuals leave much to be desired for assembly and do have it planned to revamp those manuals at some point and time to give some better assembly instructions. Our customer service team did take this unit and figured out the steps for assembly, which we now need to get into the manuals to help customers such as yourself in the future, just not sure when we're going to get them in the manuals. Again, sorry about being misled, but we do hope that you will like the way your new sprayer works for you. If you have any questions, you can always contact our customer service team at 888-433-6631 and they'll be more than happy to assist you.a year agoHelpful?
Q: Exactly what assembly is required?
a year ago1 Answer
- A: For the most part, you would need to assemble the frame, then mount the tank to the frame, attach the 2 nozzle boom and drain plug. Beyond that, just hooking it up to your 12V battery and you should be set to go.a year agoHelpful?
Q: rate of gift card
a year ago1 Answer
- A: Not sure what you mean by rate of gift card, so unable to answer. if you're referring to rate of spray, there is a tip chart in the manual. Spray rate all depends on MPH and pressure being sprayed.a year agoHelpful?
Q: Can an exit tank be hooked up to this to add fertilizer, or insecticides while keeping the 15 gallon tank for water use only?
2 years ago1 Answer
- A: Currently we don't have anything like that. you'd probably need to research online on how to hook up something like that, as I know if can be done, but since we don't have anything like that, it's hard to say how you'd go about that.2 years agoHelpful?
1 - 10 of 43 Questions
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 43 Questions
Newest questions
Q: I just need trailer I have 15 gallon sprayer
2 months ago1 Answer
- A: you can contact our customer service team to determine if the sprayer you have would fit on this trailer. The tank should have inserts in the bottom to accommodate attaching the tank. Also, there isn't a kit, so the trailer would have to be placed for each of the parts you would need. You can contact our customer service team at 888-433-6631 and they'll be happy to assist.2 months agoHelpful?
Q: does the hand sprayer have a width adjustment
9 months ago1 Answer
- A: the spray wand can be adjusted from a stream to a cone mist.9 months agoHelpful?
Q: This is called a boomless sprayer does it spray "downward" from the back of the tank or is it only hand held sprayer use?
9 months ago1 Answer
- A: It's a boomless sprayer, meaning no real boom. The nozzles are located on the boomless manifold that will spray out to the sides and overlap in the center to give full coverage. You also have the capability to spray either to the right or to the left by shutting off one side.9 months agoHelpful?
Q: Can it plug into a cigarette lighter
11 months ago1 Answer
- A: Angel, you would need to purchase the optional Lead Wire w/Cigarette Lighter Adapter #5275053 to be able to do that.11 months agoHelpful?
Q: Where does the clip go on the manifold
a year ago1 Answer
- A: if you're referring to the clip that goes on the boom manifold assembly, then before you install it to the tank, you slide it in from the back side, then install the boom manifold on to the tank, connect your hose to the manifold and push the clip in to lock the hose in place.a year agoHelpful?
Q: Does this sprayer come with trailer pictured?
a year ago1 Answer
- A: Yes, this sprayer is a trailer sprayer and comes with the trailer you see in their picture.a year agoHelpful?
Q: Asked about assembly & was told nothing to it.Why mislead about assembly. Asked & was told simple. Over 50 pieces! You LIED
a year ago1 Answer
- A: Thank you for your purchase of the Workhorse 15-gallon trailer sprayer. Sorry you had issues with the assembly and not sure who told you it was simple that you're referring to. Fimco acquired the Workhorse sprayer line last spring and we know the manuals leave much to be desired for assembly and do have it planned to revamp those manuals at some point and time to give some better assembly instructions. Our customer service team did take this unit and figured out the steps for assembly, which we now need to get into the manuals to help customers such as yourself in the future, just not sure when we're going to get them in the manuals. Again, sorry about being misled, but we do hope that you will like the way your new sprayer works for you. If you have any questions, you can always contact our customer service team at 888-433-6631 and they'll be more than happy to assist you.a year agoHelpful?
Q: Exactly what assembly is required?
a year ago1 Answer
- A: For the most part, you would need to assemble the frame, then mount the tank to the frame, attach the 2 nozzle boom and drain plug. Beyond that, just hooking it up to your 12V battery and you should be set to go.a year agoHelpful?
Q: rate of gift card
a year ago1 Answer
- A: Not sure what you mean by rate of gift card, so unable to answer. if you're referring to rate of spray, there is a tip chart in the manual. Spray rate all depends on MPH and pressure being sprayed.a year agoHelpful?
Q: Can an exit tank be hooked up to this to add fertilizer, or insecticides while keeping the 15 gallon tank for water use only?
2 years ago1 Answer
- A: Currently we don't have anything like that. you'd probably need to research online on how to hook up something like that, as I know if can be done, but since we don't have anything like that, it's hard to say how you'd go about that.2 years agoHelpful?
1 - 10 of 43 Questions
Similar Items
-
-
-
-
-
-
-
-
-
-
-
Top Rated
-
Items You May Like
-
-
-
-
-
-
-
-
Top Rated
-
-
-
-
Customers Also Bought
-
-
-
-
-
Top Rated
-
-
-
-
Top Rated
-
-
-
Reviews
- spraying
- price
- purchase
- width
- small
- setup
- ease of use
- pattern
1 to 4 of 197 Reviews .
1 – 4 of 197 Reviews
Most Recent
Review 1
4 out of 5 stars.
Instructions need re-written.
9 months ago
The parts are well-made but the instructions should have been written by someone who actually assembled the sprayer. 1) The wheel hub bolts are smaller than the wheel hubs. There are steel sleeve bushings to correct this, but this is not shown and they don't appear in the parts list. You have to figure it out yourself. 2) You need to adapt the hitch to fit your situation; they might have pointed this out. They don't supply a hitch pin. 3) The boomless sprayer instructions lack vital details which may lead you to damage the nozzles if you don't figure it out on you own. You must seat a guide flange on the nozzle into a slot in the bayonet cap before locking it in place with the washer. This fixes the spray angle. The bayonet caps must be pressed in firmly and rotated clockwise to lock. Be sure the white nozzle is on the left end of the spray bar as you face it. Also the ends of the spray bar rotate and were 180 degress off the illustration, which could be confusing and lead to the quick clip reversed if not noted. 4) My unit had the tee fitting on the loose spray bar hose and the wand hose was fastened directly to the pump. Probably a newbie assembled it.
Response from Fimco Industries:
9 months ago
Fimco Industries
Larry, thank you for your purchase of the Workhorse 15-gallon trailer sprayer from Tractor Supply. We acquired the Workhorse sprayer line last year and have heard numerous times how bad those manuals are. As for the sleeve bushings, that's probably due to the wheels having to be temporarily being substituted until we receive new stock in. Our engineers have finally received all the necessary files they needed to compose the sprayers into a format that we are able to update the manuals. For the most part over 90% of the manuals have been updated, including this one, but haven't received final approval from the engineers. If you would like a copy of the updated manual, even though you've already assembled your sprayer, there's not only actual assembly instructions, but also better parts breakdowns and other pertinent information, please contact our customer service team at 888-433-6631 and they'll be happy to send you one. For the most part, not much of anything will change in the updated manuals other than possibly a part number change.
Other than the instructions, we hope you'll be happy with the new sprayer.
Other than the instructions, we hope you'll be happy with the new sprayer.
AR
Review 1
2 out of 5 stars.
Not all parts came with the sprayer
a year ago
I liked the sprayer , BUT it was shipped with not all the parts.
SweepstakesYes
No, I do not recommend this product.
Response from Fimco Industries:
a year ago
Fimco Industries
Darren, thank you for your purchase of the Workhorse 15-gallon trailer sprayer. Sorry that the sprayer was missing some parts. Please contact our customer service team at 888-433-6631 and they'll be happy to assist you with the missing parts needed so that you can start enjoying your new sprayer.
Review 1
1 out of 5 stars.
Have fun putting it together!
a year ago
Doesn't tell you not assembled when ordering and the fact you need 6 hands and an engineering degree to put together!!!!!
Response from Fimco Industries:
a year ago
Fimco Industries
Thank you for your purchase of the Workhorse 15-gallon trailer sprayer from Tractor Supply. Fimco acquired the Workhorse sprayer line last year and have heard from several customers about the manuals that originally came with the sprayers. We have just now started working on updating the Workhorse sprayer manuals to be more uniform with our line of sprayers and booms. This particular sprayer has had the manual updated to reflect better assembly instructions, as well as other pertinent information and is currently awaiting the final approval from our engineering group. We are in the hopes that most of the Workhorse sprayers and booms, if not all, will be updated before the end of the year. We do hope that you'll be happy with your new sprayer once you start using it.
Review 1
4 out of 5 stars.
Boomless trailer sprayer
a year ago
Boomless sprayer and wand sprayer both work as advertised. The only problem I had was keeping the hose from the wand wrapped on the tank while spraying with boomless sprayer.
SweepstakesYes
Yes, I recommend this product.
Response from Fimco Industries:
a year ago
Fimco Industries
Charles, thank you for your purchase of the Workhorse 15-gallon trailer sprayer from Tractor Supply. Glad to hear it's working to your satisfaction and hope that it handles all of your spraying needs.
