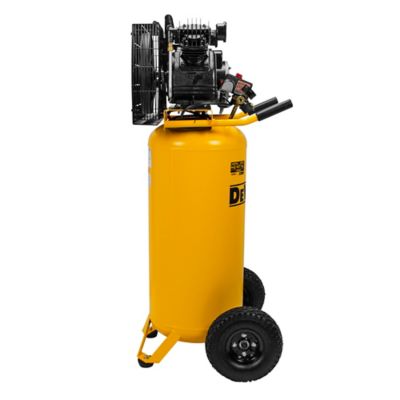

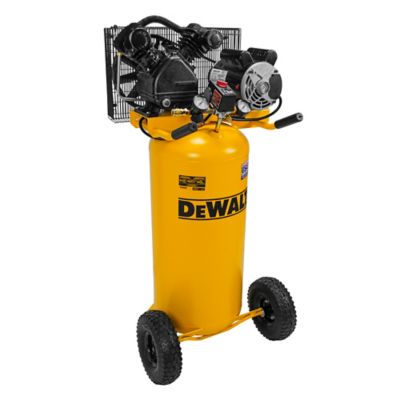

DEWALT 1.6 RHP 20 gal. Vertical Portable Air Compressor
DEWALT 1.6 RHP 20 gal. Vertical Portable Air Compressor
Item # 119633899
$849.99
or
or
Buy Air Compressor Get 20% Off Air Compressor accessorie
Neighbor’s Club Members earn points with purchases.
DEWALT 1.6 RHP 20 gal. Vertical Portable Air Compressor
Item # 119633899
Buy Air Compressor Get 20% Off Air Compressor accessorie
$849.99
or
or
$71/mo.† suggested payments with 12 Months Financing or earn $42 in Rewards+ on this purchase.
This item is available online only
Delivery to
For delivery, this item requires a Big & Bulky handling fee.
Neighbor’s Club Members earn points with purchases.
The DEWALT 1.6 RHP 20 Gallon Vertical Portable Air Compressor is jobsite tough and built for the professional. The portable air compressor features automotive style ball bearings, durable stainless-steel reed valves, oil level sight glass, easily accessible oil fill and a cast iron balanced flywheel for easy maintenance, durability and convenience. This air compressor also offers a Twin-V cast iron pump with one piece cast iron crank case and thermally stable cast iron cylinder body. Warranty coverage included for purchase assurance.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on air compressors? Check out our air compressor FAQs in the product documents section.

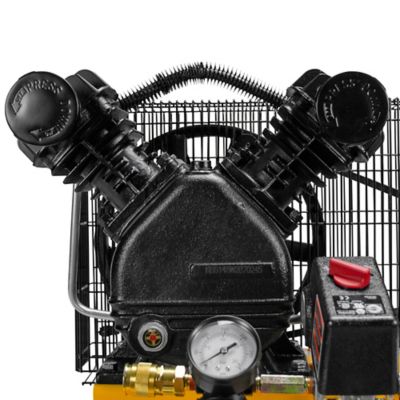

- Cast iron, V-twin cylinder and oil lubricated pump

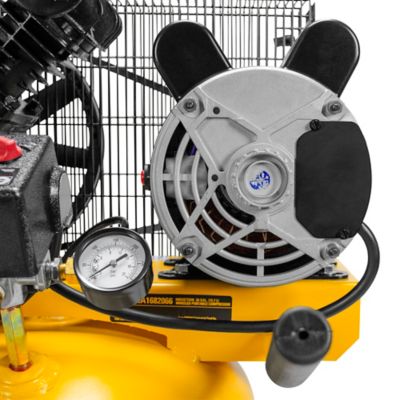

- Heavy duty induction motor for maximum performance and efficiency
- 155 PSI maximum pressure for optimum tool performance
- 20 gallon vertical portable tank equipped with pneumatic tires for maximum portability
- Dual voltage motor is wired for standard 120 volt outlet, and may also be converted for 240 volt application
- Equipped with quick-set regulator, tank and tool pressure gauges, quick connect air outlet and on/off switch
- 2 year limited pump; 1 year all other components
- Automotive style ball bearings and durable stainless-steel reel valves
- Cast iron balanced flywheel for easy maintenance
- Air compressor with oil level sight glass and easily accessible oil fill
| Brand | DEWALT |
|---|---|
| Country of Origin | Made in USA |
| Airflow Volume | 6.2 CFM |
| Air Outlet Size | 3/8 in. |
| Compressor Horsepower | 1.6 HP |
| Lubrication Type | Oil |
| Compressor Maximum PSI | 155 PSI |
| Compressor Operation | Automatic start/stop |
| Compressor Tank Capacity | 20 gal |
| Compressor Voltage | 120V/240V |
| Decibel Rating | 78 dBA |
| Drain System | Manual |
| Drive Type | Belt |
| Features | Regulator Included, Handles Included |
| Fuel Tank Capacity | 20 gal. |
| Phase | Single |
| Number Of Power Speeds | Single |
| Number Of Wheels | 2 |
| Power Type | Electric |
| Primary Color | Yellow |
| Product Height | 49.5 in. |
| Product Length | 25 in. |
| Product Weight | 159 lb. |
| Product Width | 25 in. |
| Pump Material | Cast iron |
| Pump Oil Capacity | 20 gal. |
| Stage Type | Single-Stage |
| Tank Fill Time | 5.77 minutes |
| Tank Style | Vertical |
| Warranty | 2 Year Pump and 1 Year All Other Parts |
| Manufacturer Part Number | DXCMLA1682066 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 9 of 9 Questions
Newest questions
Q: What is the width at the wheels? Trying to figure out if it will fit in a slim spot wheels and all.
4 years ago1 Answer
- A: The width of the unit to the outside of the wheels is 24.25”.4 years agoHelpful?
Q: If it kicks out at 155 psi --- At what pressure does it come back on? or is that adjustable?
4 years ago1 Answer
- A: The pressure cuts back in at 125 PSI.4 years agoHelpful?
Q: Can you use impact wrench with this air compressor
Anonymous5 years ago1 Answer
- A: This model delivers 6.2 cfm @ 40 psi and 5.3 cfm @ 90 PSI. If your impact wrench requires less cfm than what this product delivers, the air compressor should have no problem operating the tool.5 years agoHelpful?
Q: Do the pneumatic tires have tubes, because they can be a bear if they go flat and do not have tubes?
5 years ago1 Answer
- A: Yes -- the pneumatic wheels used on this DEWALT 20 gallon air compressor have inner tubes.5 years agoHelpful?
Q: Where is it made?
5 years ago1 Answer
- A: This DeWalt 20 gallon compressor is made in Springfield, Minnesota.5 years agoHelpful?
Q: I assume that the cfm is rated at 120 volts. If the motor is rewired to 240 what does the cfm increase to @90 psi ?
7 years ago1 Answer
- A: The SCFM air delivery performance actually doesn't change. The motor draws half the current when at 240 volt.7 years agoHelpful?
Q: What is the connection size for the gauges and regulator into the tank manifold pressure switch ? 1/2" NPT, 1/4" NTP ? The reason for the question is that I want to connect a pressure transmitter for the tank pressure.
8 years ago1 Answer
- A: There are four 1/4” NPT ports on the pressure switch. The regulator has two 1/4” NPT ports and one 1/8” NPT gauge port.8 years agoHelpful?
Q: What does RHP mean when relating to the compressor / electric motor?
8 years ago1 Answer
- A: It is the running horse power. Basically, it is the rate at which mechanical energy is expended from the motor.8 years agoHelpful?
Q: are all of your compressors that you guys sell loud ? not one of your compressors that you sell in store have a decibel rating ... why is this
8 years ago1 Answer
- A: The Decibel rating for the DXCMLA1682066 is 75 (dB).8 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 9 of 9 Questions
Newest questions
Q: What is the width at the wheels? Trying to figure out if it will fit in a slim spot wheels and all.
4 years ago1 Answer
- A: The width of the unit to the outside of the wheels is 24.25”.4 years agoHelpful?
Q: If it kicks out at 155 psi --- At what pressure does it come back on? or is that adjustable?
4 years ago1 Answer
- A: The pressure cuts back in at 125 PSI.4 years agoHelpful?
Q: Can you use impact wrench with this air compressor
Anonymous5 years ago1 Answer
- A: This model delivers 6.2 cfm @ 40 psi and 5.3 cfm @ 90 PSI. If your impact wrench requires less cfm than what this product delivers, the air compressor should have no problem operating the tool.5 years agoHelpful?
Q: Do the pneumatic tires have tubes, because they can be a bear if they go flat and do not have tubes?
5 years ago1 Answer
- A: Yes -- the pneumatic wheels used on this DEWALT 20 gallon air compressor have inner tubes.5 years agoHelpful?
Q: Where is it made?
5 years ago1 Answer
- A: This DeWalt 20 gallon compressor is made in Springfield, Minnesota.5 years agoHelpful?
Q: I assume that the cfm is rated at 120 volts. If the motor is rewired to 240 what does the cfm increase to @90 psi ?
7 years ago1 Answer
- A: The SCFM air delivery performance actually doesn't change. The motor draws half the current when at 240 volt.7 years agoHelpful?
Q: What is the connection size for the gauges and regulator into the tank manifold pressure switch ? 1/2" NPT, 1/4" NTP ? The reason for the question is that I want to connect a pressure transmitter for the tank pressure.
8 years ago1 Answer
- A: There are four 1/4” NPT ports on the pressure switch. The regulator has two 1/4” NPT ports and one 1/8” NPT gauge port.8 years agoHelpful?
Q: What does RHP mean when relating to the compressor / electric motor?
8 years ago1 Answer
- A: It is the running horse power. Basically, it is the rate at which mechanical energy is expended from the motor.8 years agoHelpful?
Q: are all of your compressors that you guys sell loud ? not one of your compressors that you sell in store have a decibel rating ... why is this
8 years ago1 Answer
- A: The Decibel rating for the DXCMLA1682066 is 75 (dB).8 years agoHelpful?
Similar Items
-
-
-
-
-
-
-
-
Top Rated
-
-
-
-
Items You May Like
-
-
-
-
-
-
-
Top Rated
-
-
-
-
-
Customers Also Bought
-
-
-
-
-
-
-
-
Top Rated
-
-
-
-
Reviews
- accessibility
- design
- noise level
- product features
- satisfaction
- small
- weight
1 to 3 of 4 Reviews .
1 – 3 of 4 Reviews
Most Recent
Samuelson
northeast Ga
Review 1
Age45 to 54
5 out of 5 stars.
Great features
5 years ago
Love my new air compressor. More than enough to run my tools. It was really helpful replacing the axle on my trailer. Very satisfied. I was unable to register the exact product but one similar.
Yes, I recommend this product.
Originally posted on dewalt.com
SW Florida USA
Reviews 5
5 out of 5 stars.
Nice compressor
5 years ago
Nice compressor. Only slight problem is that it is very top heavy. Don't let it tilt too far over while moving on the wheels, or it can become very heavy, very fast. I am an old man 71.
Yes, I recommend this product.
Newark, DE
Review 1
4 out of 5 stars.
Quieter than I expected. Drain valve not so good.
5 years ago
This compressor is quieter than I expected. It builds air pressure from 0 to 155 in just a few minutes. I like the small footprint of the vertical tank layout, but it is top heavy and could possibly be pulled over by a small child. Overall, I like the unit with the exception of the small round knurled drain valve that is only about an inch above the floor. I get down on my knees and tilt the unit forward to gain access to it.
