Weekly AdWhat's NewTractor Supply AppEarn Rewards with Neighbor's ClubHometown HeroesLife Out Here BlogTSC Exclusive BrandsTop BrandsClearance ItemsBattery FinderOutdoor Power Equipment Parts FinderHitch FinderChief 2 in. Bore x 6 in. Stroke WT Welded Cylinder, 1.25 in. Rod Diameter
Online Only
Item # 1306927
Add this item to unlock free delivery!
Neighbor’s Club Members earn points with purchases.
Online Only
Item # 1306927
Add this item to unlock free delivery!
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.

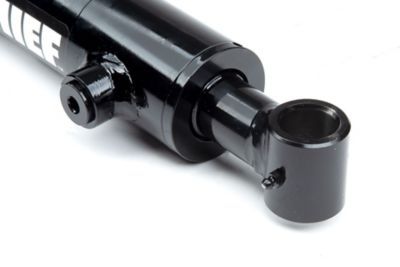

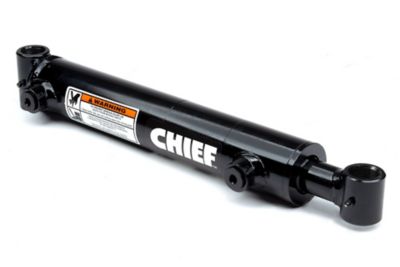

The Chief 2 in. Bore x 6 in. Stroke WT Welded Cylinder is a high-quality welded hydraulic cylinder designed for heavier loads. The rod and base ends of the hydraulic cylinder are welded cross-tubes with grease zerks. Designed for performance, it has a heavy-duty piston as well as a piston stem complete with wear rings to reduce friction, and the screw-in gland is removable from the rod end.
- Welded hydraulic cylinder is intended to be used in double-acting applications
- Piston: ductile iron with wear ring(s)
- Gland: ductile iron, screw-in design with wear ring
- Tube: precision-honed steel
- Rod: ground and polished chromed steel, minimum 75,000 PSI yield
- Butt Plate: steel
- End Mounts: steel cross-tubes with grease zerk
- Spacer Tube: steel on 48 in. stroke and above
- Gland Seal: polyurethane U-cup
- Wiper: polyurethane
- Piston Seal: 755 Hallite with wear ring(s)
- All Other Seals on the hydraulic cylinder are selected and designed for maximum life
- Measures 13 in. retracted and 19 in. extended
- Column load: 9,420 lb.
- Pin diameter of 1 in. and rod diameter of 1.25 in.
| Brand | Chief |
|---|---|
| Country of Origin | Imported |
| Bore Diameter | 2 in. |
| Brand Compatibility | Universal |
| Compatibility | Most applications |
| Extended Length | 6 in. |
| Hydraulic Cylinder Type | Welded |
| Maximum Operating Pressure | 3,000 PSI |
| Maximum Weight Capacity | 9,420 lb. |
| Model Compatibility | Most applications |
| Package Quantity | 1 |
| Pin Diameter | 1 in. |
| Port Size | SAE 8 |
| Primary Material | Steel |
| Product Height | 0 N/A |
| Product Length | 0 N/A |
| Product Weight | 10.58 in. |
| Product Width | 0 N/A |
| Retracted Length | 13 in. |
| Rod Diameter | 1-1/4 in. |
| Single/Double Acting | Double acting |
| Stroke Distance | 6 in. |
| Warranty | 3 Year |
| Manufacturer Part Number | 212675 |
Q: What is the length from pin to pin when the cylinder is fully retracted? What is the length from pin to pin when fully extended? Why isn't this info on each cylinder's listing?
7 years ago- A: When fully retracted it is 13” and the when extended it is 19”.7 years agoHelpful?
Q&As
Q: What is the length from pin to pin when the cylinder is fully retracted? What is the length from pin to pin when fully extended? Why isn't this info on each cylinder's listing?
7 years ago- A: When fully retracted it is 13” and the when extended it is 19”.7 years agoHelpful?
