Camplux 12VDC Diaphragm Water Pump, 1.2 GPM
Camplux 12VDC Diaphragm Water Pump, 1.2 GPM
Item # 148553299
$29.99
Add a protection plan
Powersport plans are not available in CA & MD.
Neighbor’s Club Members earn points with purchases.
$29.99
New Cardmembers earn a $20 Reward‡ with qualifying purchase of $20 or more plus earn 5% in Rewards+ on this purchase. Valid through 8/9/26.
This item is available online only
Out of stock delivering to
37027
Add a protection plan
Powersport plans are not available in CA & MD.
Neighbor’s Club Members earn points with purchases.
This Camplux 12V DC 1.2 GPM Diaphragm Water Pump is ideal for use in any area that requires water transfer. The well water pump is perfect for caravans, boats, motor homes and camping. The utility transfer pump features a self-priming design. The mounting feet are rubber instead of rigid plastic, which provides fairly good vibration isolation.1 Year Manufacturer Warranty
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- CE certified utility transfer pump can be used for general water transfer, spraying, circulation, filtration, dispensing and small rain system or gas hot water system use
- Built-in 35 PSI pressure switch, which automatically turns the well water pump on and off as you turn your tap or nozzle on and off

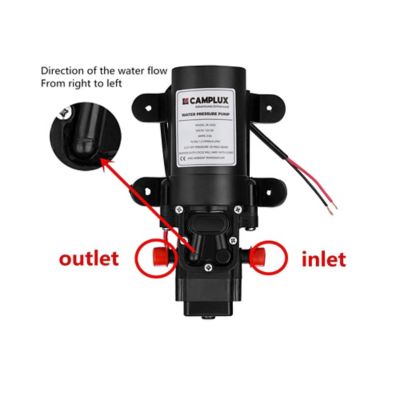

- 1.2 GPM (4.3 LPM) built-in thermal protector with 3/8 in. hose barb ports
- Widely used for garden sprinklers, outdoor shower, water taps in the boat, caravan and motor home and agricultural spraying for farm chemicals and pesticides
- Self-priming allows it to be mounted above tank and able to run dry
- Adjustable CUT-OFF Pressure: default 35 PSI, MAX 45 PSI (It doesn't mean 4.3 LPM jet at 35 PSI)
- Mounting feet are rubber instead of rigid plastic, which provides fairly good vibration isolation
- Camplux Customer Support: Provide comprehensive customer support services, including online services, product warranties, user manuals, troubleshooting guides.
| Brand | Camplux |
|---|---|
| Country of Origin | Imported |
| Amperage | 3.5 A |
| Body Material | Plastic |
| Compatible Pipe Material | Plastic |
| Compatible Well Diameter | 0 in. |
| Discharge Connection | None |
| Discharge Diameter | 8 in. hose barb ports |
| Discharge Rate at 0 ft. | 1.2GPM |
| Discharge Rate at 25 ft. | 1.2GPM |
| Discharge Rate at 50 ft. | 1.2GPM |
| Features | Self Priming |
| Horsepower | 1.2GPM |
| Inlet Connection | Barb |
| Inlet Diameter | 0.4 in. |
| Maximum Flow Rate | 1.2 GPM |
| Maximum Head Lift | 3 in. |
| Maximum Operating Depth | 0 in. |
| Maximum Operating Temperature | 140degF |
| Minimum Operating Temperature | 32degF |
| Power Type | Electric |

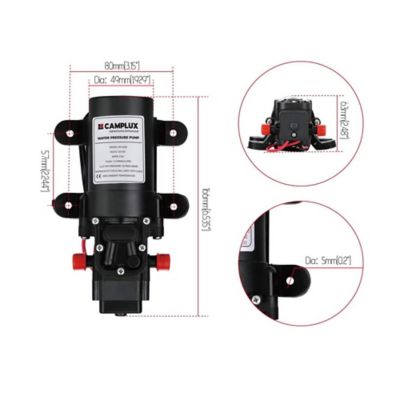

| Product Height | 4.3 in. |
| Product Length | 2.7 in. |
| Product Weight | 1.52 lb. |
| Product Width | 7.4 in. |
| Motor Type | DC Current Machine |
| Voltage | 12V |
| Warranty | 1 Year |
| Manufacturer Part Number | JK-2202 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 12 Questions
Newest questions
Q: Is this an ON DEMAND pump?
2 years ago1 Answer
- A: This is not listed as an on demand pump. Here is a link to the manual for more details: https://media.tractorsupply.com/is/content/TractorSupplyCompany/tsc/product/1/48/55/32/1485532_Man1.pdf2 years agoHelpful?
Q: How many watts does this use per hour?
2 years ago1 Answer
- A: For this information, please reach out to the manufacturer at https://camplux.com/pages/contact2 years agoHelpful?
Q: Does it have an on/ off switch
2 years ago1 Answer
- A: For such a specific inquiry, please contact Camplux directly at https://camplux.com/pages/contact or call +1 844-538-74752 years agoHelpful?
Q: Is this the unit in the off grid version and how long of inlet tube can I go and still work properly
3 years ago1 Answer
- A: Yes, as long as you have 12v battery where you can connect it to. Can connect 10ft hose.3 years agoHelpful?
Q: Can I mount this upside down?
Anonymous3 years ago1 Answer
- A: Hi, Thanks for reaching out. For such a specific inquiry, please contact Camplux directly at https://camplux.com/pages/contact or call +1 844-538-74753 years agoHelpful?
Q: can this be used to drain a drip pan?
3 years ago1 Answer
- A: The pump is for water heaters only.3 years agoHelpful?
Q: How do I suuply power from a home outlet to this pump ?
Anonymous5 years ago1 Answer
- A: You’ll have to purchase an 12v to 110 adapter, preferably with gator clips for easier connection.5 years agoHelpful?
Q: What kind of connectors /hose size fits this pump? What diameter are ports? Same size both sides?
5 years ago1 Answer
- A: 3/8 push on hose + hose clamp5 years agoHelpful?
Q: How many amps does this pull?
5 years ago1 Answer
- A: 3.5 Amps5 years agoHelpful?
Q: What wire size is needed to convert this to a two prong cord?
5 years ago2 Answers
- A: 12 gauge5 years agoHelpful?
1 - 10 of 12 Questions
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 12 Questions
Newest questions
Q: Is this an ON DEMAND pump?
2 years ago1 Answer
- A: This is not listed as an on demand pump. Here is a link to the manual for more details: https://media.tractorsupply.com/is/content/TractorSupplyCompany/tsc/product/1/48/55/32/1485532_Man1.pdf2 years agoHelpful?
Q: How many watts does this use per hour?
2 years ago1 Answer
- A: For this information, please reach out to the manufacturer at https://camplux.com/pages/contact2 years agoHelpful?
Q: Does it have an on/ off switch
2 years ago1 Answer
- A: For such a specific inquiry, please contact Camplux directly at https://camplux.com/pages/contact or call +1 844-538-74752 years agoHelpful?
Q: Is this the unit in the off grid version and how long of inlet tube can I go and still work properly
3 years ago1 Answer
- A: Yes, as long as you have 12v battery where you can connect it to. Can connect 10ft hose.3 years agoHelpful?
Q: Can I mount this upside down?
Anonymous3 years ago1 Answer
- A: Hi, Thanks for reaching out. For such a specific inquiry, please contact Camplux directly at https://camplux.com/pages/contact or call +1 844-538-74753 years agoHelpful?
Q: can this be used to drain a drip pan?
3 years ago1 Answer
- A: The pump is for water heaters only.3 years agoHelpful?
Q: How do I suuply power from a home outlet to this pump ?
Anonymous5 years ago1 Answer
- A: You’ll have to purchase an 12v to 110 adapter, preferably with gator clips for easier connection.5 years agoHelpful?
Q: What kind of connectors /hose size fits this pump? What diameter are ports? Same size both sides?
5 years ago1 Answer
- A: 3/8 push on hose + hose clamp5 years agoHelpful?
Q: How many amps does this pull?
5 years ago1 Answer
- A: 3.5 Amps5 years agoHelpful?
Q: What wire size is needed to convert this to a two prong cord?
5 years ago2 Answers
- A: 12 gauge5 years agoHelpful?
1 - 10 of 12 Questions
Similar Items
-
-
-
Top Rated
-
-
-
-
-
-
-
-
-
Top Rated
Items You May Like
-
-
Top Rated
-
Top Rated
-
-
-
-
Top Rated
-
-
-
-
Top Rated
-
Customers Also Bought
Reviews
1 to 4 of 23 Reviews .
1 – 4 of 23 Reviews
Most Recent
Anonymous
Review 1
5 out of 5 stars.
Good pump for the Price. Runs quiet.
9 months ago
Quiet and works great.
SweepstakesYes
Yes, I recommend this product.
Review 1
1 out of 5 stars.
Not an RV water pump
a year ago
This is not a water pump to use with RV, motorhome, as advertised, small good for maybe a fountain.
No, I do not recommend this product.
Anonymous
Review 1
1 out of 5 stars.
waiting for delivery..
2 years ago
Can not give a review, haven't received the part..
SweepstakesYes
Reviews 2
1 out of 5 stars.
Water pump
2 years ago
Never received it
SweepstakesYes
